250 Rockwell Automation Publication 2080-UM002K-EN-E - March 2019
Appendix C Quickstarts

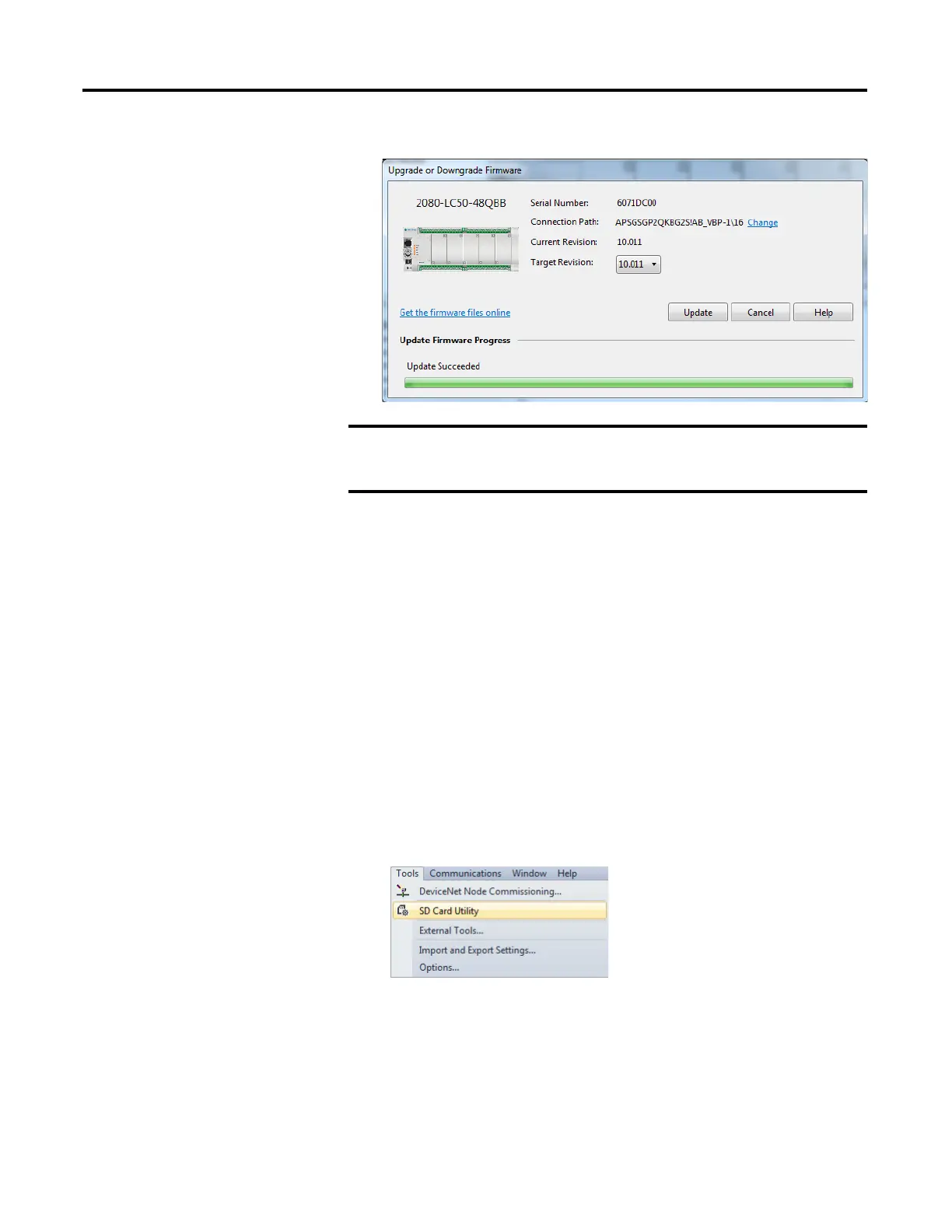

Flash Upgrade From MicroSD Card
With Connected Components Workbench software version 12 or later, and the
microSD card plug-in for Micro800 controllers, you can flash upgrade your
Micro830, Micro850, and Micro870 controller from the microSD card in
addition to using ControlFLASH. This is two-step process – first you have to
transfer the firmware to the microSD card using the SD Card Utility, then you
need to edit the ConfigMeFirst.txt file to initiate the flash upgrade process. See
the following instructions for performing the flash upgrade from the microSD
card.
Step 1 – Transfer the Firmware to the MicroSD Card
1. Launch Connected Components Workbench.
2. Click Tools -> SD Card Utility.
After control flashing the controller, some microSD cards may not be
detected. Remove and insert the microSD card, or power cycle the
controller if this issue is encountered.
