Allen-Bradley SafeZone Mini User Manual

Rockwell Automation Publication 442L-UM005B-EN-P - April 2017 93
Technical Specifications Chapter 11
Scan Plane Origin

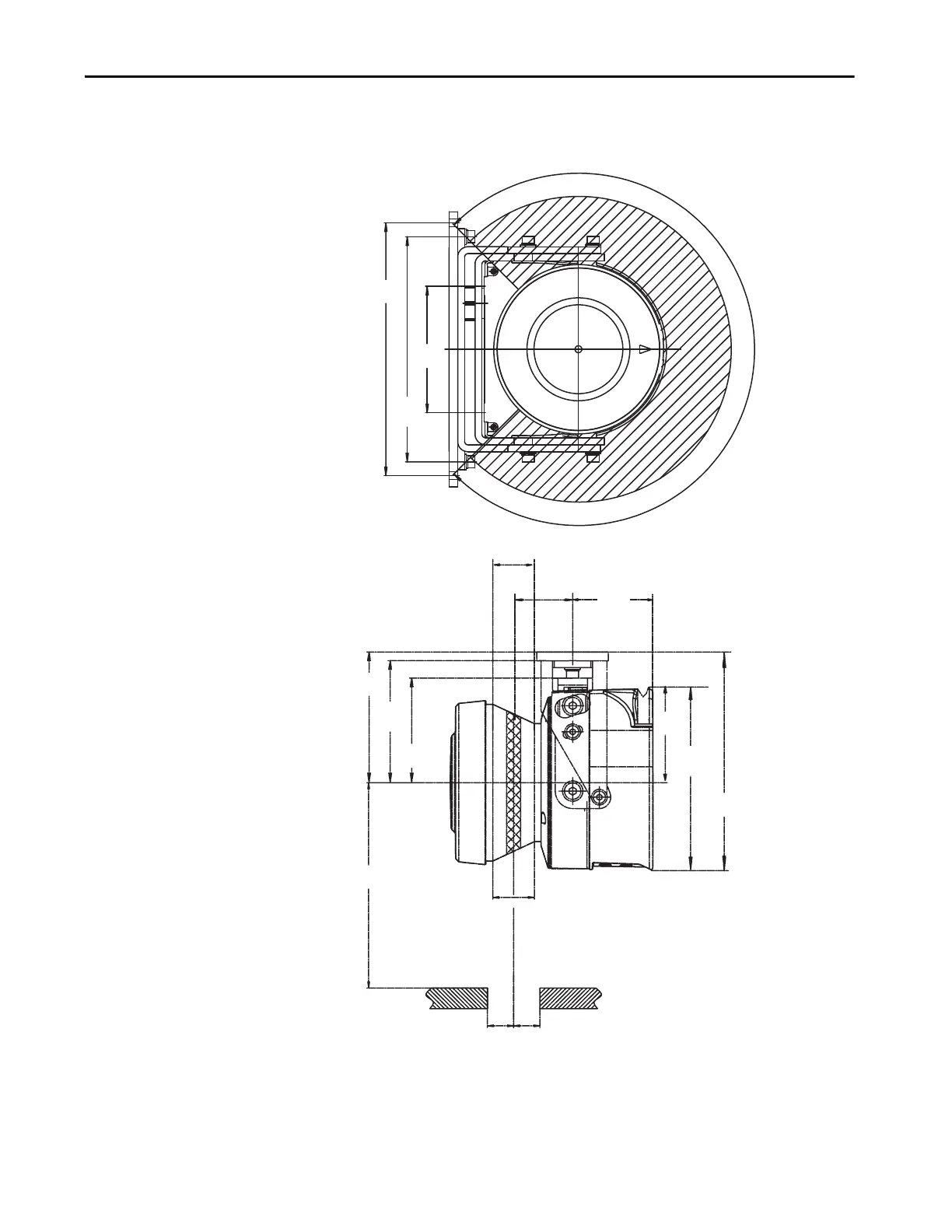

Figure 56 - Scan Plane with Mounting Kit 1, 3, and 4 [mm (in.)]
43.3
(1.70)
Min. 15
73
(2.87)
150
(5.91)
130
(5.12)
270°
36.4
(1.43)
23.8
(0.94)
59.7
(2.35)
74.7
(2.94)
69.7
(2.74)
109.6
(4.31)
54.5
(2.15)
104
(4.09)
74.7
(2.94)
Min. 15

Allen-Bradley SafeZone Mini Specifications

General

Brand	Allen-Bradley
Model	SafeZone Mini
Category	Security Sensors
Language	English
