ENGINE
RS 125

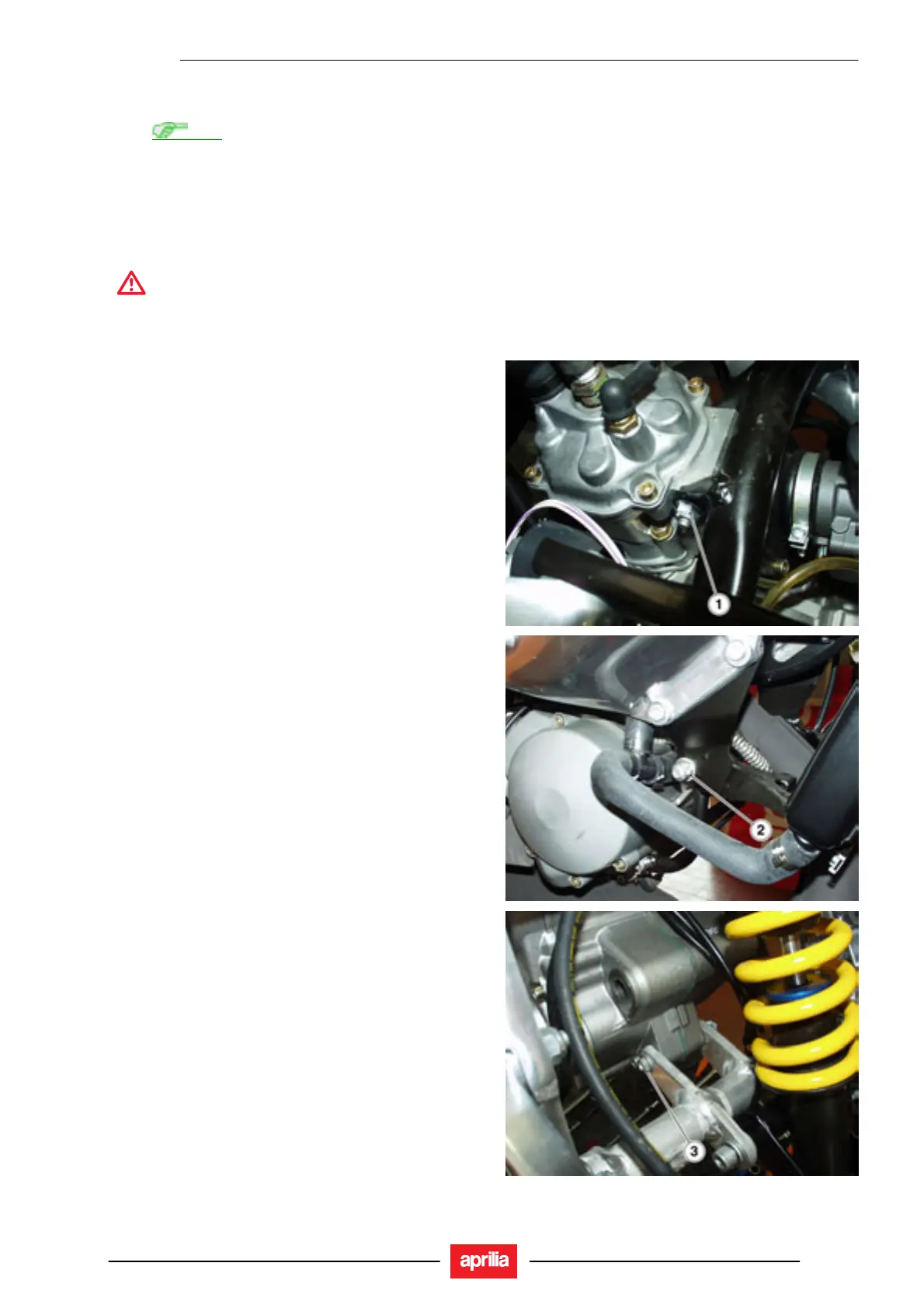

6.2.4. INSTALLING THE ENGINE INTO THE FRAME
Read
1.2.1 carefully.
TORQUE WRENCH SETTINGS
Top engine nut (1) 50 Nm (5.0 kgm)
Front engine nut (2) 50 Nm (5.0 kgm)
Rear engine bolt (3) 22 Nm (2.2 kgm)
Sprocket cover screws (10) 5 Nm (0.5 kgm)
Screw (13) 10 Nm (1.0 kgm)
CAUTION
Handle the engine with care and be careful of
your finger and limbs.
• Shift the engine in small motions until matching the
mounting holes perfectly.
• Insert the top mounting bolt with the washer and
tighten the nut (1).
• Insert the front mounting bolt, fit the washer and tighten
the nut (2).
• Insert the rear mounting bolt (3), fit the washer and
tighten the nut.
6 - 11
