CHASSIS
7 - 58
RS 125

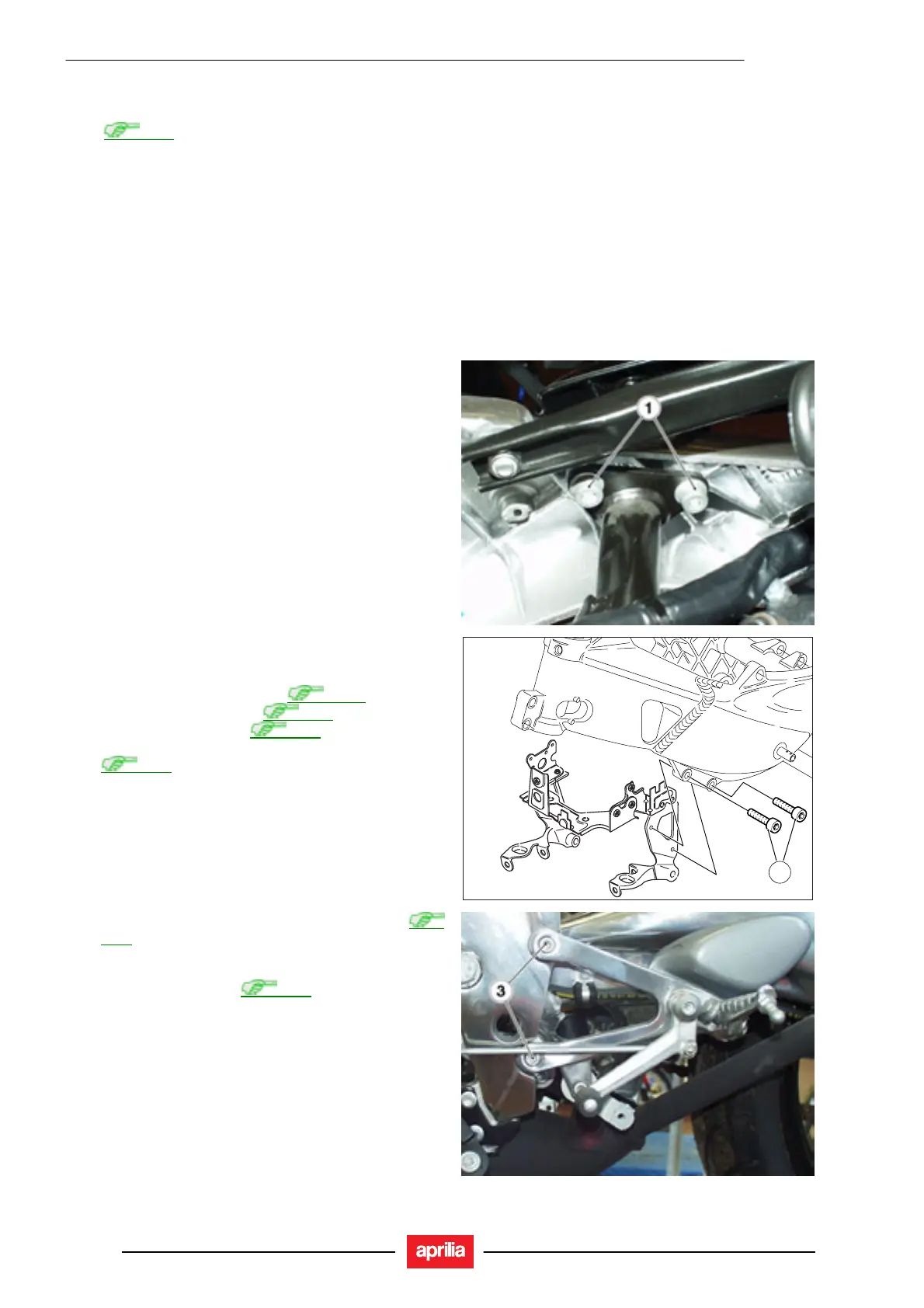

7.4.12. FRAME INSTALLATION
Read
1.2.1 carefully.
TORQUE WRENCH SETTINGS
Upper screws (1) 22 Nm (2.2 Kgm)
Footpeg bracket screws (3) 22 Nm (2.2 Kgm)
Shock absorber to frame (4) 50 Nm (5.0 kgm)
Linkages to frame (5) 50 Nm (5.0 kgm)
NOTE Each procedure is cross-referred to the relevant
section of the manual and some of the operations described
there may not be necessary for the job at hand. To avoid
redundant work, always make sure you really need to
remove a particular component before proceeding.
• Position the frame head plate.
• Working on both sides of the motorcycle, tighten the
two upper screws (1).
• Locate the two radiator brackets to the battery frame.
• Working on both sides of the motorcycle, tighten the
two screws (2) at the front end.
• Install the seat subframe; see
7.4.10.
• Install the side stand; see
7.4.9.
• Install the front end; see
7.9.4.
• Install the instrument panel/front fairing subframe; see
7.4.2
2
• Install the right-hand rider footpeg bracket; see
7.4.4
.
• Position the left-hand rider footpeg bracket.
• Tighten the two screws (3).
• Install the engine; see
6.2.4
