CHASSIS
7 -
49
RS 125

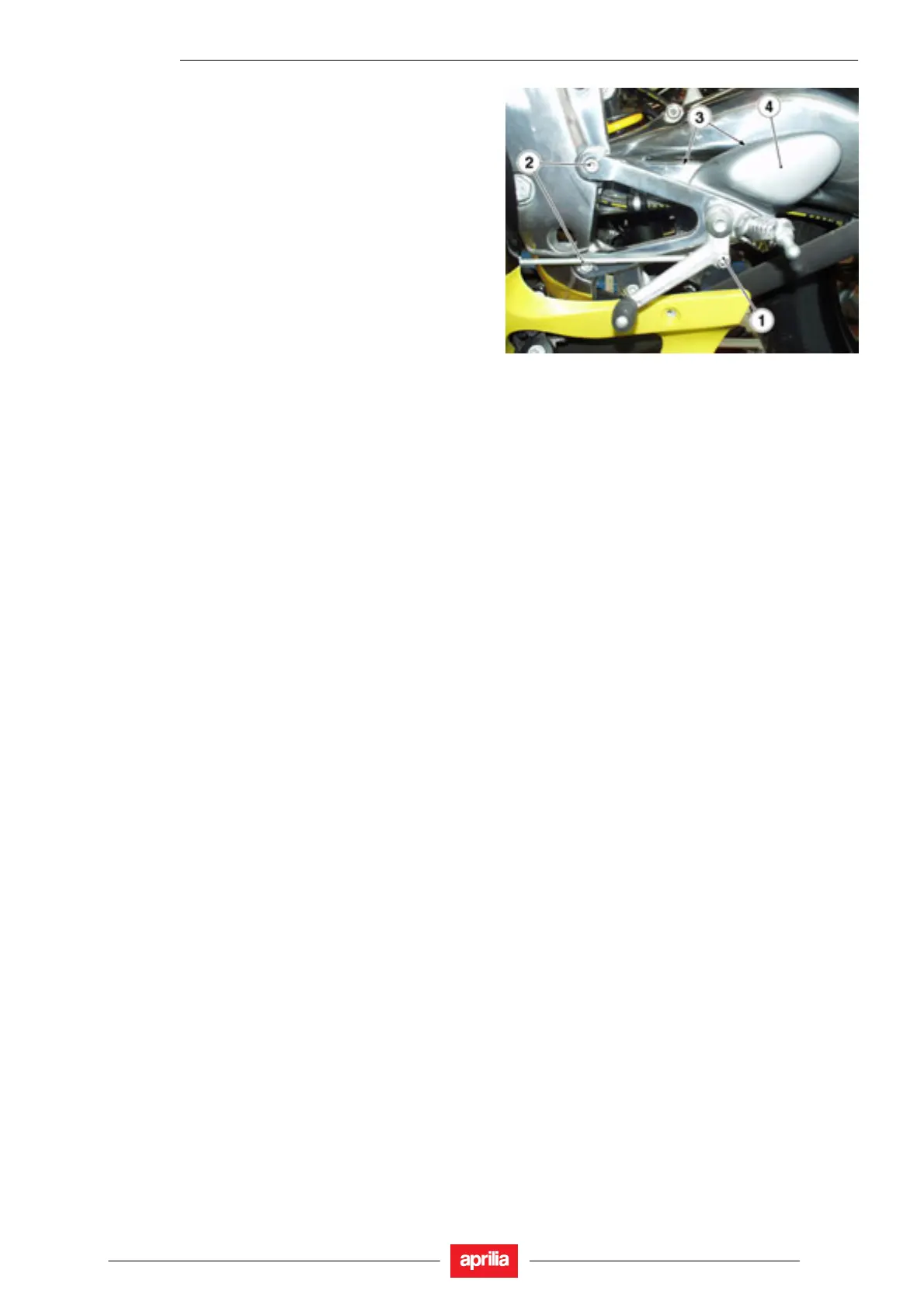

7.4.5.
REMOVING THE LE
FT-HAND RIDER FOOTPEG
BRACKET
TORQUE WRENCH SETTINGS
Nut (1)
5 Nm (0.5 Kgm)
Screws (2)
22 Nm (2.2 Kgm)
Screws (3)
3 Nm (0.3 Kgm)
•
Undo and remove the nut (1).
•
Release and remove the t
wo screws (2).
•
Remove the rider footpeg bracket complete
with gear
shift lever and footpeg.
•
If needed, remove the guard (4) and re
lease and
remove the two inner screws (3).
