CHASSIS
7 - 48
RS 125

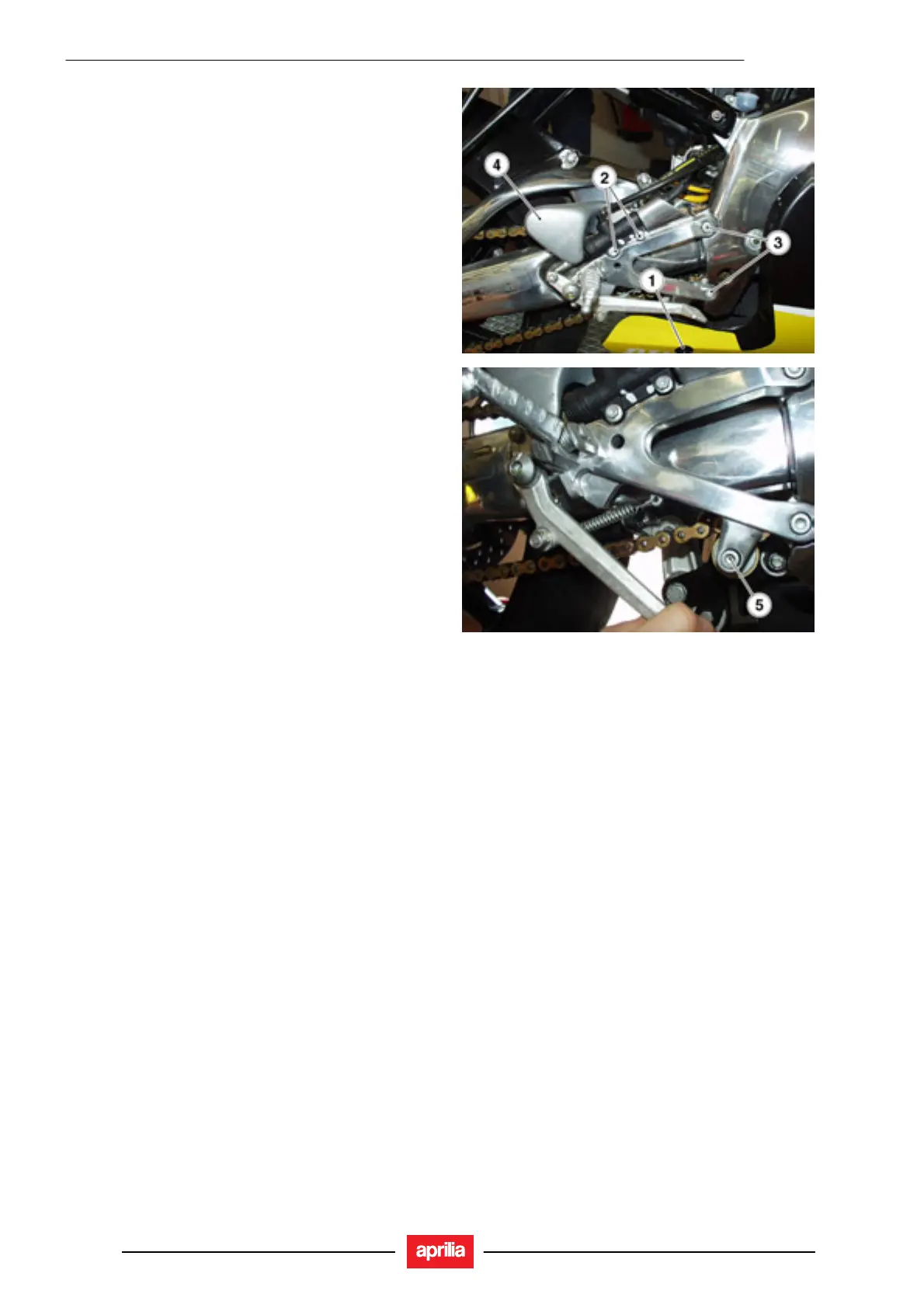

7.4.4. REMOVING THE RIGHT-HAND RIDER
FOOTPEG BRACKET
TORQUE WRENCH SETTINGS
Screw (1) 3 Nm (0.3 Kgm)
Screws (2) 10 Nm (1.0 Kgm)
Screws (3) 22 Nm (2.2 Kgm)
Screw (5) 2 Nm (0.2 Kgm)
• Release and remove the screw (1).
• Release and remove the two screws (2) and collect
nuts, bushes, washers and guard (4).
• Release and remove the two screws (3).
• Remove the rider footpeg bracket together with brake
master cylinder actuating rod, brake lever and rider
footpeg.
• If needed, unscrew the screw (5) and remove the chain
tensioner.
