ELECTRICAL SYSTEM
8 - 13
RS 125
8.7. SENSORS AND REV COUNTER

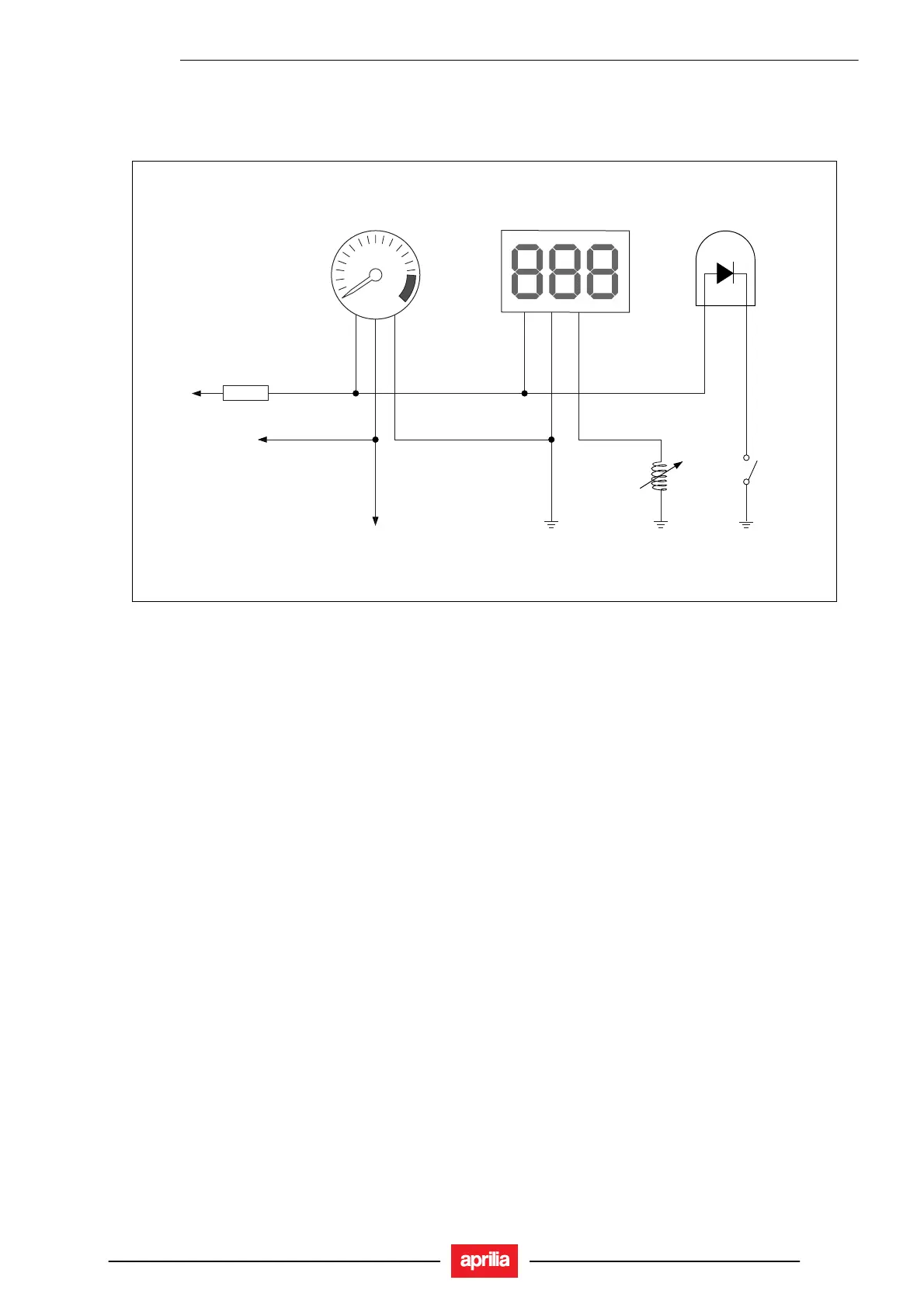

8.7.1. SENSORS AND REV COUNTER CIRCUIT
15 A
V
Bi/Vi
CDI
V
B
V
Vi
Bi/N
COIL
THERMISTOR
OIL
LEVEL
SENSOR
OIL WARNING
LIGHT (LED)
WATER T. DISPLAYREV COUNTER
KEY
TROUBLESHOOTING
•
Check the condition of the 15A fuse.
•
Check wiring connection.
Rev counter
•
Fit a substitute rev counter known to operate properly.
