APRILIA RS 125 User Manual

ELECTRICAL SYSTEM
8 - 24
RS 125

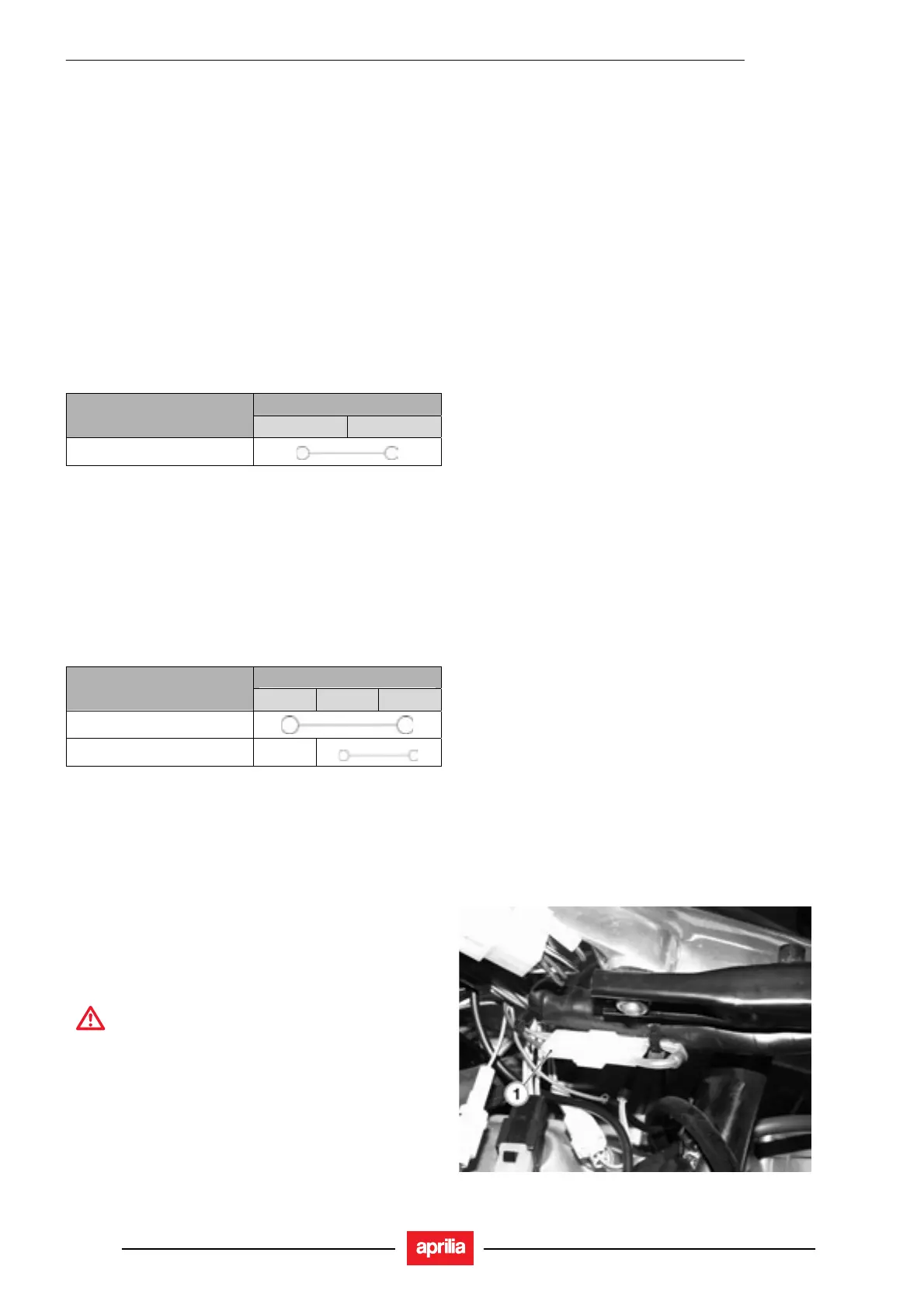

TEST READINGS
Check for continuity across the contacts using a multimeter
set to the ohm range. Refer to the diagrams below.
Neutral light switch test
Wires
Pos.
SCREW V/G
Neutral
Stand test
Wires
Stand position
M V N
Down
Up
DIODE TEST
To test diode operation:
•
Disconnect the two-way connector (1) (coloured
white).
WARNING
Make sure to refit the connector (1) to the
matching connector on assembly
.
Place a multimeter in the diode-test mode and measure
across the two male terminals accommodated inside the
diode as shown in the diagram.
