ELECTRICAL SYSTEM
8 - 27
RS 125
TAIL LIGHT BULBS
NOTE
Check the BRAKE light switches for proper operation
before changing a bulb; see 8.9.1.
•
Place the motorcycle on the stand.
•

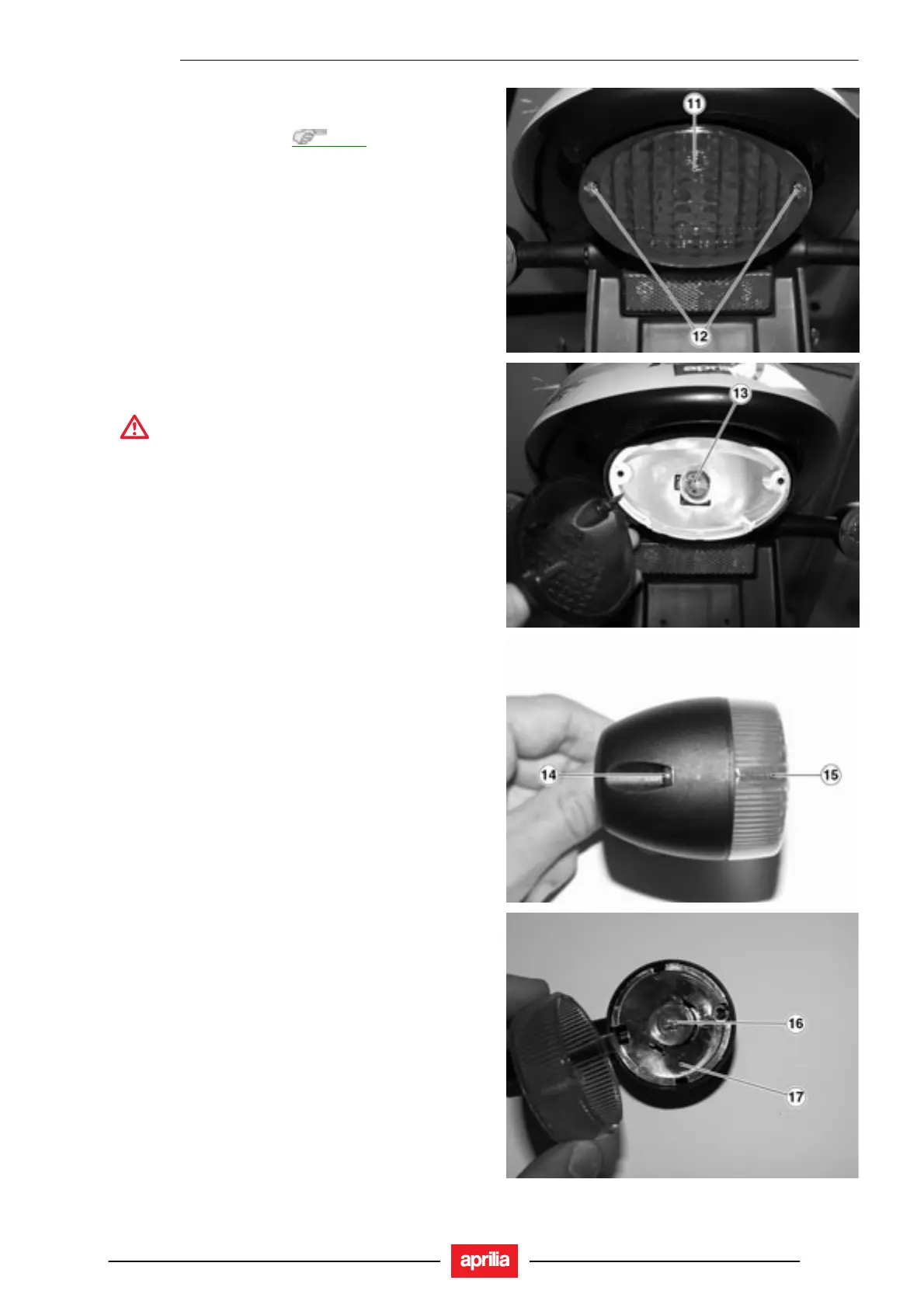

Release and remove the two screws (12).
•
Remove the guard (11).
•
Push the bulb (13) gently and twist anti-clockwise.
•
Extract the bulb (13).
WARNING
Fit the bulb into the bulb holder making sure
the two bulb pegs locate into the slots in the
bulb holder.
•
Fit a new bulb of equal rating in the correct position.
NOTE
On refitting, make sure the guard locates correctly into
its seat. Tighten the screws (12) carefully and do not
overtighten to avoid damage to the guard.
FRONT AND REAR INDICATOR BULBS
•
Place the motorcycle on the stand.
•
Release and remove the screw (14).
NOTE
Be careful when removing the guard, or the locating
tab might break off.
•
Remove the guard (15).
NOTE
On refitting, make sure the guard locates correctly into
its seat. Tighten the screw (14) carefully and do not
overtighten to avoid damage to the guard.
Push the bulb (16) gently and twist anti-clockwise.
•
Extract the bulb.
NOTE
Make sure the locating pegs locate properly into the
slots in the bulb holder when fitting the bulb.
•
Fit the new bulb of equal rating in the correct position.
NOTE
In the event the bulb holder (17) comes off, refit it
correctly with the slotted open end matching the screw hole.
