Rev D CHP Max5000 Chassis (Front Fiber Version) 3-17
Configuration > Reset to Factory Defaults – Selecting this function sets all
user-selectable options to their factory defaults.
Configuration > Reboot Module – Selecting this function causes the SMM-2 to
reboot.
Faults > Alarm Configuration – Selecting this function displays the SMM-2 Alarm
Configuration Window (refer to Figure 3.9), which provides a a variety of information
regarding the alarm parameters including alarm thresholds.
Faults > Active Alarms – Selecting this function displays a list of the SMM-2’s current
alarms.
Reset Configuration – Select this function only after replacing the SMM-2 with a
different type of module. Do not select this function if you are replacing the SMM-2
with a different SMM-2.

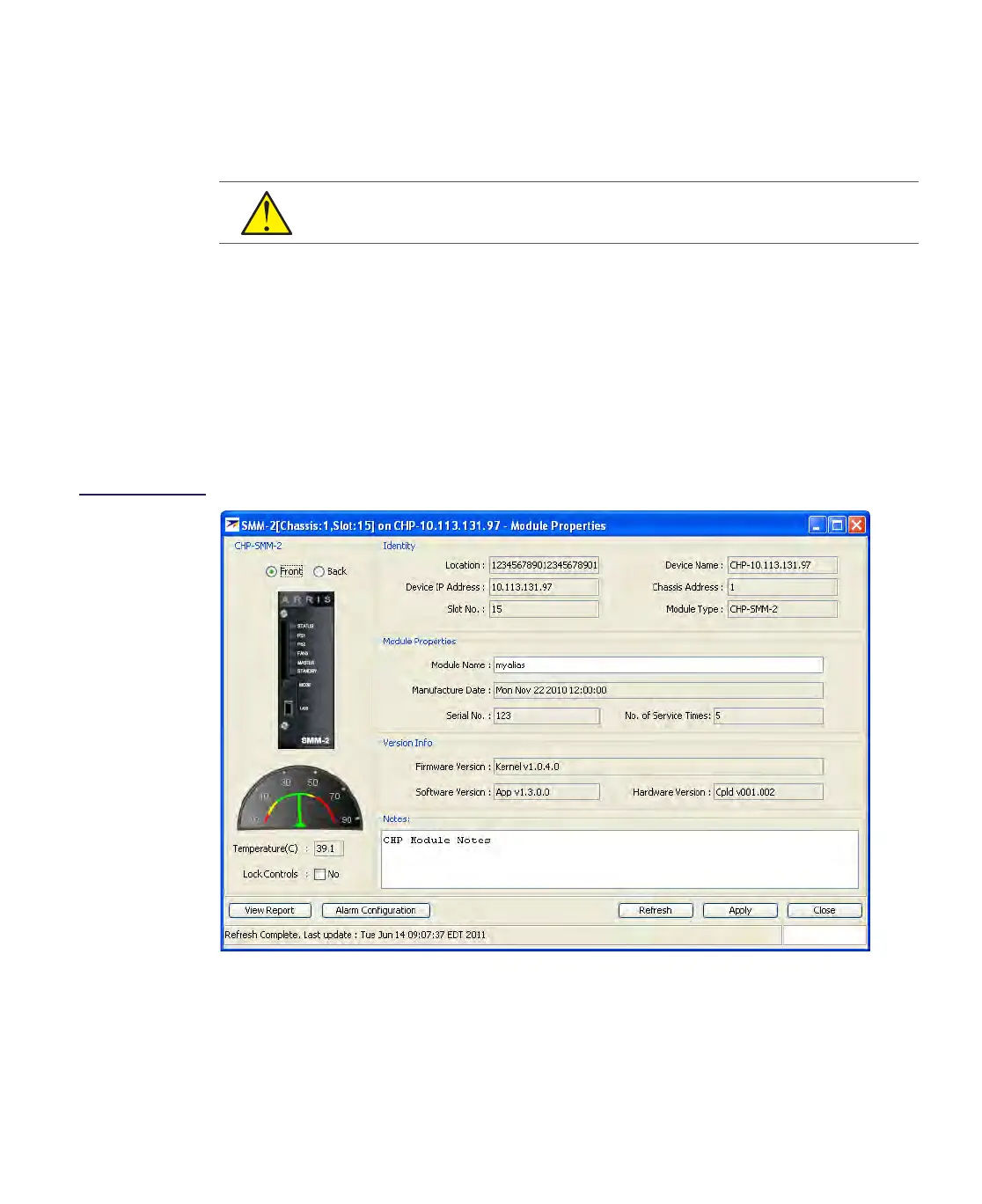

Figure 3.7
SMM-2 Module
Properties Window
CAUTION Rebooting a card is a service-affecting operation.
