FlexiROC T30 R 3 Controls and Instrument
16 No: 2969809547.1.2969824267 en-US
3.1 Pressure Gauge Cluster
!
NOTE: The pressure gauges must be under supervision during drilling.

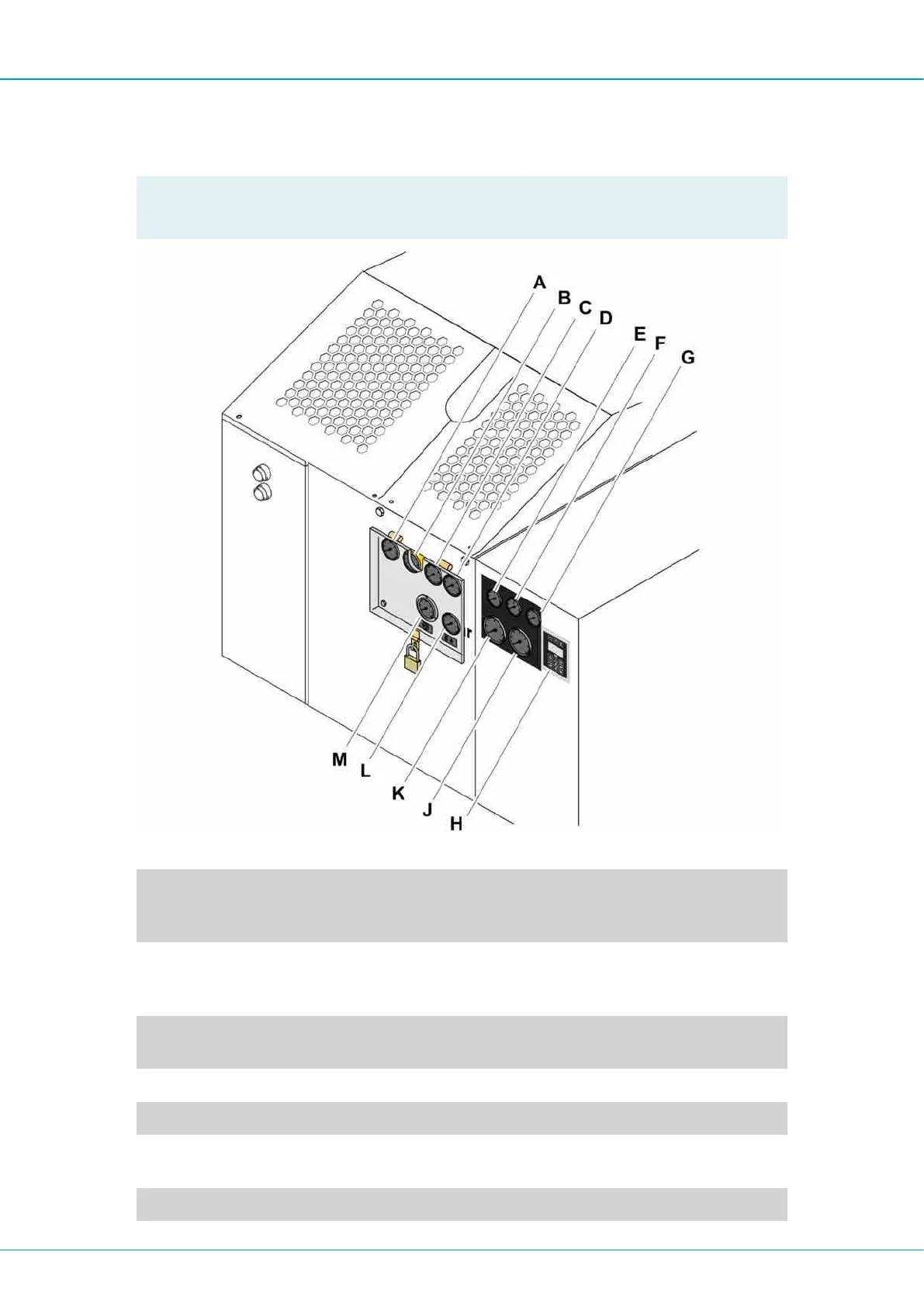

Pressure Gauges
A Pump pressure, pump 1 (Percussion, tramming motors, feeder
and control pressure too high, and low
speed to tramming motor)
B Pump pressure, pump 2 (Rotation motor, dust collector motor,
positioning cylinders, rod handling, and
winch)
C Pump pressure, pump 3 (Dust collector motor, positioning cylin-
ders, rod handling, and winch)
D Drill feed pressure
E Percussion pressure
F Feed pressure (for COP 16XX) or covered (for COP
12XX)
G Flushing air pressure
