FlexiROC T30 R 3 Controls and Instrument
21 No: 2969809547.1.2969824267 en-US

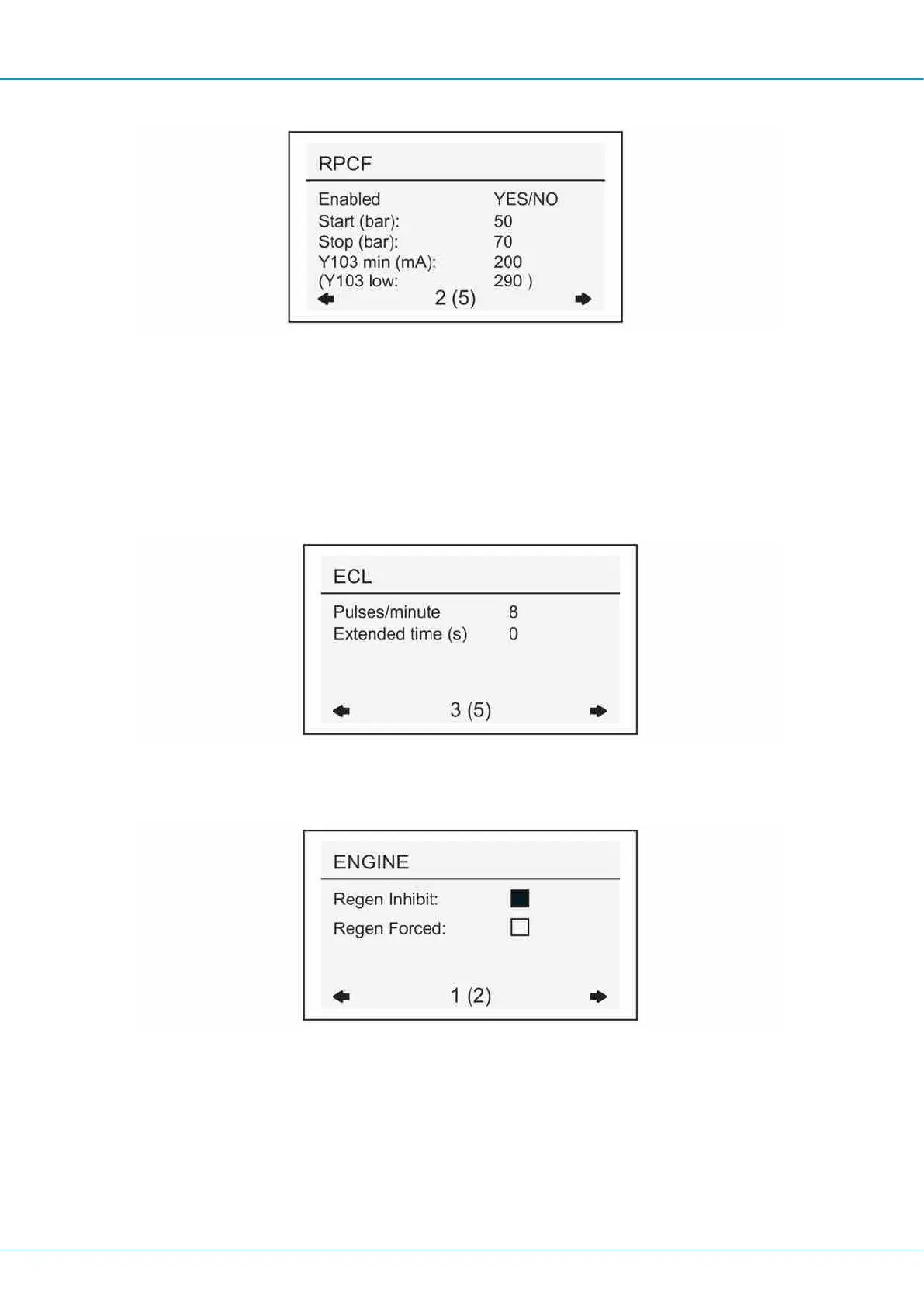

Under RPCF (Rotation Pressure Control Feed), the following settings can be made:
n Enabled: If the setting is changed to NO, then the RPCF function is deactivated.
n Start (bar): The setting for rotation pressure at which the drill feed pressure starts to
drop.
n Stop (bar): The setting for rotation pressure at which the drill feed pressure must be
Y103 min. Higher rotation pressure the feed pressure does not drop further.
n Y103 min (mA): Minimum setting for current for Y103 that activates the valve.
n (Y103 low): The setting in brackets is collaring-feed pressure. It cannot be adjusted
here, but is shown as comparison with the minimum setting for feed pressure.
Under ECL (Electric Controlled Lubrication), the following settings can be made:
n Pulses/minute: Pulses per minute
n Extended time: Total time for pump cycle.
The following settings can be made under Engine:
n Regen Inhibit: Blocked regeneration
n Regen Forced: Forced regeneration
3.2.3 Diagnostics Submenus
The Diagnostics main menu contains the following submenus:
