Atlas Copco FlexiROC T30 R User Manual

FlexiROC T30 R 4 Operation
81 No: 2969809547.1.2969824267 en-US
4.4.4 Preparing for Drilling
1.

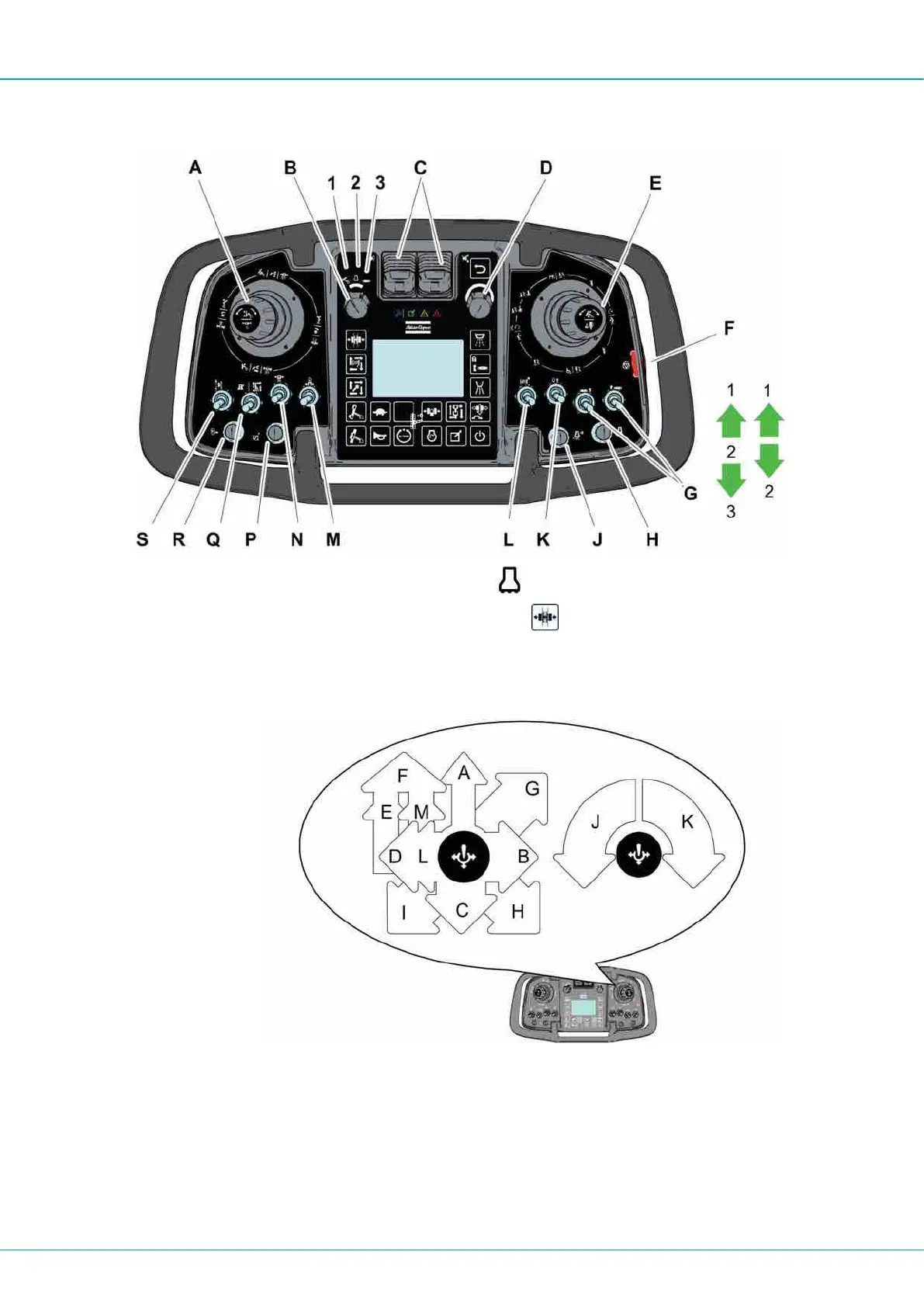

Put mode switch (B) in drilling position
(2).
2.
Enable the sleeve retainer with touch button
if a drill rods with loose sleeve is
used.
3.
Position the drill rods into drill center with the left multi-function lever (A).
4.
Move the right multi-function lever (E) to section (C) to obtain hard grip.
5.
Screw in by moving the right multi-function lever to sector (G).
6.
Open the drill rod support with switches (M) and (N).
7.
Release the left multi-function lever to neutral. Then move the drill rods through the
drill rod support with the right multi-function lever (E) which is moved to section (A).
