13. Manual touch-screen system
This guide describes the available features and how to use the touch screen located on the front panel control units
ABT-CU-8LCD and ABT-CU-11LCD.
1

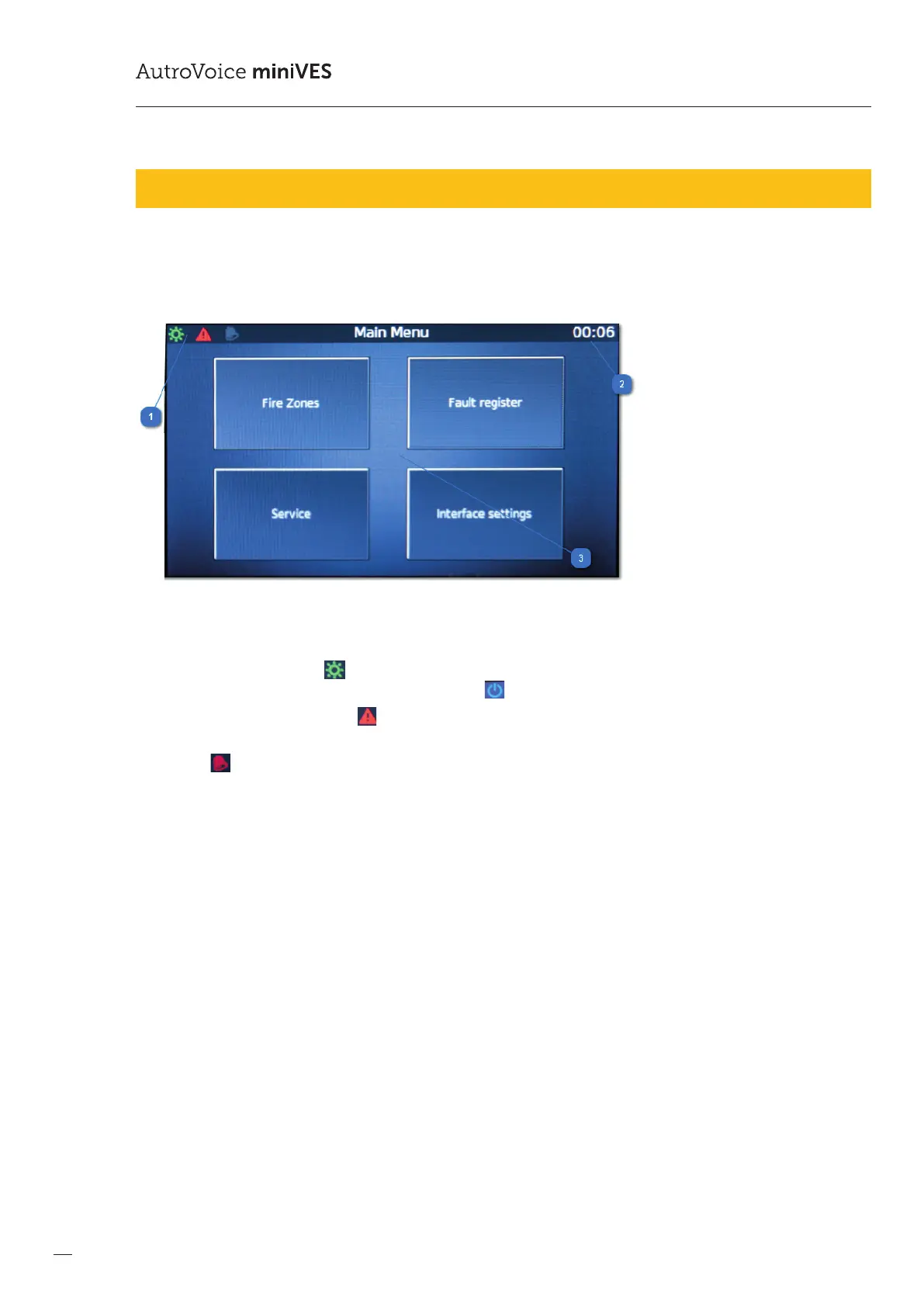

System Status Icons
In the upper left area of the screen the information contained in what state system AutroVoice miniVES is currently.
When only the green power icon is displayed that indicates that the system is in normal operation (no alarm) and not detected
any faults. If green power icon is replaced by blue color icon that indicates that the system is in standby mode.
Icon triangle with an exclamation mark indicates that internal mechanisms to monitor the state of the system detected damage.
Details of the fault are available after selecting windows Fault register.
Icon red bell means that the system is in alarm mode, and only audio signals Priority Emergency may be active.
2
The eld displays the time the internal system clock
3
The four main icons to navigate between the dierent functions available from the home screen
