7
Workshop Manual
Smart Tachograph EFAS-4.10/4.11
Chapter 4 Control elements and displays
4.1 The EFAS tachograph
The EFAS has a two-line LCD display, two slots for tachograph smart-cards, a front-mounted interface for calibration and down-
loading, a printing module, and 6 operating keys. It can be installed in a standard-sized car stereo slot. Warning alerts can be
emitted optically and acoustically.
The EFAS is activated when
y the vehicle’s ignition is turned on,
y by signals from the motion sensor,
y when a tachograph smart-card is inserted,
y when any of the keys is pressed or
y through an FMS download,
y at the end of a 45-minute drive break.
To remove the tachograph card, the vehicle must be stationary (0 km/h) and the ignition turned on (level 1). At the latest
4minutes after the ignition is switched o, EFAS switches o automatically. If a key is pressed after turning o the ignition, the
shutdown of EFAS is delayed by up to 4 minutes. The time for EFAS to switch o after switching o the ignition can be congured.
The following sections describe the EFAS device’s control elements and displays:
y Keys (section 4.2)
y Card readers (section 4.3)
y Display (section 4.4)
y Warning light and acoustic signals (section 4.5)
y Printer (section 4.6)
y Service interface (section 4.7)
y Working with menus (section 4.8)
y Using the tachograph smart-cards (section 4.9)
4.2 Keys
The EFAS is operated using the six keys on the front of the device:

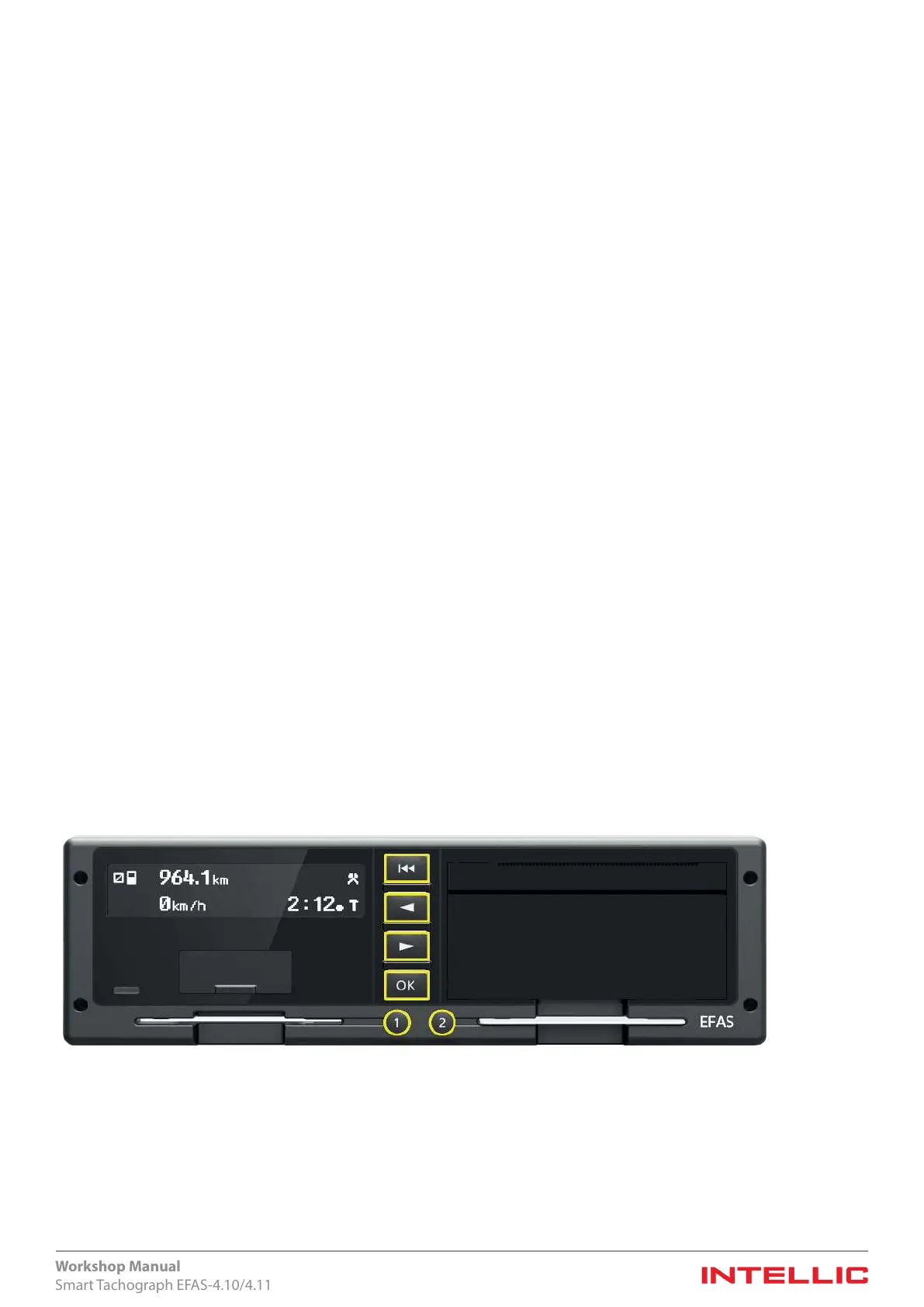

Figure 1 — Keys
