Workshop Manual
Smart Tachograph EFAS-4.10/4.11

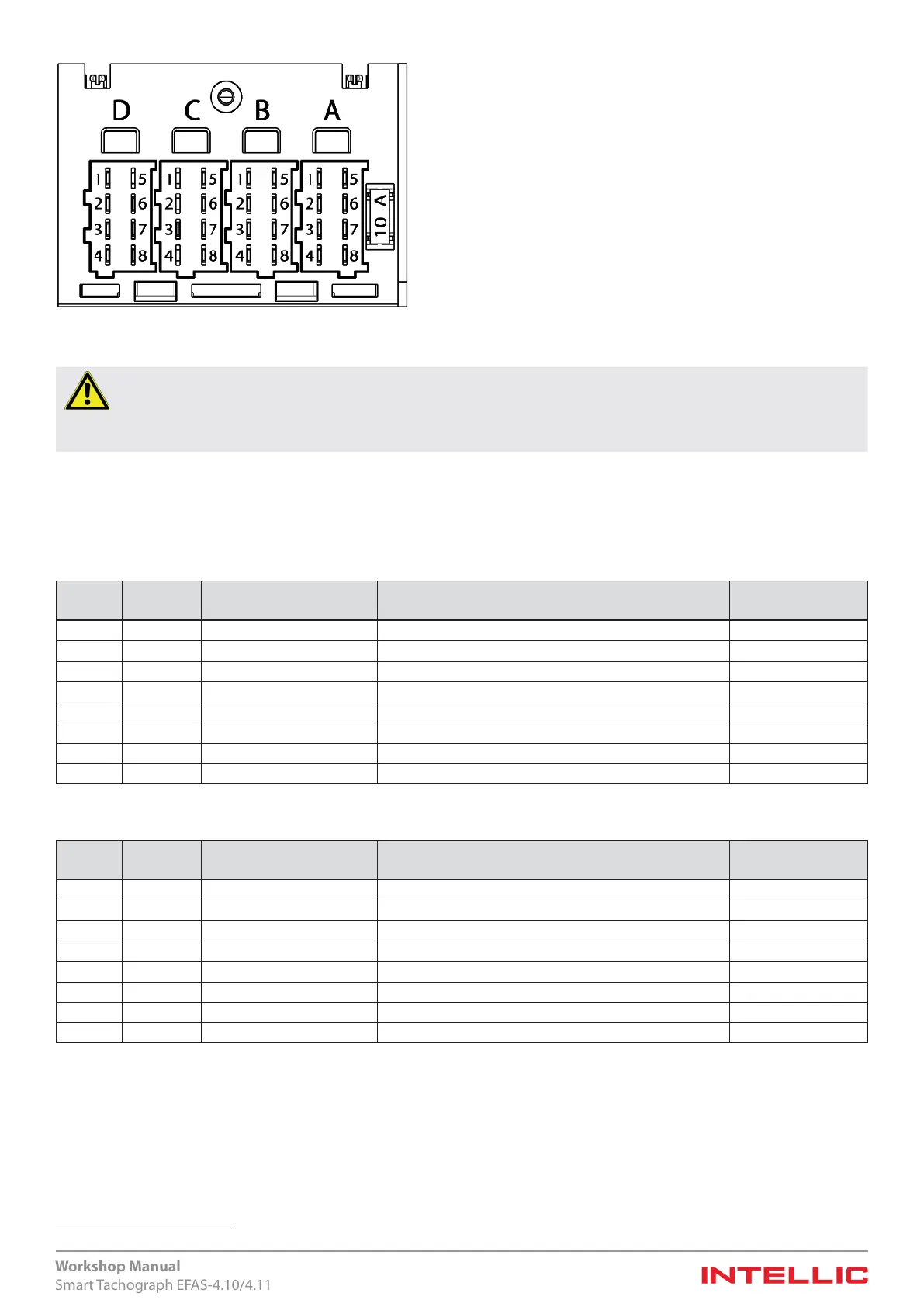

Figure 9 — Connector panel
Warning The lines A5 and A6 must be wired for the correct operation. If the line A6 is not wired in the vehicle-side con-
nector cable, a connection (bridge) between A5 and A6 must be produced. Aected are especially vehicles with
12 V power supply.
In EFAS-4.10 (OE version) the following contacts are without internal connection: B5-B8, C1-C4, D3- D7.
6.2.2 Pin assignment for the device
Table 6 — Pin assignment plug connector A
Contact Direction Function Comment Cable
cross-section
A1 - Continuous voltage (+) Battery positive, terminal 30 1 - 2.5 mm
2
A2 In Instrument lighting Control input lighting 1 - 2.5 mm
2
A3 - Ignition Switched positive, terminal 15 1 - 2.5 mm
2
A4 Bi CAN_H (A) High signal CAN-bus A (to the instrument panel) 0.35 - 1 mm
2
A5 - Continuous voltage (–) Battery negative, terminal 31a 1 - 2.5 mm
2
A6 - Ground Vehicle ground, terminal 31 1 - 2.5 mm
2
A7 - CAN_GND (A) Ground CAN bus A 0.35 - 1 mm
2
A8 Bi CAN_L (A) Low signal CAN-bus A (to the instrument panel) 0.35 - 1 mm
2
Table 7 — Pin assignment plug connector B
Contact Direction Function Comment Cable
cross-section
B1 - motion sensor supply (+) Positive pole, motion sensor power supply 0.5 - 1 mm
2
B2 - motion sensor supply (–) Negative pole, motion sensor power supply 0.5 - 1 mm
2
B3 In Real-time motion sensor Real-time speed signal from motion sensor 0.35 - 1 mm
2
B4 Bi motion sensor data signal Encrypted data communications signal 0.35 - 1 mm
2
B5
4
n/a - - - Not Used
B6
4
Out Speed signal Output for speed pulses 0.35 - 1 mm
2
B7
4
Out Speed signal Output for speed pulses 0.35 - 1 mm
2
B8
4
Out 4 pulses/m Standardized output for speed pulses 0.35 - 1 mm
2
4 In the hardware of EFAS-4.10 this connection is internally unconnected
