Workshop Manual
Smart Tachograph EFAS-4.10/4.11
LED Tone/series of tones Meaning / Operating state
Blinks RED 1x long, 2x short Event or malfunction message as per REG (EC) No. 1360/ 2002. LED blinks for a
maximum of 30 seconds until the cause of the alarm is acknowledged with OK.
Alarm output pin D4 is set to active.
RED 2x short, 1x long In combination with the text display “Service”. There is a serious defect with
the hardware. The tachograph must be taken to a workshop for repair and may
have to be replaced.
Blinks RED 1x long
Individually programmed speed has been exceeded >> or advance warning of
maximum speed limit being exceeded with “> EF-Info <“ in the display.
Blinks RED 2x 1x short Alarm issued after incorrect input.
Acknowledgments, Input aids (information)
- 1x short Acknowledgment signal for successful input.
- 1x long Incorrect operation. Occurs when a key is pressed that is not supported in the
current dialog.
Blinks RED 1x short
(or several times)
Prompt for required user input.
Key click
- 1x short/quiet Key click when key is pressed
4.6 Printer paper container
With the built-in printer, the times recorded by the tachograph can be printed out, among other things. The paper container
can be removed to rell a roll of paper.

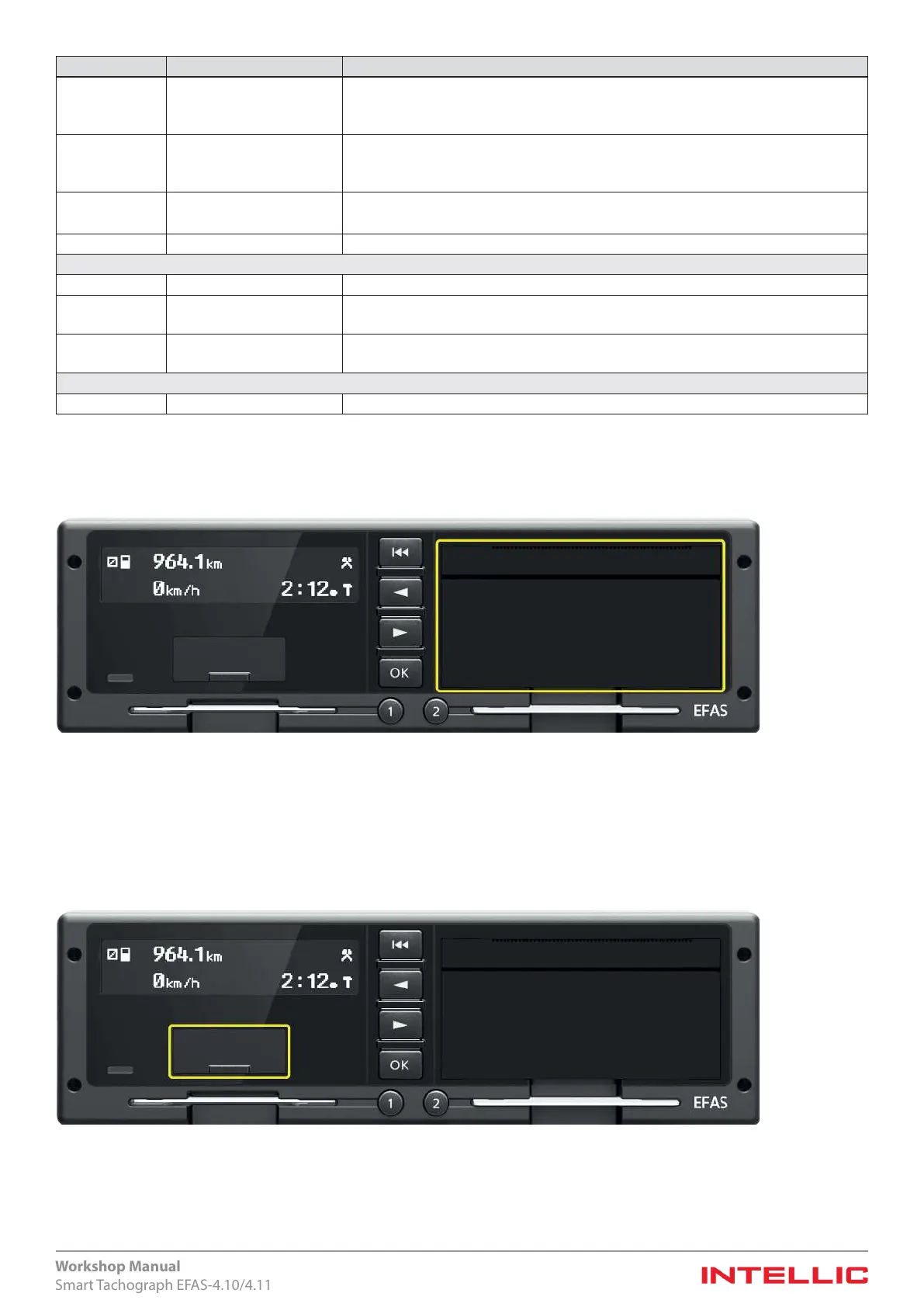

Figure 5 — Printer paper container
Details on removing the printer paper container and inserting the printer-paper roll are available in section 7.6.
4.7 Service port
The service port located on the front panel of the EFAS tachograph is covered with a rubber cap. The port has two independent
components; a calibration interface and a download interface.
Figure 6 — Service port
The calibration interface serves the calibration, conguration and diagnostics of the EFAS tachograph. The download interface
is used to download the data stored in mass memory or on the inserted driver smart-card. As a special aspect of the EFAS device,
the download interface supports conguration and diagnostic services. This requires the use of the EFAS Service Tool.
