CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY

Confidential

4-10

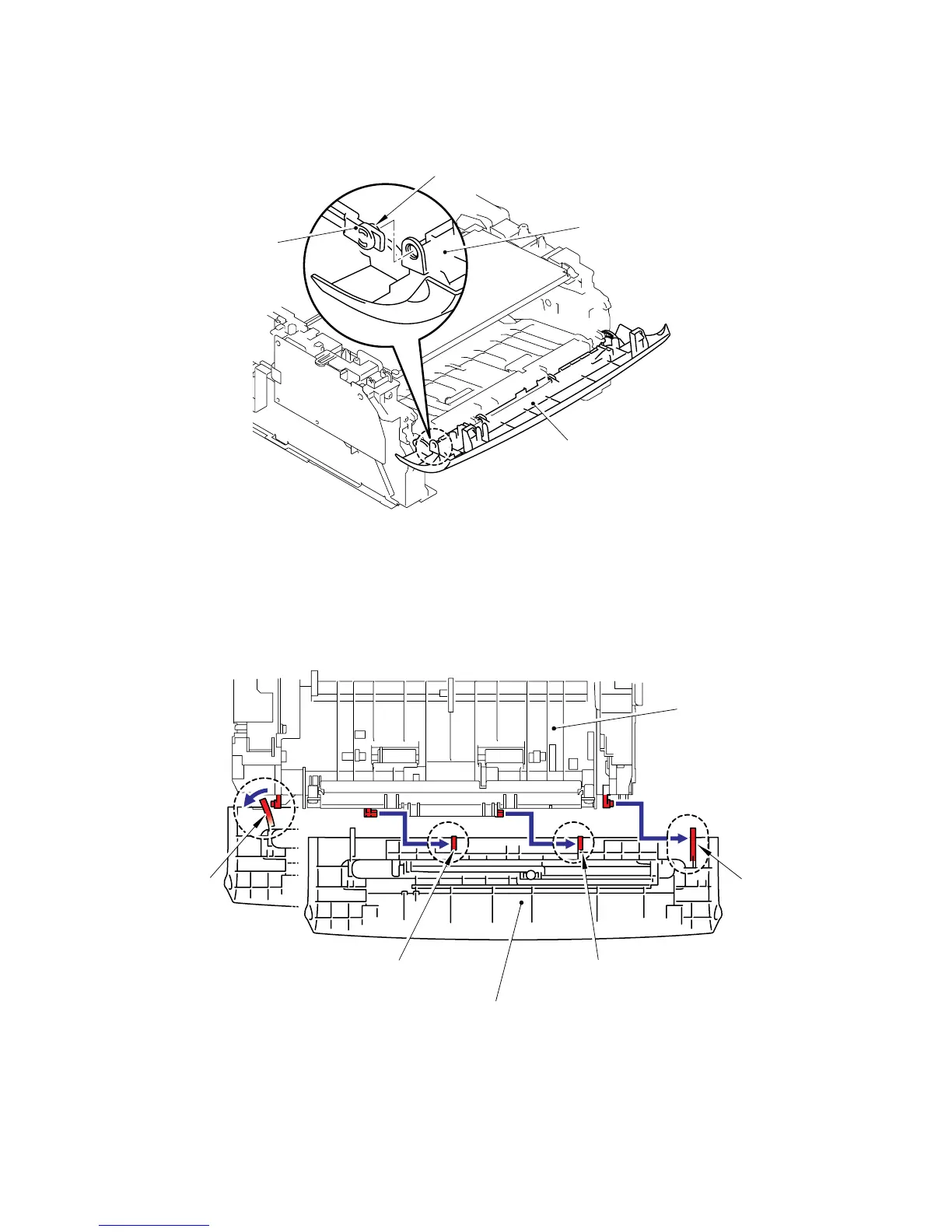

3.9 Front Cover

(1) Release the hook of the drive release cam from the front cover ASSY.

Fig. 4-15

(2) Release the hook “A” on the front cover ASSY from the chute.

(3) Slide the front cover ASSY to the direction of the arrow shown in the figure below to

remove it.

Fig. 4-16

Front cover ASSY

Drive release cam

Hook

Front cover ASSY

Hook

Hook “A”

Chute

Hook
