CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
Confidential
4-40

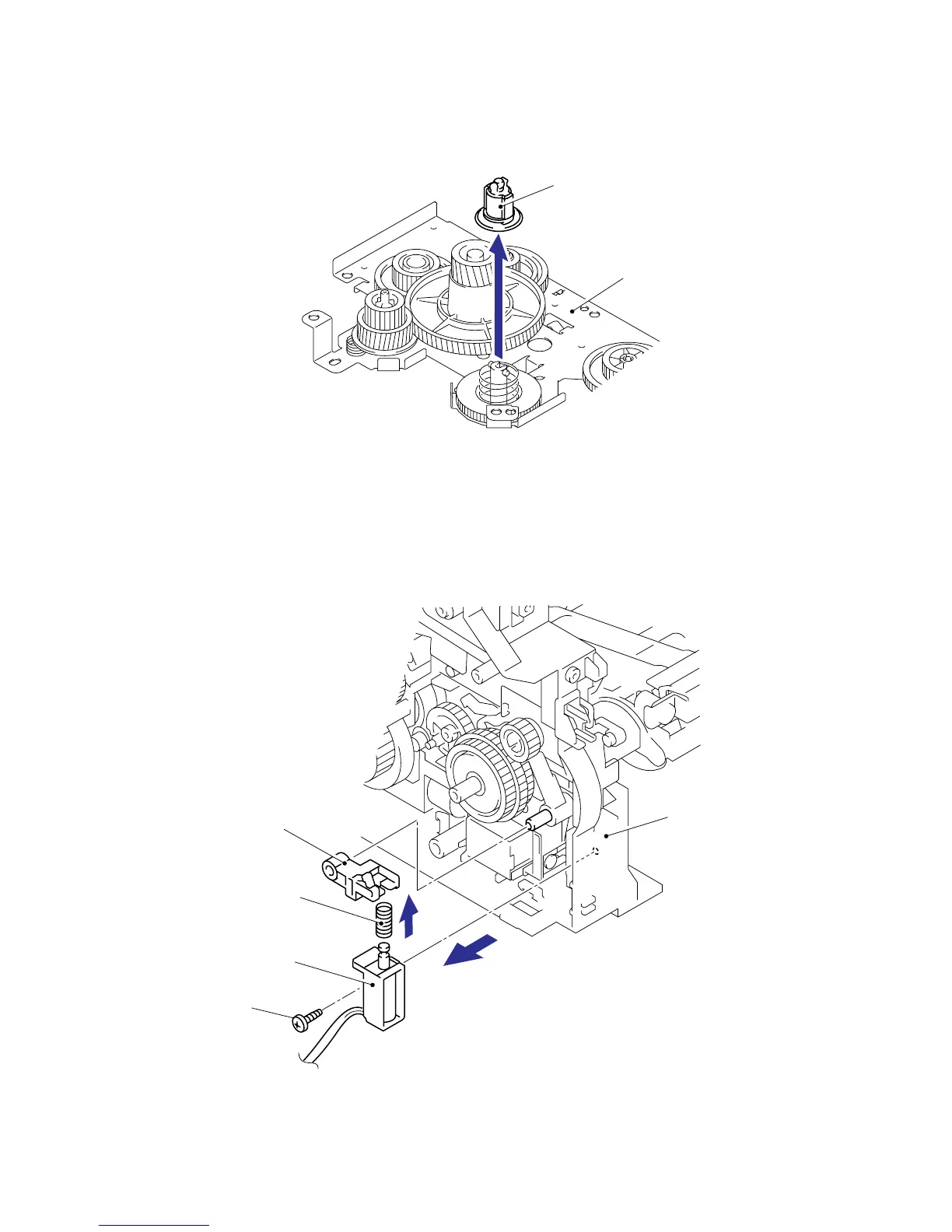

3.30 Develop Joint
(1) Remove the develop joint from the gear plate calking ASSY.
Fig. 4-68
3.31 P/R Solenoid ASSY
(1) Remove the bind B M3x10, taptite screw.
(2) Remove the P/R solenoid ASSY, the P/R solenoid lever and the solenoid release spring
P/R.
Fig. 4-69
Develop joint
Gear plate calking ASSY
Main frame L
Taptite, bind B M3x10
P/R solenoid ASSY
Solenoid release spring P/R
P/R solenoid lever
1
2
To Next Page
