HL-2030/2040/2070N SERVICE MANUAL
Confidential
4-51

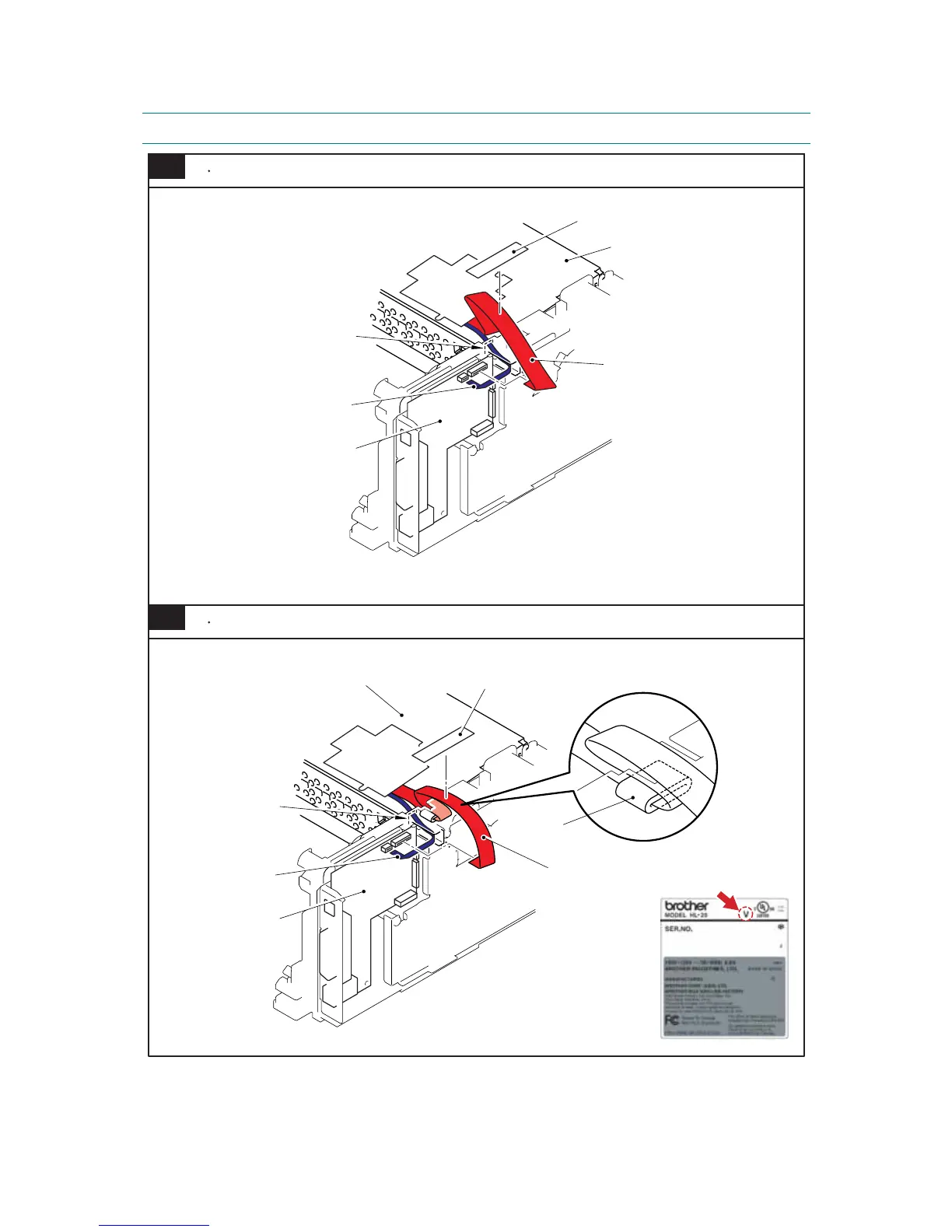

8. HARNESS ROUTING
Laser unit
1
2
Laser unit
LD harness 5P
Polygon motor harness
Tape
Hole
Main PCB
Laser unit (with the "V" marking character on a rating label)
Laser unit
LD harness 5P
Polygon motor harness
Tape
Hole
Main PCB
There is the "V" marking
character on a rating label.
Core
