CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
Confidential
4-24
3.14 SW Key / Panel PCB
(1) Remove the SW key.

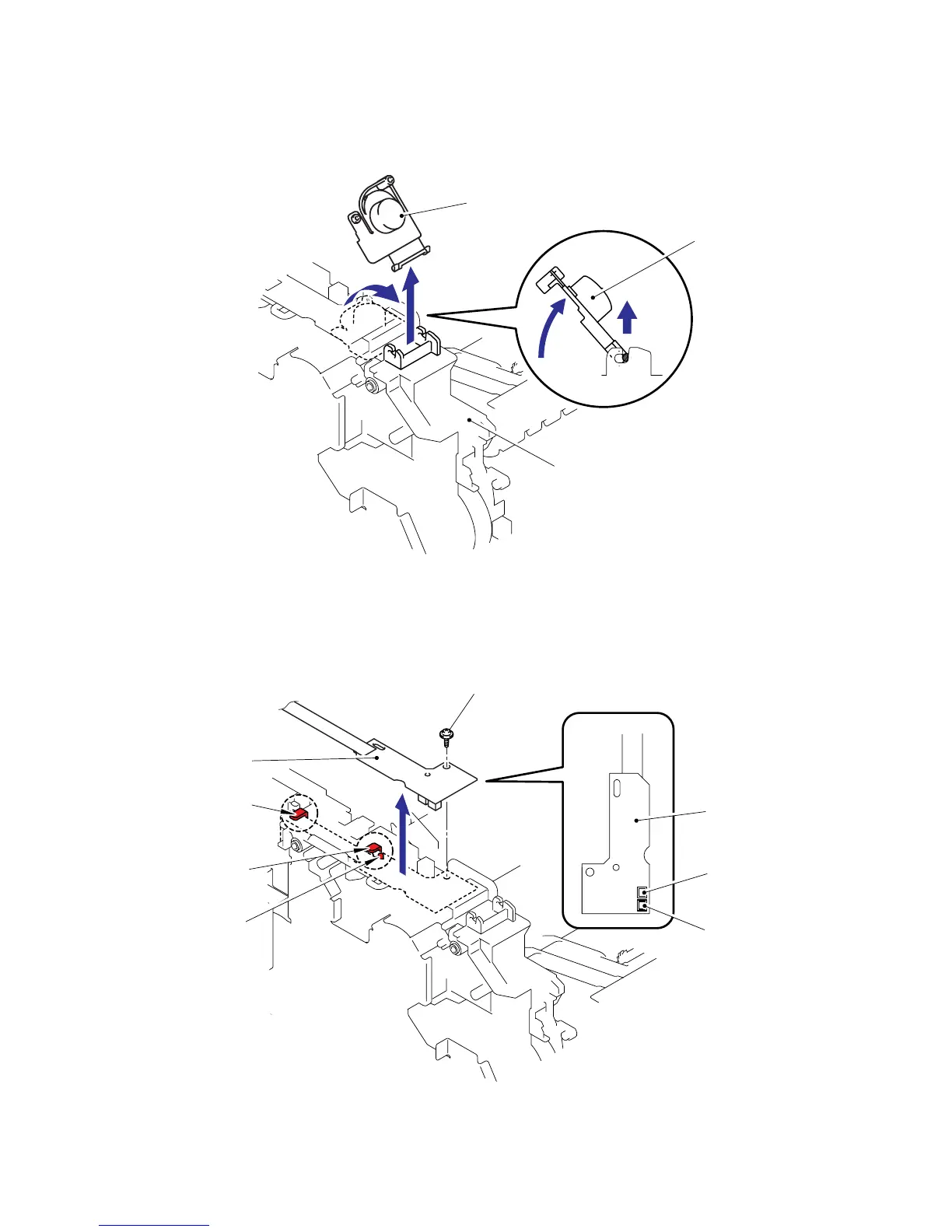

Fig. 4-39
(2) Disconnect the two connectors from the panel PCB.
(3) Remove the cup B M3x8 taptite screw, and then remove the panel PCB.
Fig. 4-40
Main frame L
1
2
2
New toner sensor connector
Cover sensor connector
Panel PCB
Taptite, cup B M3x8
1
Hook
SW key
SW key
Panel PCB
Hook
Pin
