CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
Confidential
4-36
3.25 New Toner Actuator / New Toner Actuator Spring
(1) Remove the new toner actuator spring.
(2) Release the hook and remove the new toner actuator from the main frame L.

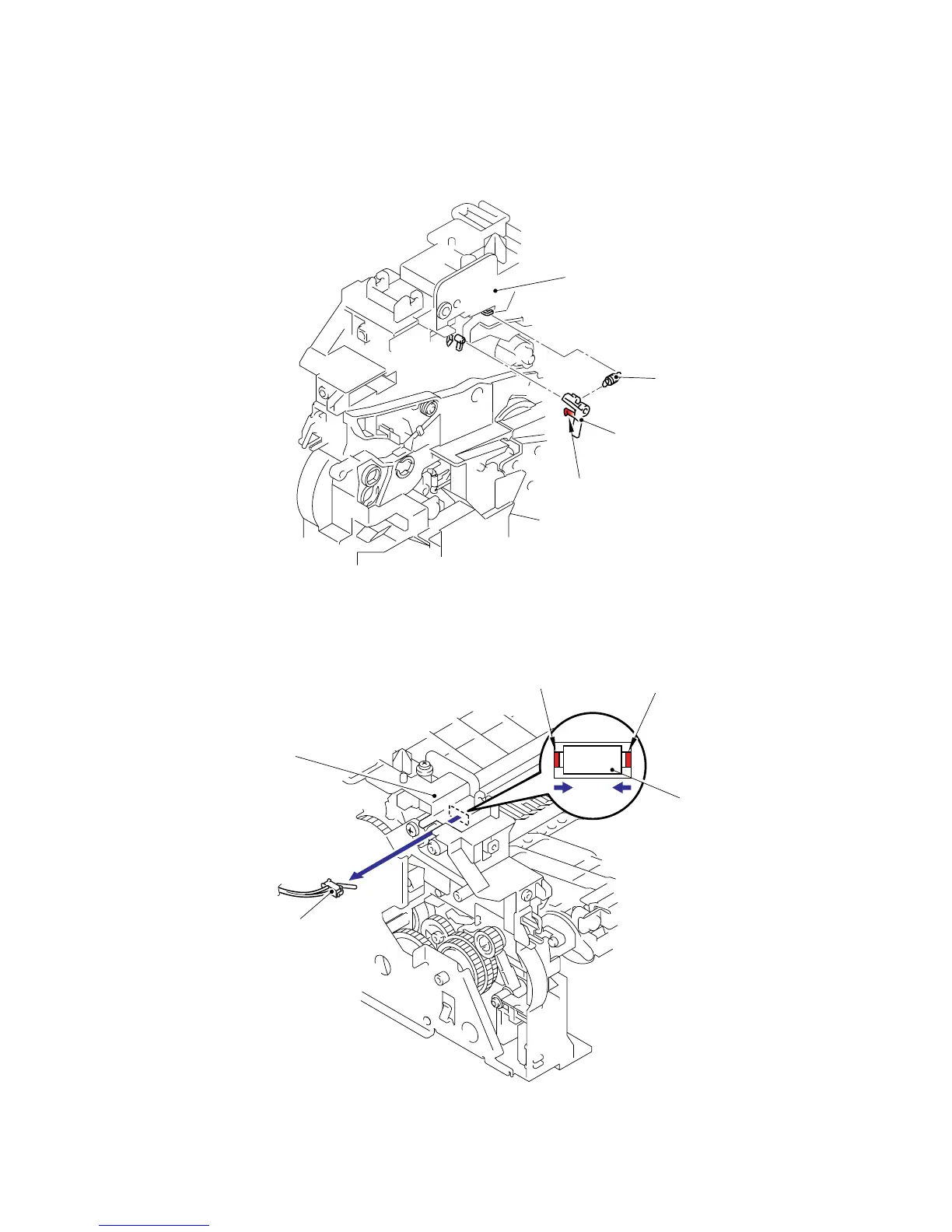

Fig. 4-61
3.26 New Toner Sensor
(1) Release the two hooks and remove the new toner sensor from the main frame L.
Fig. 4-62
Hook
Hook
Main frame L
New toner sensor
New toner sensor
1
2
1
Main frame L
New toner actuator
New toner actuator spring
Hook
