HL-2030/2040/2070N SERVICE MANUAL
Confidential
A-11
APPENDIX 11 REPLACEMENT OF PINCH SPRING L ALL AND
PINCH SPRING R ALL
Replacement of PINCH SPRING L ALL and PINCH SPRING R is effective for paper skew.
(Refer to Parts Change Information: PrPn050016 in detail.)

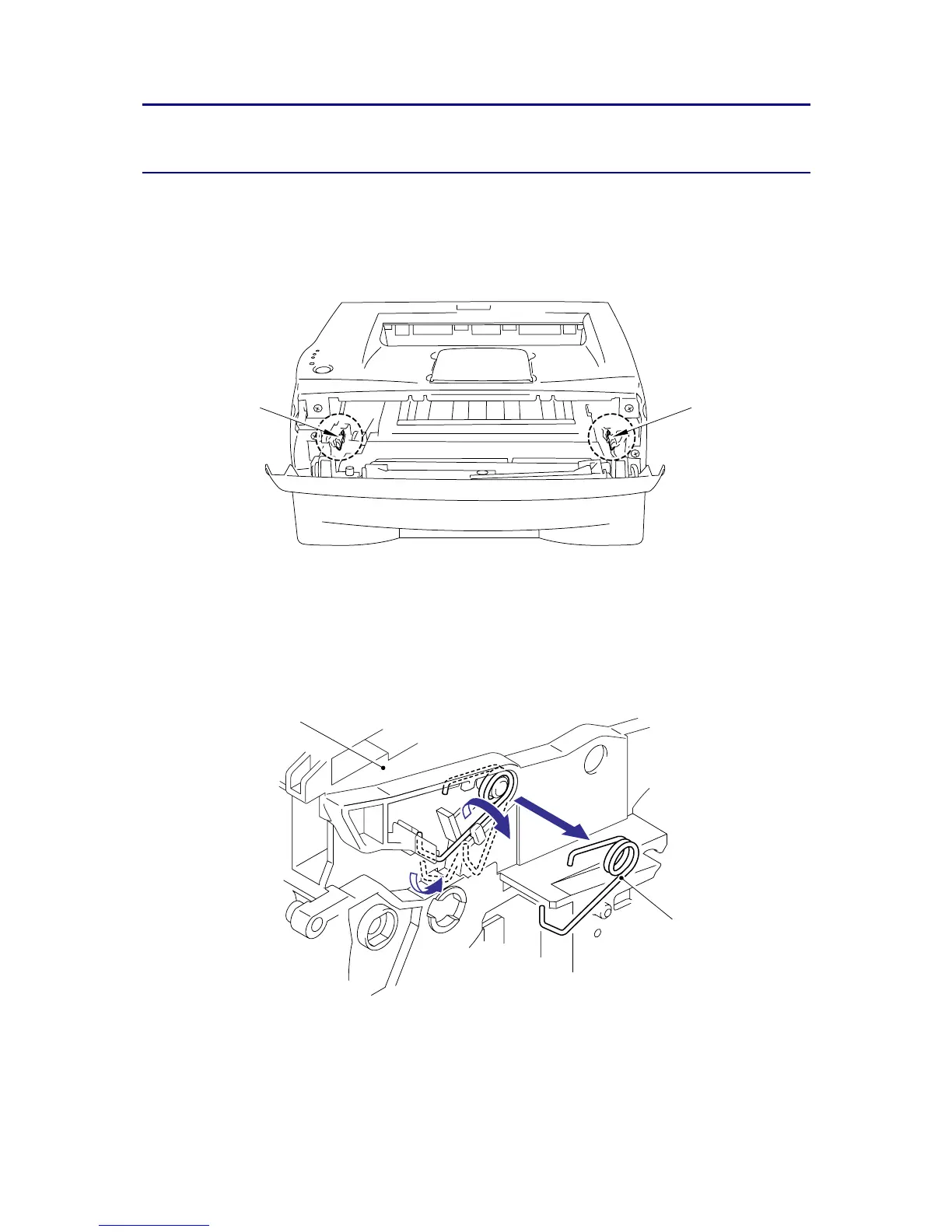

<Location>
New Parts: LM4904001 PINCH SPRING L ALL
LM4905001 PINCH SPRING R ALL
<Replacement procedure>
1) Remove the previous PINCH SPRING L ALL and replace this with the new parts.
1
2
3
PINCH SPRING R ALL PINCH SPRING L ALL
PINCH SPRING L ALL
MAIN FRAME L
