CHAPTER 3 THEORY OF OPERATION
Confidential
3-20
2.2 Paper Transfer
2.2.1 Paper supply
The feed roller picks up a few sheets or one sheet of paper from the paper tray every time it is
rotated and feeds it to the separation roller.

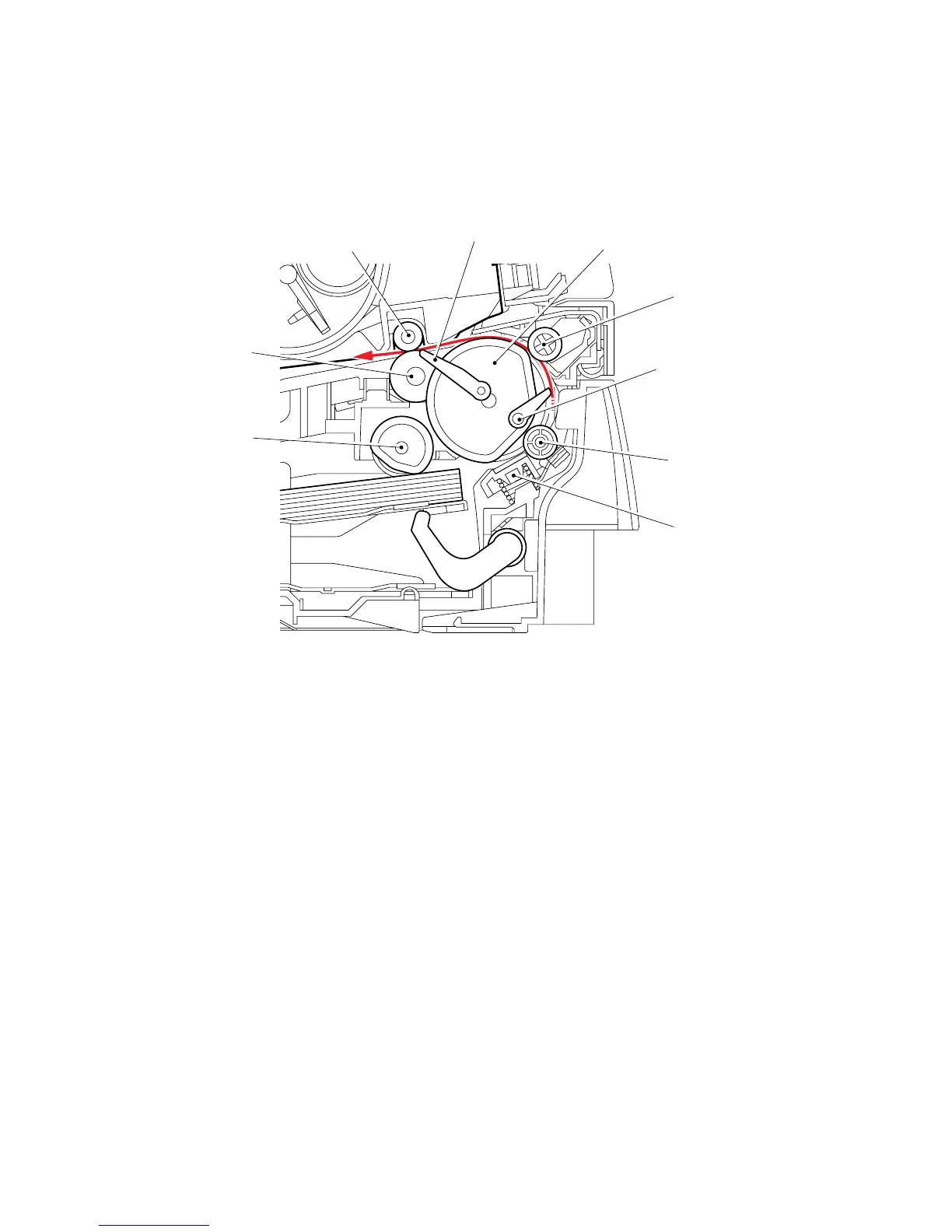

Fig. 3-27
Regist front actuator
Separation roller Pinch roller
Separation pad
Pressure roller
Tail edge actuator
Pinch roller
Feed roller
Paper feed roller
