HL-2030/2040/2070N SERVICE MANUAL
Confidential
4-11
3.10 Pickup Roller Holder ASSY
(1) Turn the printer upside down.
(2) Remove the six bind B M4x12 taptite screws, and then remove the chute base.

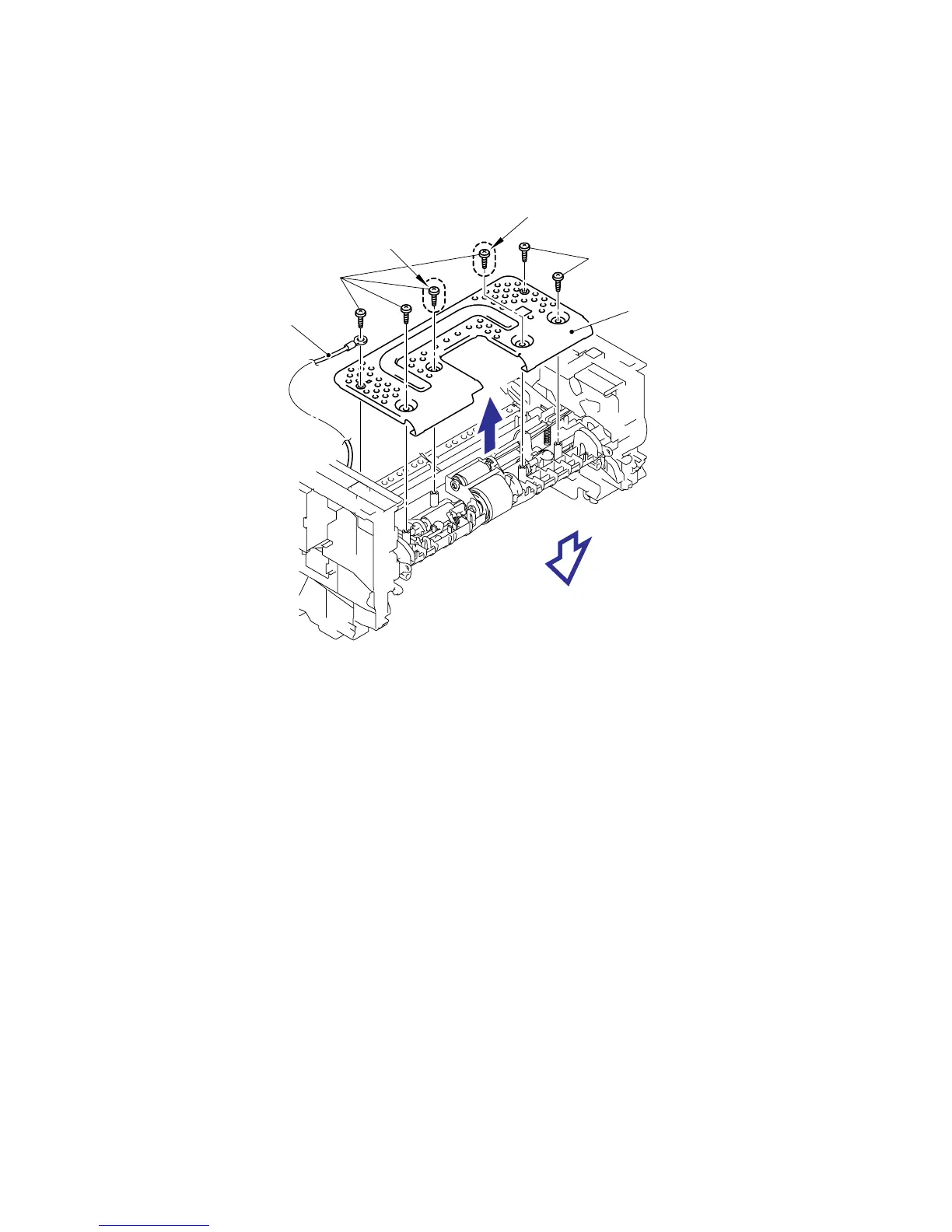

Fig. 4-17
Taptite, bind B M4x12 (A)
Taptite, bind B M4x12 (B)
Taptite, bind B M4x12
Taptite, bind B M4x12
Chute base
FG harness ASSY 5
Printer top side
(Printer body upside down)
