HL-2030/2040/2070N SERVICE MANUAL
Confidential
4-53

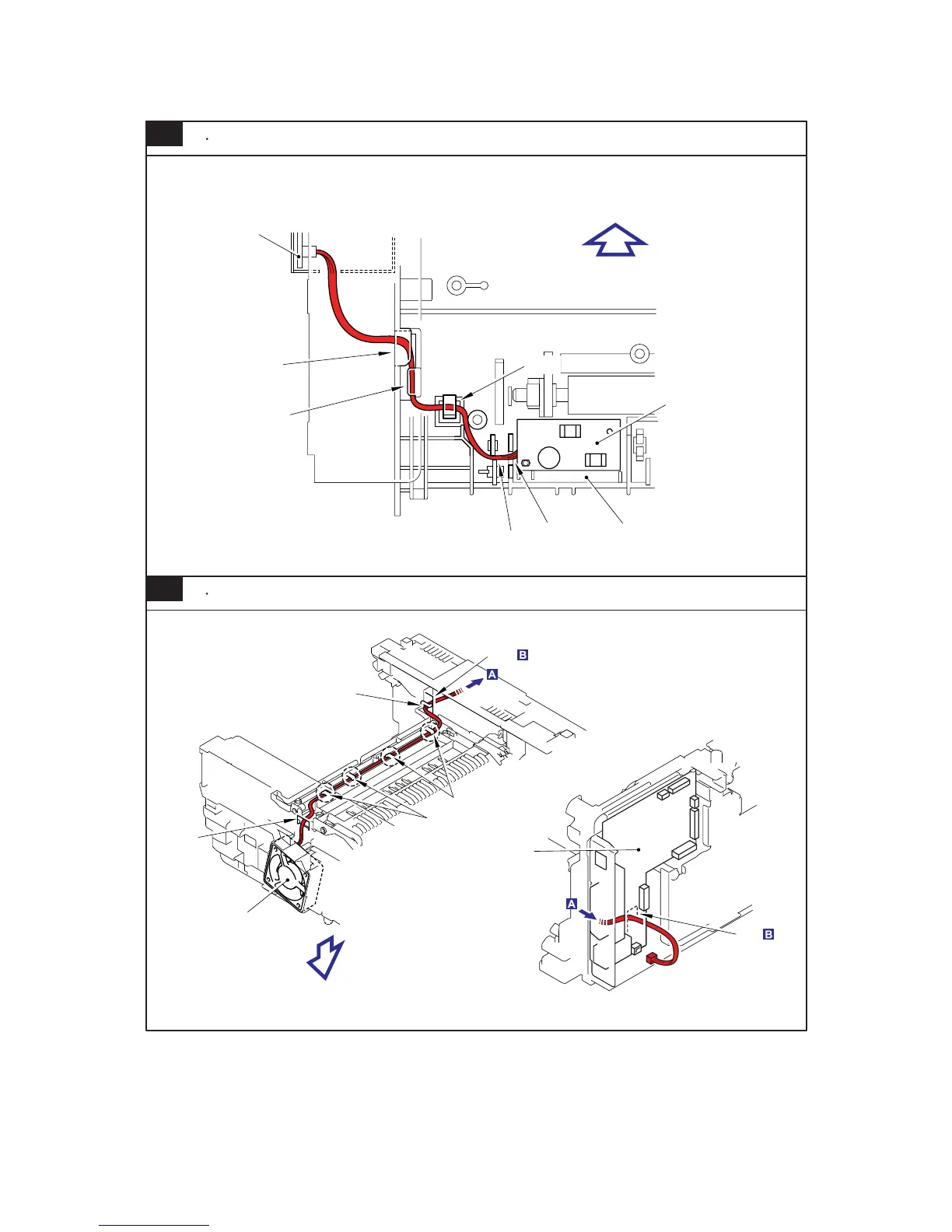

Hook
Fan motor 60 unit
Fan motor 60 unit
Hole
Hole
Hole
Hooks
Main PCB
Hook
Hooks
Printer top side
(Printer body upside down)
5
6
Regist sensor PCB ASSY
Hole
Hook
Rib
Rib
Chute
Regist sensor PCB ASSY
PS PCB unit
Printer top side
(Printer body upside down)
