CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
Confidential
4-38

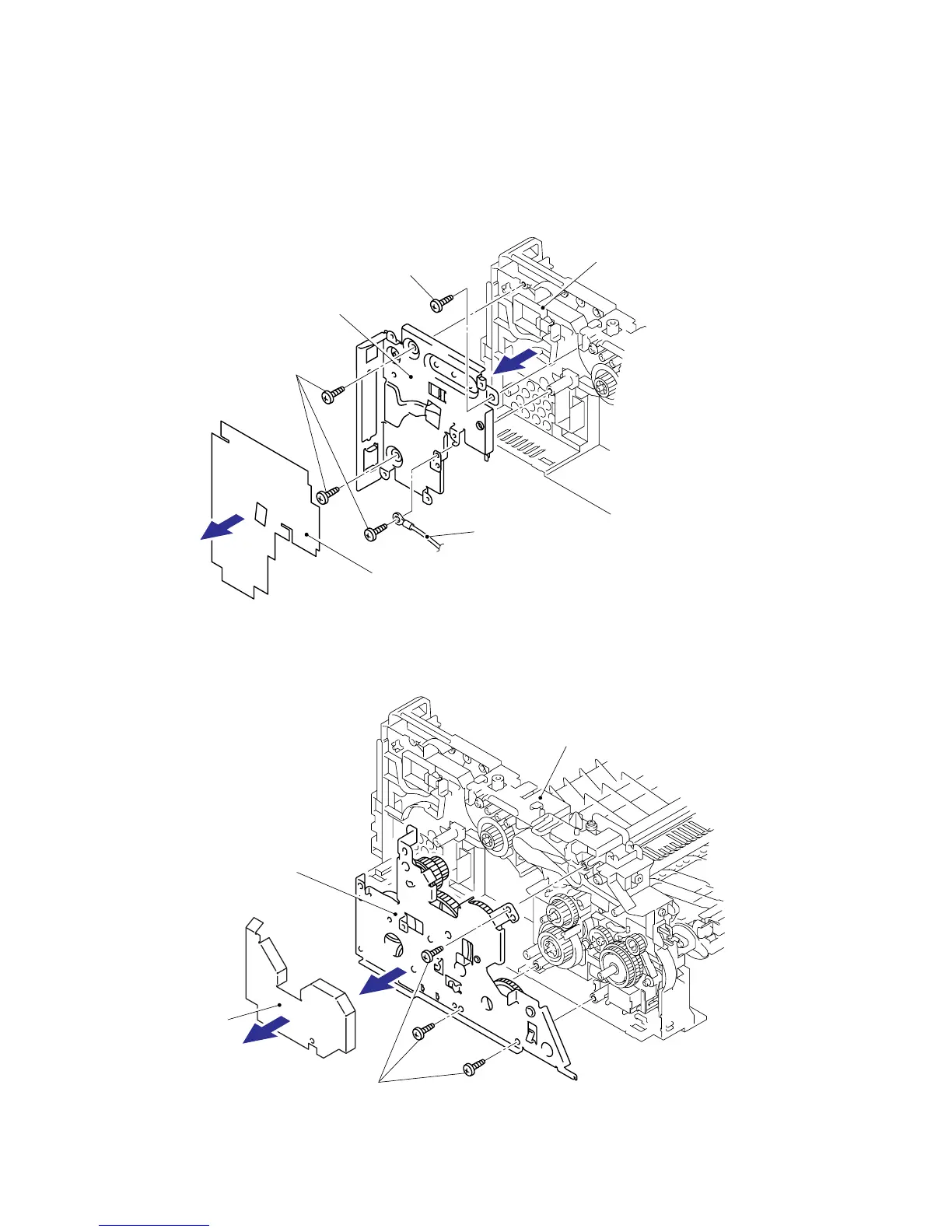

3.29 Main Motor ASSY
(1) Remove the Main PCB sheet.
(2) Remove the four bind B M4x12, taptite screws and FG harness ASSY 4, and then remove
the main shield plate.
Fig. 4-65
(3) Remove the HVPS insulation sheet.
(4) Remove the five bind B M4x12, taptite screws, and then remove the gear plate calking
ASSY.
Fig. 4-66
Main frame L
Taptite, bind B M4x12
HVPS insulation sheet
Gear plate calking ASSY
Taptite, bind B M4x12
FG harness ASSY 4
Main PCB sheet
Taptite, bind B 4x12
Taptite, bind B M4x12
Main shield plate
Main frame L
