CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
Confidential
4-32

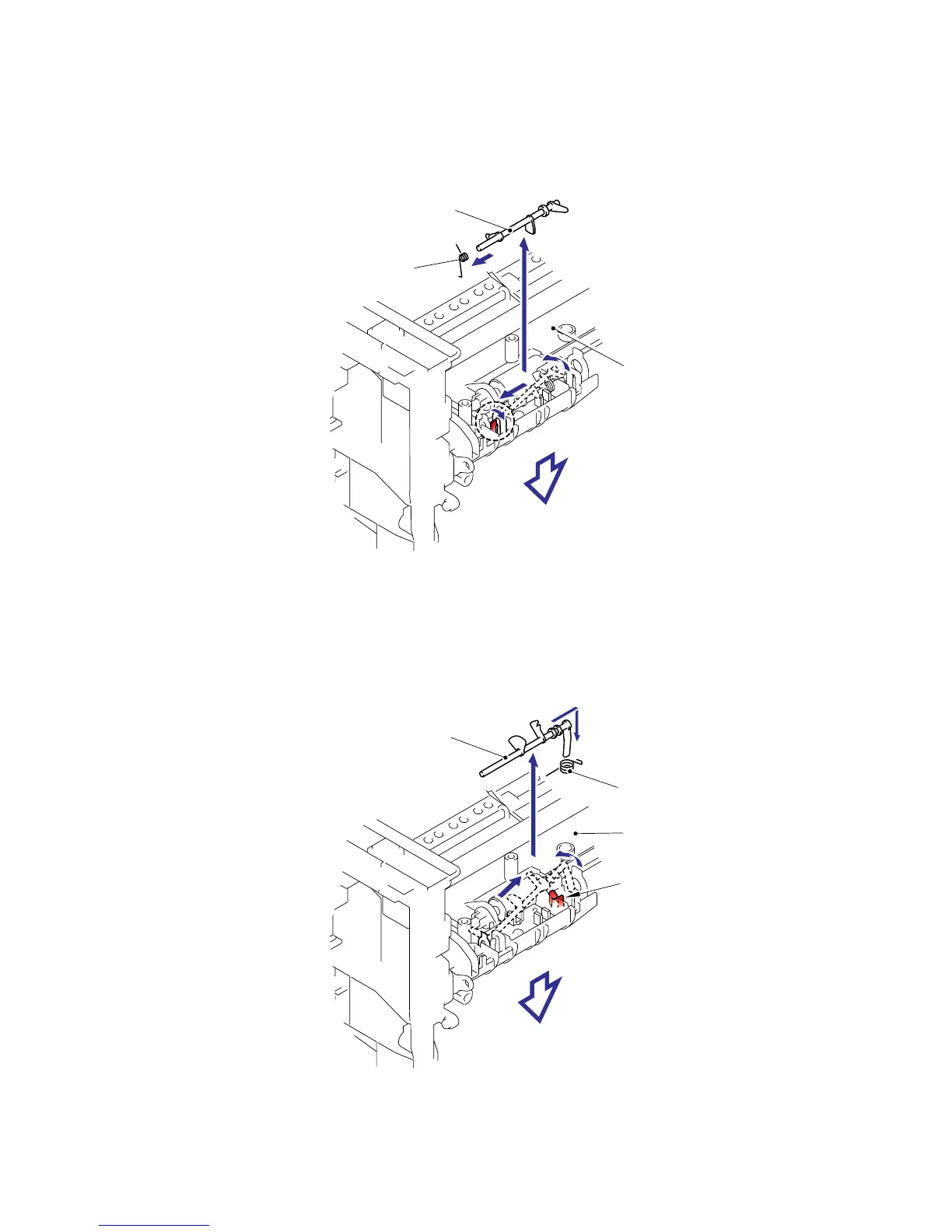

3.19 Tail Edge Actuator
(1) Remove the tail edge actuator with the tail edge spring.
(2) Remove the tail edge spring from the tail edge actuator.
Fig. 4-53
3.20 Regist Front Actuator / Regist Front Spring
(1) Remove the regist front actuator with the regist front spring.
(2) Remove the regist front spring from the regist front actuator.
Fig. 4-54
Tail edge spring
Tail edge actuator
Chute
Regist front actuator
2
3
4
2
1
3
1
Regist front spring
Chute
Hook
Printer top side
(Printer body upside down)
Printer top side
(Printer body upside down)
