CHAPTER 4 DISASSEMBLY AND RE-ASSEMBLY
Confidential
4-28
3.16 Laser Unit
(1) Remove the cup S M3x6, taptite screw (A) and FG harness ASSY 6.
(2) Remove the four cup S M3x6, taptite screws (B) and FG harness ASSY 2.
(3) Remove the laser unit.

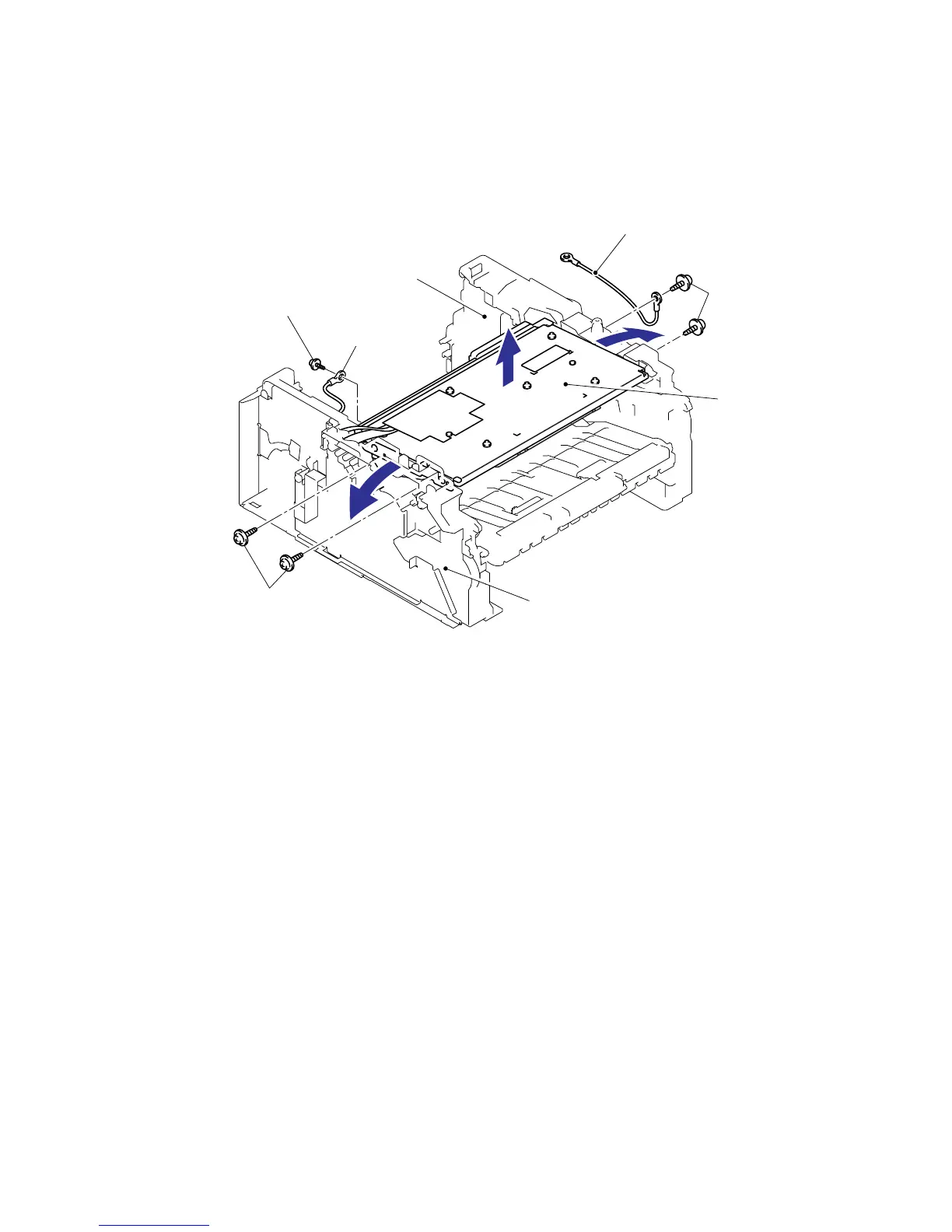

Fig. 4-47
Main frame R
Main frame L
Taptite, cup S M3x6 (B)
Taptite, cup S M3x6 (B)
Laser unit
FG harness ASSY 2
FG harness ASSY 6
Taptite, cup S M3x6 (A)
