DirectLOGIC Error Code P499 Explanation
The P499 error code is used to show any errors that are generated by the connected PLC. The
P499 error message includes a four digit hexadecimal value displayed at the end of the message.
This value can be found in the specific PLC’s error tables to determine the cause of the error.
The possible PLC generated error codes for the various Direct LOGIC communication
protocols breakdown into a four digit hexadecimal value.
DirectLOGIC – K-Sequence PLC Error Code Table
The following table lists the errors that can be generated by the DirectLOGIC PLC when using
the K-Sequence protocol.
Note: The following errors can be generated from the designated PLC, are monitored by the C-more Micro-
Graphic panel, and displayed on the panel’s screen as a hexadecimal value in panel error code P499, if active.
Please refer to the PLC users manual for additional information.
DirectLOGIC – DirectNET PLC Error Codes
There are no PLC generated errors that occur when using the DirectNET protocol.
Stop
Start

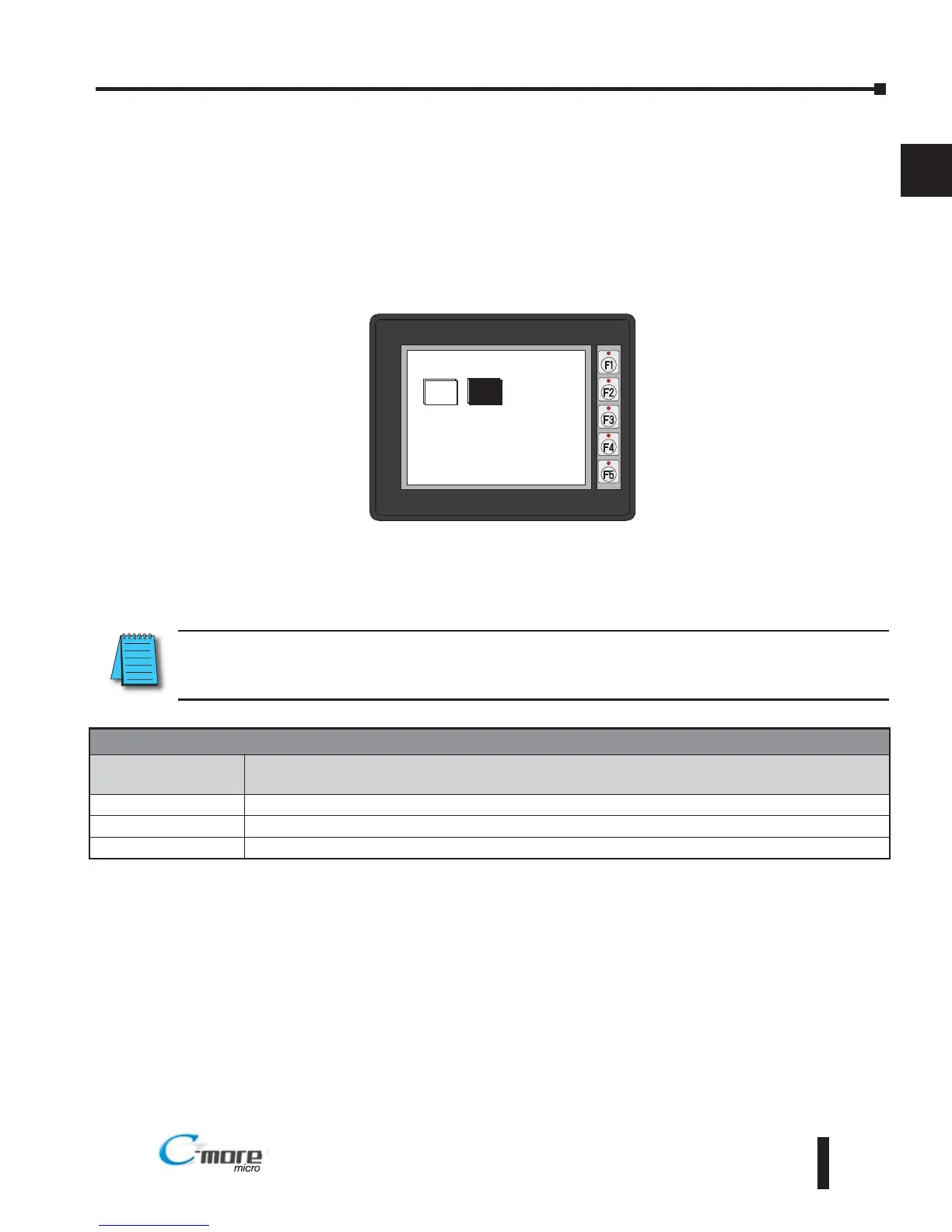

P499: Recv. Err Code 0002
Direct LOGIC PLC Error Code Displayed Example:
PLC Error Codes for Direct LOGIC – K-Sequence
Panel Error Code
P499 Hex Value
Description
01F8 Error setting value.
020D Error in key mode.
021C Password protected.
®
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
A
Appendix A: Panel & PLC Error Code Tables
A–5
