C-more micro EA1-S6ML User Manual

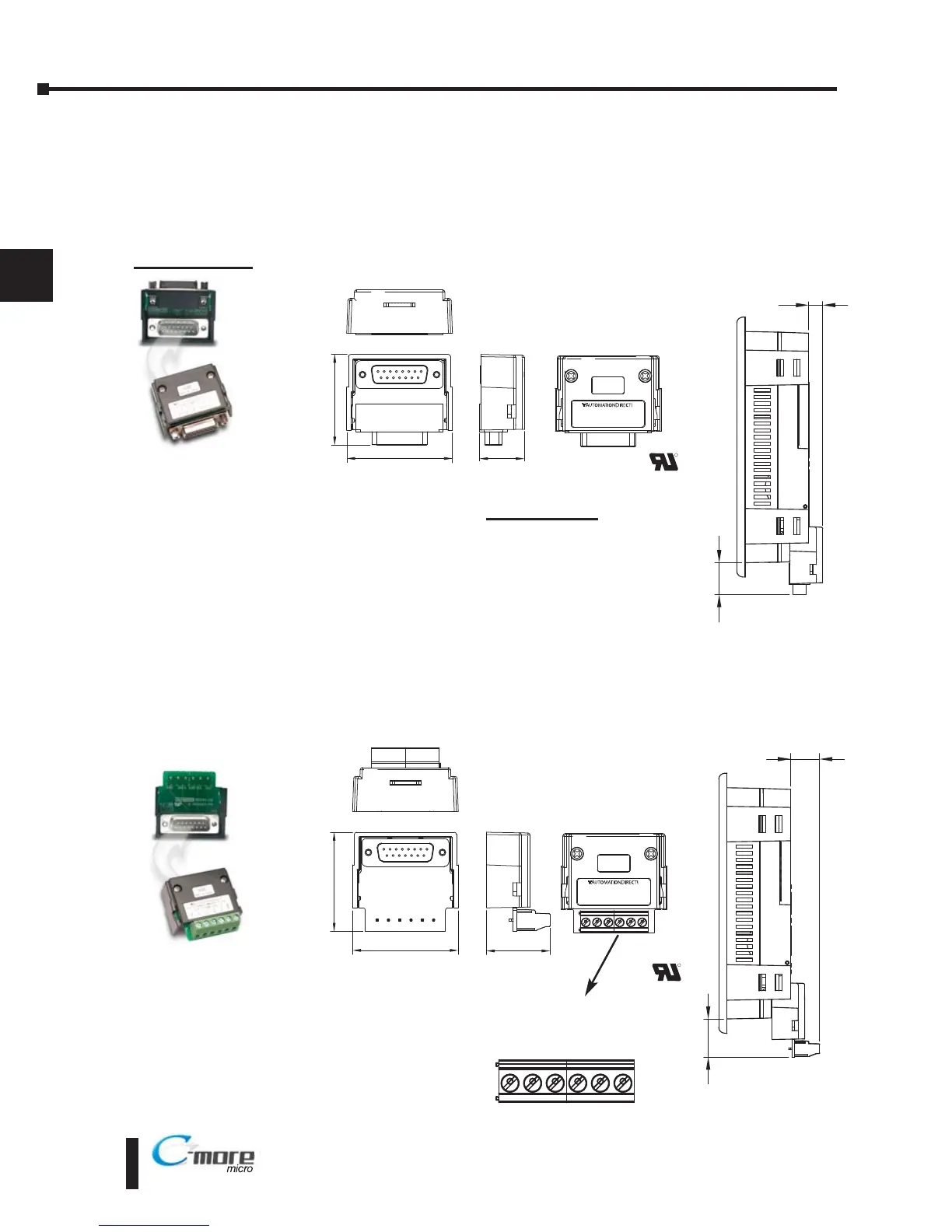

D-SUB 15-pin 90-degree Communication Port Adapter
The EA-ADPTR-4 adapter plugs into the 15-pin serial port on the rear of the 6” panel to
allow a PLC communication cable to be plugged in at a 90 degree angle to reduce panel
depth requirements. 15-pin straight through pin-out. UL Recognized.
D-SUB 15-pin to Terminal Block Adapter
The EA-COMCON-3 adapter plugs into the 15-pin serial port on the rear of the 6” panel to
allow wire terminal connections for an RS-422/RS-485/DH-485 PLC communication cable.
UL Recognized.
3–14
Chapter 3: Accessories
®
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10
EA-ADPTR-4
Country of Origin
Date code
IOIOI – PLC
1 605 [40 8]
1.873
[47.6]
0.793
[20.2]
EA ADPTR 4
KOYO ELECTRON CS INDUSTRIES CO LTD
Units: inches [mm]
Country of O igin
EA COMCON 3
GND SD– SD+ RD– RD+ TERM
Date code
1 756 [44 6]
1.873
[47.6]
1.126
[28.6]
KOYO ELECTRON CS NDUSTRIES CO LTD
Units: inches [mm]
0 751 [19 1]
0.333
[8.5]
0 903 [22 9]
0.687
[17.5]
Dimensions
Terminals
GND SD– SD+ RD– RD+ TERM
3
