Chapter 2: Specifications
2
®
EA1-MG6-USER-M Hardware User Manual, 1st Ed. Rev C, 09/10

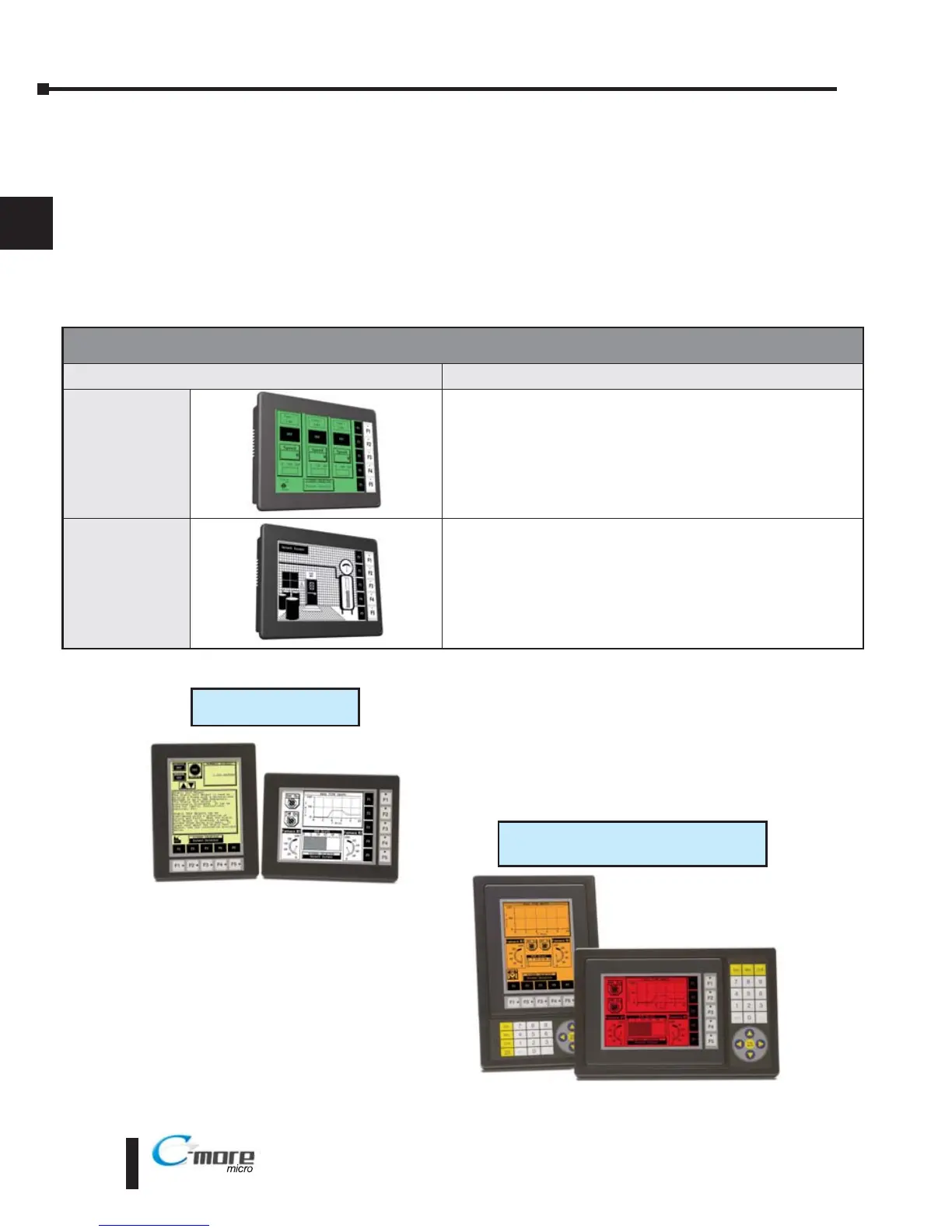

Available Models
The C-more 6” Micro-Graphic panels expand the next generation of HMI panels brought to
you by AutomationDirect. They have been designed to display and interchange graphical data
from a PLC by viewing, using the function keys, or touching the screen.
The C-more 6” Micro-Graphic panel is available in two models to suit your application. Refer
to the following table for part numbers, descriptions and general specifications. See Chapter 3:
Accessories for details on the available accessories for the C-more 6” Micro-Graphic panels.
Micro-Graphic Panels
Part Number Description
EA1-S6ML
5.7-inch
C-more
Micro-Graphic Touch Panel with STN LCD monochrome, 320x240
dot display. The panel has red and green LED backlights. Supports 5 selectable
backlight colors (Red, Green, Amber, Lime, and Yellow). Includes 5 user-defined
function keys with LED indicators. 2 built in serial Ports (RS-232 RJ12 port and 15
pin D-sub RS-232/422/485). NEMA 4/4X, IP-65 (when mounted correctly; for indoor
use only).
EA1-S6MLW
5.7-inch
C-more
Micro-Graphic Touch Panel with STN LCD monochrome, 320x240
dot display. The panel has white and red LED backlights. Supports 5 selectable
backlight colors (White, Pink1, Pink2, Pink3, and Red). Includes 5 user-defined
function keys with LED indicators. 2 built in serial Ports (RS-232 RJ12 port and 15
pin D-sub RS-232/422/485). NEMA 4/4X, IP-65 (when mounted correctly; for indoor
use only
C-more 6” Micro-Graphic
Panel
C-more 6” Micro-Graphic Panels Installed in
Landscape and Portrait Keypad Bezels
