Canon XF605 User Manual

Onscreen Markers, Zebra Patterns and False Color
82
Onscreen Markers, Zebra Patterns and False Color
Using onscreen markers allows you to make sure your subject is correctly framed and is within the appropriate
safe area. Zebra patterns help you identify areas that are overexposed. The false color overlay allows you to
check if the exposure is correct. You can display the assistance overlays independently on the screen, SDI OUT
terminal and HDMI OUT terminal. The assistance overlays will not affect your recordings.
Displaying Onscreen Markers
The camera offers several onscreen markers. You can display multiple onscreen markers simultaneously and
select their color individually.
[Center Marker]: Displays a small marker that indicates the center of the screen. You can select the shape of the
center marker.
[Horizontal Marker], [Vertical Marker]: Displays a horizontal or vertical line to help you compose level shots.
[Grid Marker]: Displays a grid that allows you to frame your shots correctly (horizontally and vertically).
[Aspect Marker]: Indicates various aspect ratios by displaying border lines or by masking the image outside the
selected aspect ratio. The aspect ratio can be set freely by the user.
[Safe Area Marker]: Displays a margin from the edges of the image (using border lines or by masking the image)
to indicate the action safe area, text safe area, etc. You can select the core area used as the basis for calculating
the safe area and a percentage, relative to the side length or area.
[User Marker 1], [User Marker 2]: Displays up to two rectangular frames whose size and position you can set
freely and independently of each other.
1 Select > [ A Assistance Functions] > Desired [Markers:] setting > [On].
• Onscreen markers will be displayed on the corresponding video output.
• You can also use direct touch control (A 49) to turn the [Markers: LCD] setting on/off.
• If the respective setting is set to [Off], onscreen markers will not be displayed on the corresponding video
outputs even if individual markers are configured.
2 Select the marker(s) you wish to display and configure them with the following procedures.
• You can display multiple markers simultaneously.
Center Marker / Horizontal Marker / Vertical Marker / Grid Marker
1 Select > [ A Assistance Functions] > [Center Marker], [Horizontal Marker], [Vertical Marker] or [Grid
Marker] > Desired marker color.
• Select [Off] to turn off the marker.

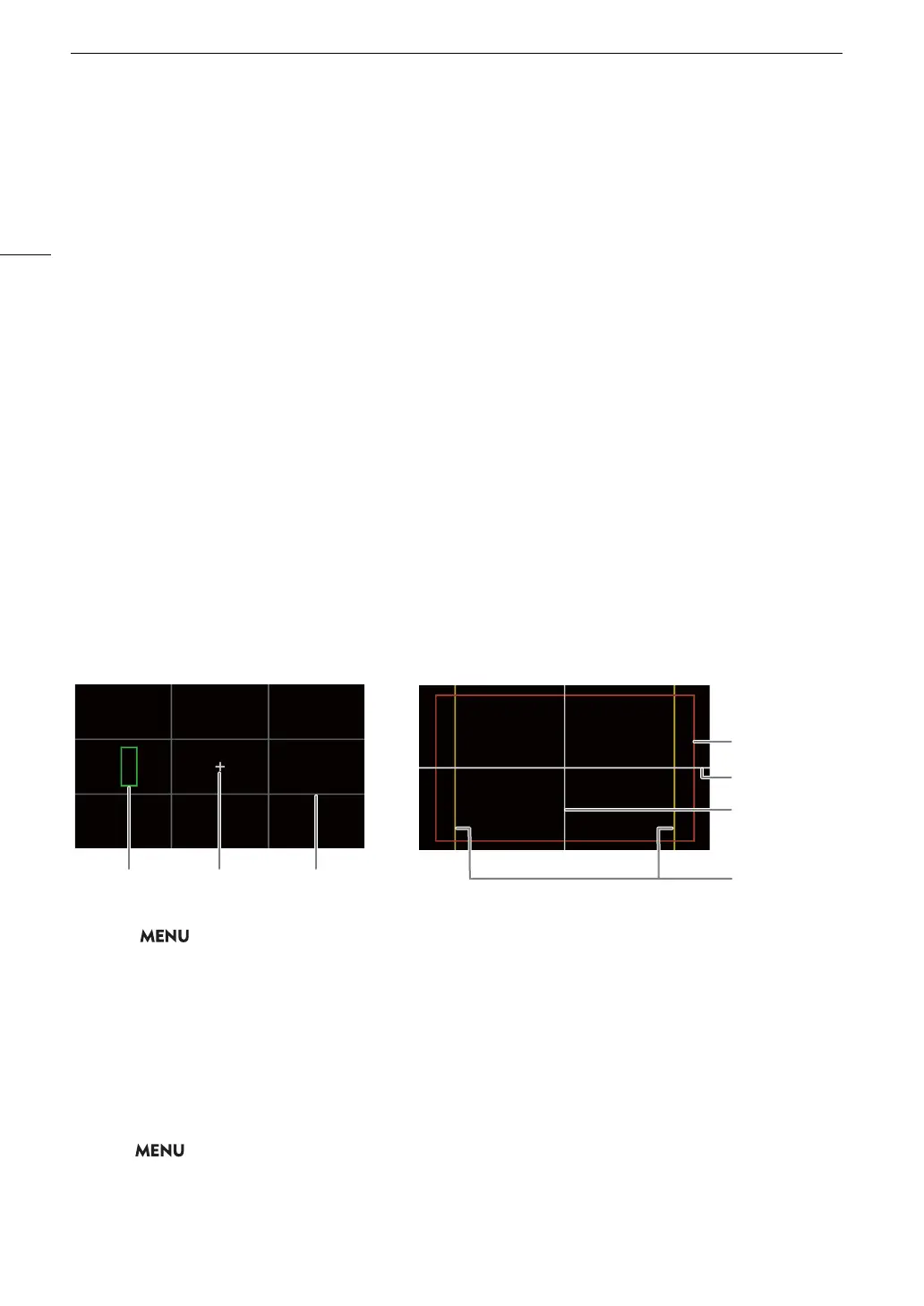

Aspect guide 4:3
Center marker
([Cross 1] type)
Grid marker
Horizontal
marker
Safe area 88%
by side length
User marker
(100, 250)
Vertical marker

Canon XF605 Specifications

General

Sensor type	CMOS
Total megapixels	13.4 MP
Optical sensor size	1/1 \
Filter size	58 mm
Optical zoom	15 x
Image stabilizer	Yes
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Focal length (35mm film equivalent)	25.5 - 382.5 mm
3D	No
Camcorder type	Handheld camcorder
Image processor	DIGIC DV 7
Remotely operated	-
Minimum illumination	1.5 lx
Focus adjustment	Auto/Manual
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Maximum memory card size	- GB
Product color	Black
Video resolutions	1280 x 720, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Video formats supported	H.265, MP4, MPEG4, MXF
Maximum video resolution	3840 x 2160 pixels
Analog signal format system	NTSC, PAL
Image formats supported	JPEG
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Display diagonal	3.5 \
Viewfinder type	Optical
PCM digital audio	16-bit/48 kHz
Camera shutter speed	1/2000 s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Storage temperature (T-T)	-5 - 45 °C
Operating temperature (T-T)	0 - 40 °C
ISO sensitivity	200, 12800, Auto
Battery capacity	- mAh
Battery life (max)	2.5 h
Video recording time	- h
Number of diaphragm blades	9

Weight and Dimensions

Depth	173 mm
Width	168 mm
Height	333 mm
Weight	2010 g
