Canon XF605 User Manual

Synchronizing with an External Device
88
Synchronizing with an External Device
You can use the camera’s TIME CODE terminal to synchronize this camera’s time code to an external signal.
Using the same external time code signal with multiple cameras allows you to set up a multi-camera recording.
You can output the time code signal from this camera to other cameras. You can also output the time code
signal from the SDI OUT terminal to an editing device (while recording or during playback), so the editor can
create video with the same time code.
Additionally, you can use the G-LOCK/SYNC terminal to synchronize this camera’s video signal to a reference
signal* from an external video device (Genlock synchronization) or to send out the camera’s video signal as a
synchronization reference signal*.
* As reference video signal (input signal) for Genlock synchronization, you can use an analog blackburst or tri-level HD signal. The
reference video output signal will be a tri-level HD signal.
Connecting an External Device
When synchronizing a time code signal, connect the external device to the TIME CODE terminal on the camera.
When synchronizing with a reference video signal, connect the external device to the G-LOCK/SYNC terminal.
Be sure to set either terminal to input or output in advance.

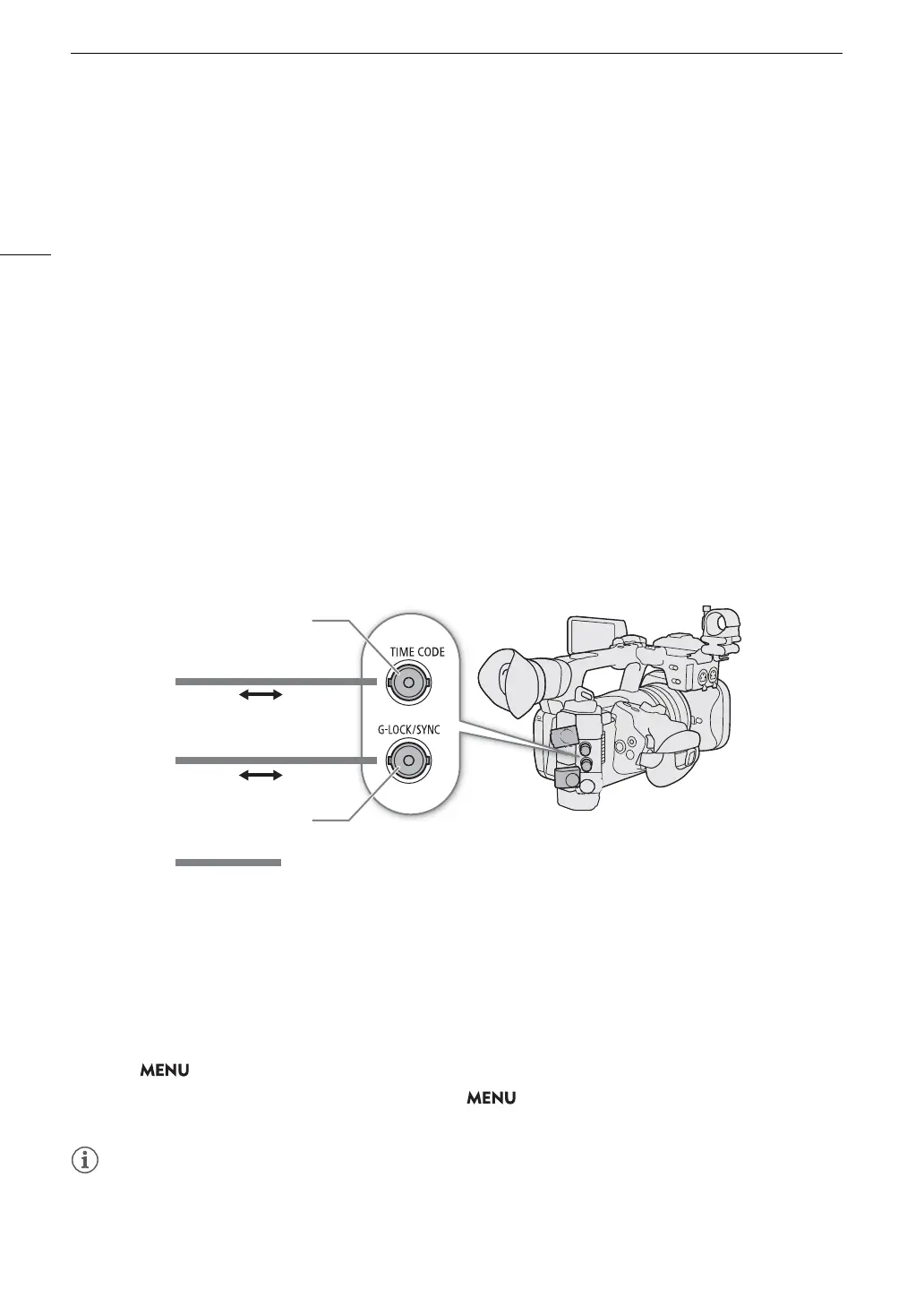

Connection diagram
Time Code Signal Input
An external SMPTE-standard LTC timing signal received from the TIME CODE terminal can be recorded as the
time code. The user bit of the external timing signal can also be recorded with clips. Before connecting the
device, set the TIME CODE terminal to input with the procedure below and make sure the time code running
mode is set to [Free Run] (A 85).
1 Select > [B System Setup] > [TC In/Out] > [In].
2 To record the external signal’s user bit, select also > [B System Setup] > [User Bit Recording
Mode] > [External].
NOTES
NOTES
• Synchronize the camera’s time code with an external time code signal that matches the camera’s system
frequency. Use a 24-frame time code signal when the frame rate is set to 23.98P, a 25-frame time code signal
when it is set to 25.00P, 50.00i or 50.00P and a 30-frame time code signal for other frame rates.
Standard TC signal
TIME CODE terminal
BNC cable (commercially available)
G-LOCK/SYNC terminal
Reference video signal

Canon XF605 Specifications

General

Sensor type	CMOS
Total megapixels	13.4 MP
Optical sensor size	1/1 \
Filter size	58 mm
Optical zoom	15 x
Image stabilizer	Yes
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Focal length (35mm film equivalent)	25.5 - 382.5 mm
3D	No
Camcorder type	Handheld camcorder
Image processor	DIGIC DV 7
Remotely operated	-
Minimum illumination	1.5 lx
Focus adjustment	Auto/Manual
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Maximum memory card size	- GB
Product color	Black
Video resolutions	1280 x 720, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Video formats supported	H.265, MP4, MPEG4, MXF
Maximum video resolution	3840 x 2160 pixels
Analog signal format system	NTSC, PAL
Image formats supported	JPEG
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Display diagonal	3.5 \
Viewfinder type	Optical
PCM digital audio	16-bit/48 kHz
Camera shutter speed	1/2000 s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Storage temperature (T-T)	-5 - 45 °C
Operating temperature (T-T)	0 - 40 °C
ISO sensitivity	200, 12800, Auto
Battery capacity	- mAh
Battery life (max)	2.5 h
Video recording time	- h
Number of diaphragm blades	9

Weight and Dimensions

Depth	173 mm
Width	168 mm
Height	333 mm
Weight	2010 g
