Canon XF605 User Manual

99
Video Scopes
Video Scopes
The camera can display a simplified waveform monitor or a vectorscope to check your recordings. The selected
video scope is displayed on the screen and can be output to other monitoring devices as well.

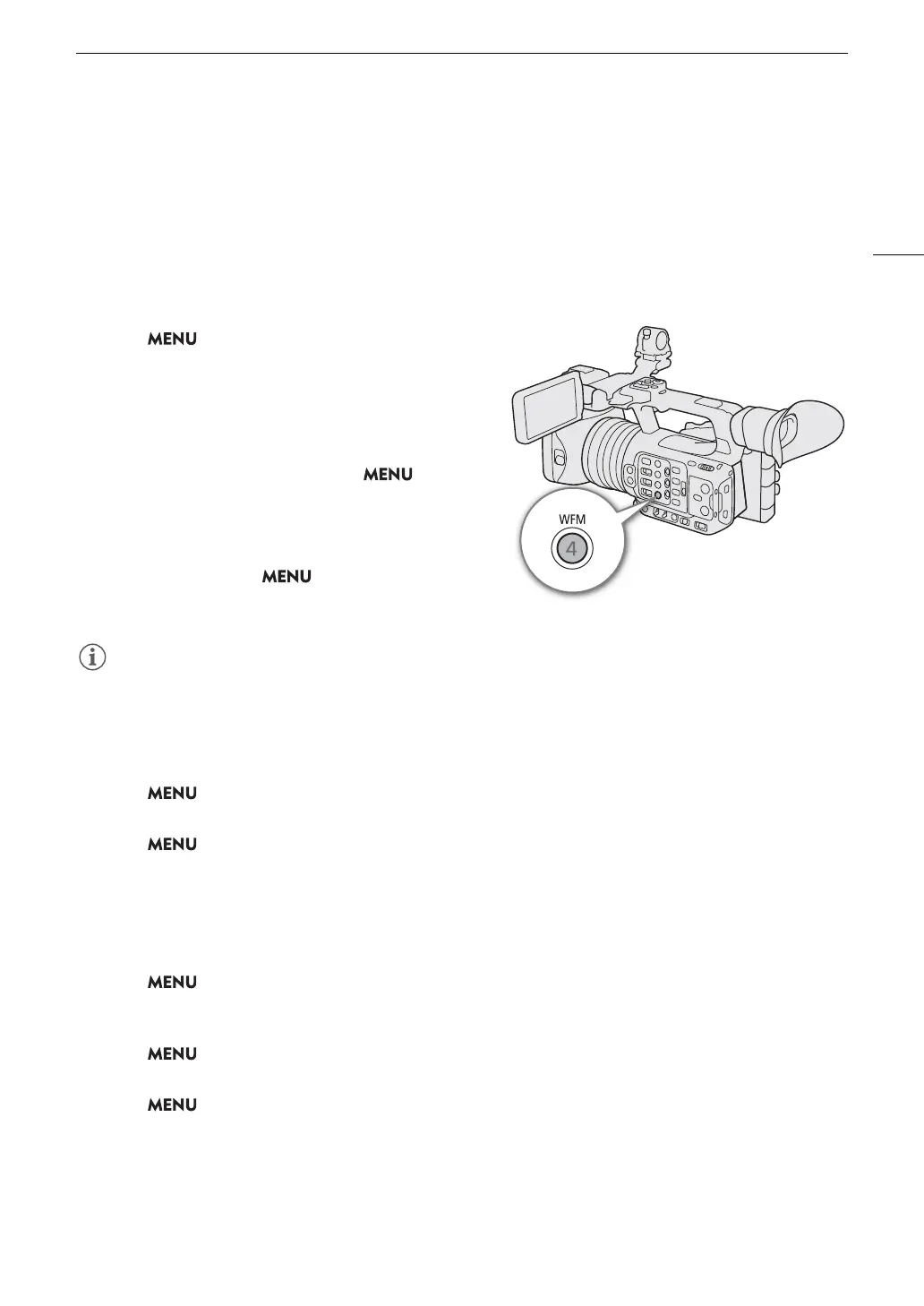

Displaying a Video Scope
1 Select > [ A Assistance Functions] >
[WFM Function] > [Waveform Monitor] or
[Vectorscope].
2Press the WFM button.
• You can also use direct touch control (A 49) to turn
the [Waveform Monitor]/[Vectorscope] setting on/off.
• Alternatively, you can use one of the >
[
A Assistance Functions] > [WFM:] settings to turn the
video scope on/off separately on the desired video
output.
• By default, the video scope will appear on the right of
the screen. Using the > [
A Assistance
Functions] > [Waveform Settings] or [Vectorscope
Settings] > [Position] settings, you can select where to display it (left or right side).
NOTES
NOTES
• The video scopes will also be displayed while adjusting a custom picture file's image settings (A 120).
Changing the Waveform Monitor Settings
1 Select > [ A Assistance Functions] > [Waveform Settings] > [Type] > Desired option.
• If you selected an option other than [Select Line], skip to step 4.
2 Select > [ A Assistance Functions] > [Waveform Settings] > [Select Line].
3 Enter the Y coordinate of the red horizontal line to display using the data entry screen (A 27).
• The available range of lines that can be selected depends on the vertical component of the resolution used.
For 2160: 0 to 2158 (in 2-line increments)
For 1080: 0 to 1079 (in 1-line increments)
For 720: 0 to 719 (in 1-line increments)
4 Select > [ A Assistance Functions] > [Waveform Settings] > [Vertical Scale for HDR] >
Desired option.
• Select the Y axis (luminance) scale used when displaying the waveform monitor of an HDR image.
5 Select > [ A Assistance Functions] > [Waveform Settings] > [Gain] > [1x] or [2x].
• If you selected [1x], the rest of the procedure is not necessary.
6 Select > [ A Assistance Functions] > [Waveform Settings] > [Y Position] > Desired option.
• The display range of the waveform monitor’s Y axis will be reduced by half. Select the minimum luminance
value (in %) shown on the Y axis.

Canon XF605 Specifications

General

Sensor type	CMOS
Total megapixels	13.4 MP
Optical sensor size	1/1 \
Filter size	58 mm
Optical zoom	15 x
Image stabilizer	Yes
Image stabilizer type	Optical Image Stabilization (OIS)
Maximum aperture number	2.8
Focal length (35mm film equivalent)	25.5 - 382.5 mm
3D	No
Camcorder type	Handheld camcorder
Image processor	DIGIC DV 7
Remotely operated	-
Minimum illumination	1.5 lx
Focus adjustment	Auto/Manual
Memory slots	2
Camcorder media type	Memory card
Compatible memory cards	SD, SDHC, SDXC
Maximum memory card size	- GB
Product color	Black
Video resolutions	1280 x 720, 1920 x 1080, 3840 x 2160 pixels
Maximum frame rate	120 fps
Video formats supported	H.265, MP4, MPEG4, MXF
Maximum video resolution	3840 x 2160 pixels
Analog signal format system	NTSC, PAL
Image formats supported	JPEG
Headphone outputs	1
Headphone connectivity	3.5 mm
USB 2.0 ports quantity	0
Display diagonal	3.5 \
Viewfinder type	Optical
PCM digital audio	16-bit/48 kHz
Camera shutter speed	1/2000 s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Storage temperature (T-T)	-5 - 45 °C
Operating temperature (T-T)	0 - 40 °C
ISO sensitivity	200, 12800, Auto
Battery capacity	- mAh
Battery life (max)	2.5 h
Video recording time	- h
Number of diaphragm blades	9

Weight and Dimensions

Depth	173 mm
Width	168 mm
Height	333 mm
Weight	2010 g
