6 . SPECIFICATIONS
6.11
Challenger MT500B EU
6

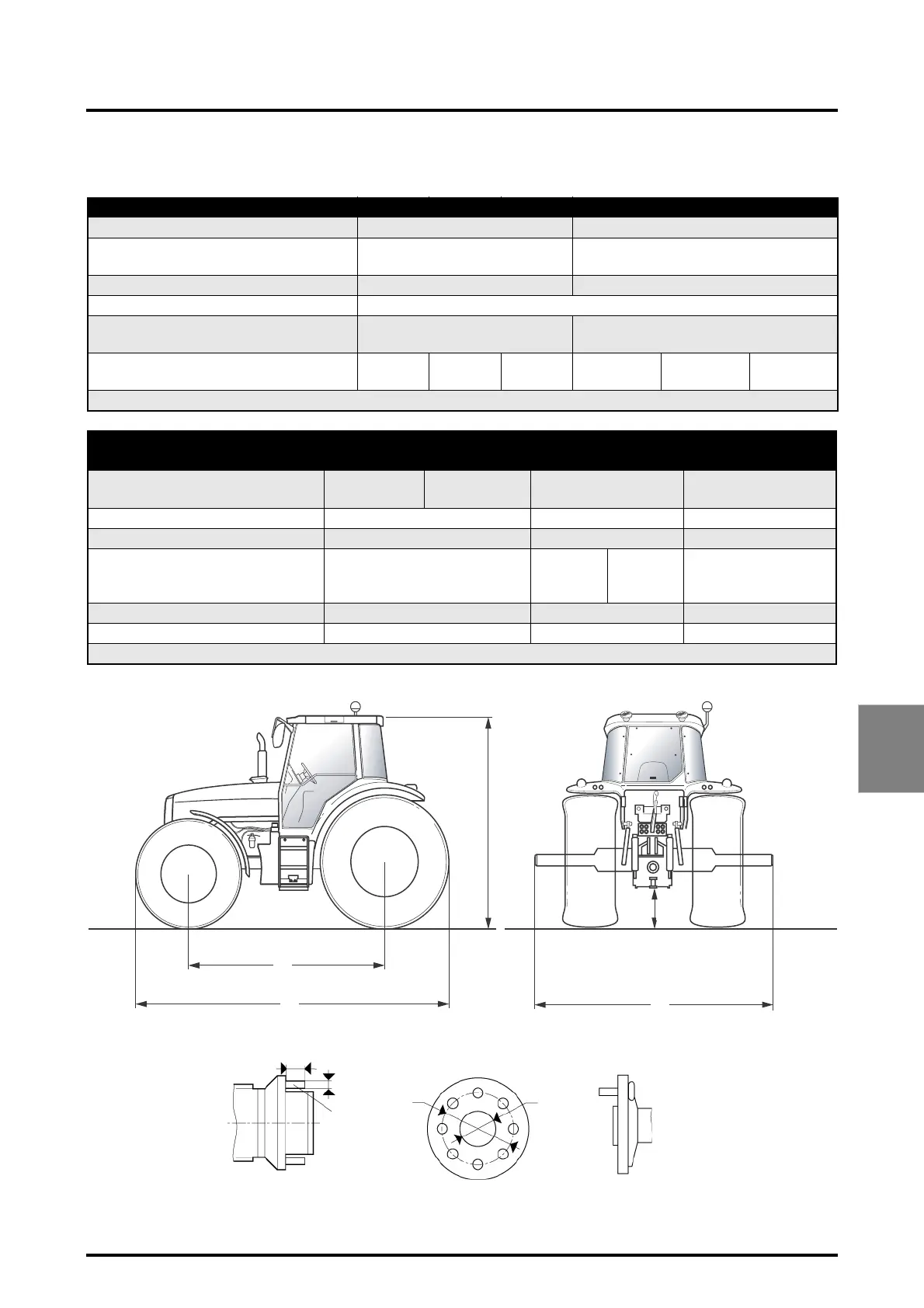

6.21 - DIMENSIONS AND WEIGHTS
SPECIFICATIONS MT525B MT535B MT545B MT555B MT565B MT575B
A. Wheel base 2780 3007
B. Overall length with lower links without
front weights, max.-min.
4650 - 4500 4986 - 4951
C. Height to roof (with cab), max. - min. 3042 - 2705 3267 - 2819
D. Max. overall width 2550
E. Max. - min. ground clearance (under
swinging drawbar support)
373 - 606 357 - 682
Min. weight (with full tank, without
counterweight steel wheels)
6154 6266 6302 6772 6772 6930
C. and E.: Dimensions vary according to tyre assembly.
Rear axle Front axle
ML 130 ML 160 20.19 20.22 20.29 20.43
F. Distance between flanges:
Shaft Ø 95:
-
1716
-
1840
1800 1900
G. Stud distance: 275 275 335
H. Centring diameter: 220.2 220.8 280
I. Stud length:
Wheel with steel hub:
Wheel with cast iron hub:
41 (1.61)
66
36*
-
40
-
40
-
J. Stud or screw diameter: M22x1.5 M18x1.5 M22x1.5
K. Number of studs or screws: 8 8 10
*Front axle not suspended
Z3A-1043-09-04
B
A
C
D
E
H
G
I
J
K
Z2-089
Fig. 2
