4 . MAINTENANCE AND ADJUSTMENTS
4.35
Challenger MT500B EU
4
It is welded to the frame of the swinging drawbar and has
a safety retaining latch.
Maximum vertical load: 3,000 kg
4.17.4 - Roller type swinging drawbar
This drawbar is used with very heavy trailed implements. It
makes sharp turns at the headland easier, by allowing the
drawbar to swing with the implement.
4.17.5 - 4-wheel trailer clevis hitch - Easy adjustment
type

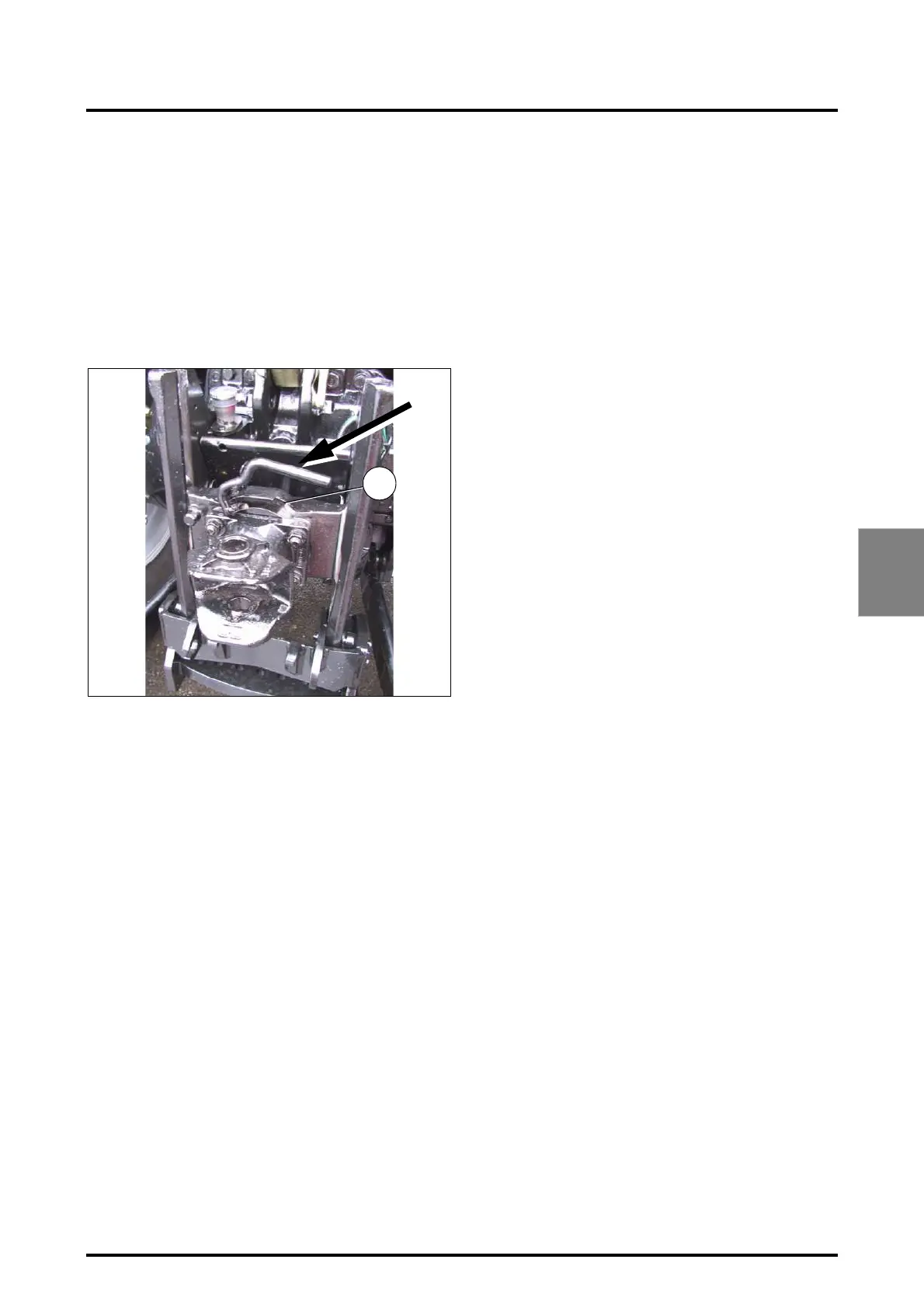

Fig. 72: To modify the clevis height, turn the handle to the
left and raise or lower the clevis between the notches.
To lock the clevis, reposition the handle until the safety
mechanism engages in notch A.
Maximum vertical load at hitch: 2,000 Kg
Fig. 72
CE-010 -01-05
A
