3 . INSTRUMENTS AND CONTROLS
3.16
Challenger MT500B EU

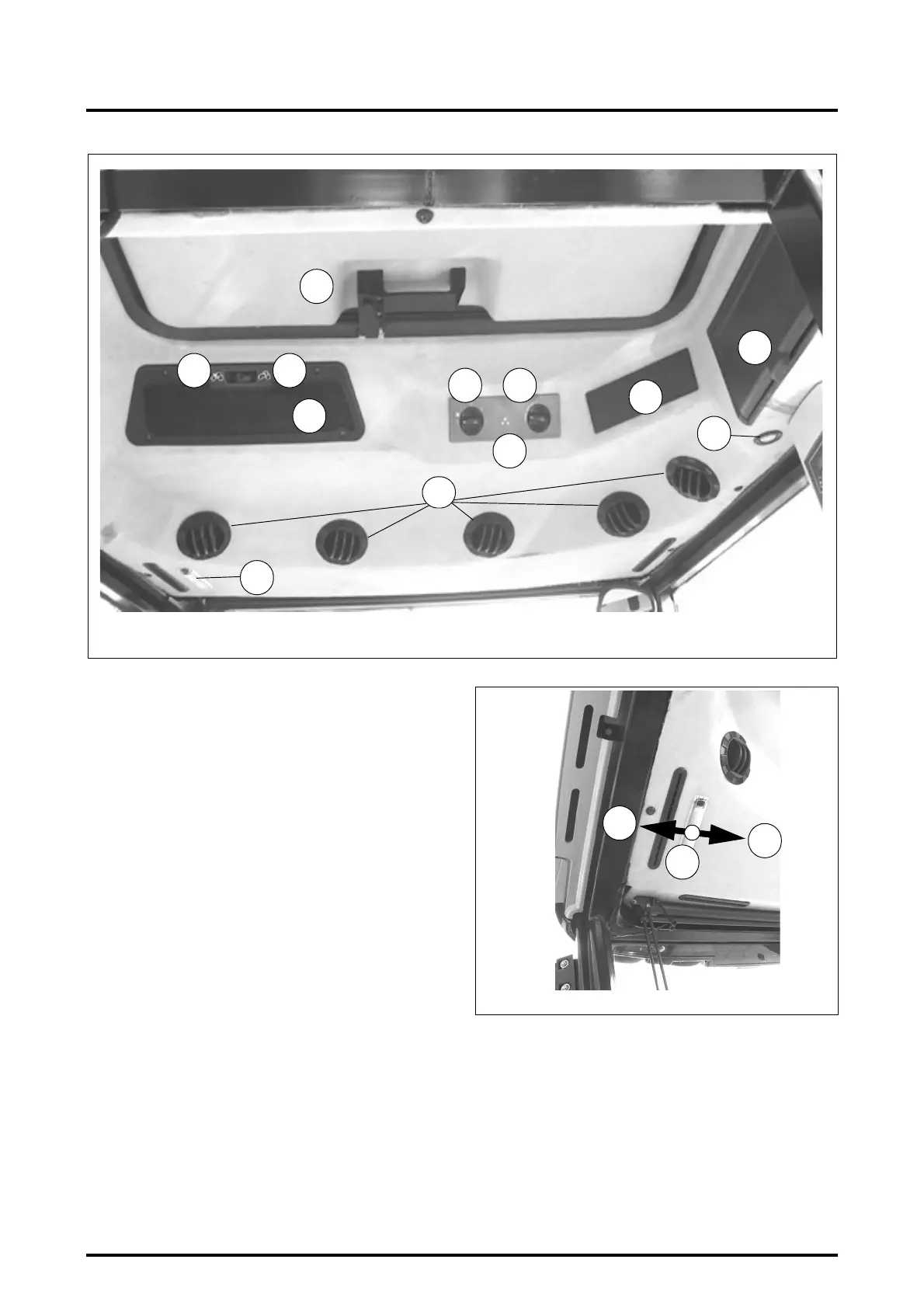

3.10 - UPPER CONSOLE
(Fig. 24)
1. Interior light (Fig. 25).
By rotating the 3-position switch:
0 - off position.
1 - light comes on when opening the left-hand door.
2 - permanently on.
2. Adjustable ventilation grille (depending on model).
A: Outside air intake
B: Recycling
3. 4-speed ventilator/heater fan control (if fitted).
4. Heater controls:
Blue = cold
Red = warm
5. Automatic air conditioning system control (optional).
6. Radio (if fitted).
7. Drink storage compartment, which is cooled when the
tractor is equipped with air conditioning.
8. Adjustable air circulation vents.
9. Lighting of console.
10. Roof hatch.
Z2-425-05-03
Fig. 24
3
6
1
7
2
10
8
9
4
5
A
B
0
Fig. 25
Z2-426-05-03
1
2
