4 . MAINTENANCE AND ADJUSTMENTS
4.33
Challenger MT500B EU
4
4.16.5 - Stabilisers
Stabilisers are used to limit the lateral movement of the
lower links.
The front stabiliser support has only one possible position
(Fig. 66).
4.16.6 - Adjustment procedures
Once the suitable position has been determined according
to implements used, adjustment of stabilizers should be
carried out as follows:
• Pos. 1: Screw or unscrew centre members to obtain
desired left-hand side/right-hand side sway.
• Pos. 2: Automatic no-sway at transport position.
NOTE: The side sway is to be adjusted with drawbars in
transport position.
A. Install Cat. 2 linkage drawbars.
B. Set lift rods length as required.
C. Set lower link travel as required Fig. 67.
D. Fully screw in stabilisers.
E. Start the engine.
F. According to models:
Tractors with "Lift/Lower" push buttons
- Set the control panel hitch "Lift/Lower" switch to
"Lift" then to "Neutral".
- Press "Lift" button until lower links reach highest
position.
- Stop the engine.
- Unscrew stabilisers (Fig. 68) until drawbars have no
lateral oscillation and are centralised.
- Screw both stabilisers in 1 turn.
Tractors without "Lift/Lower" push buttons
- Set the control panel hitch "lift/lower" switch to "neu-
tral" then to "lift".
- Stop the engine.
- Unscrew stabilisers (Fig. 68) until drawbars have no
lateral oscillation and are centralised.
- Screw both stabilisers in 1 turn.

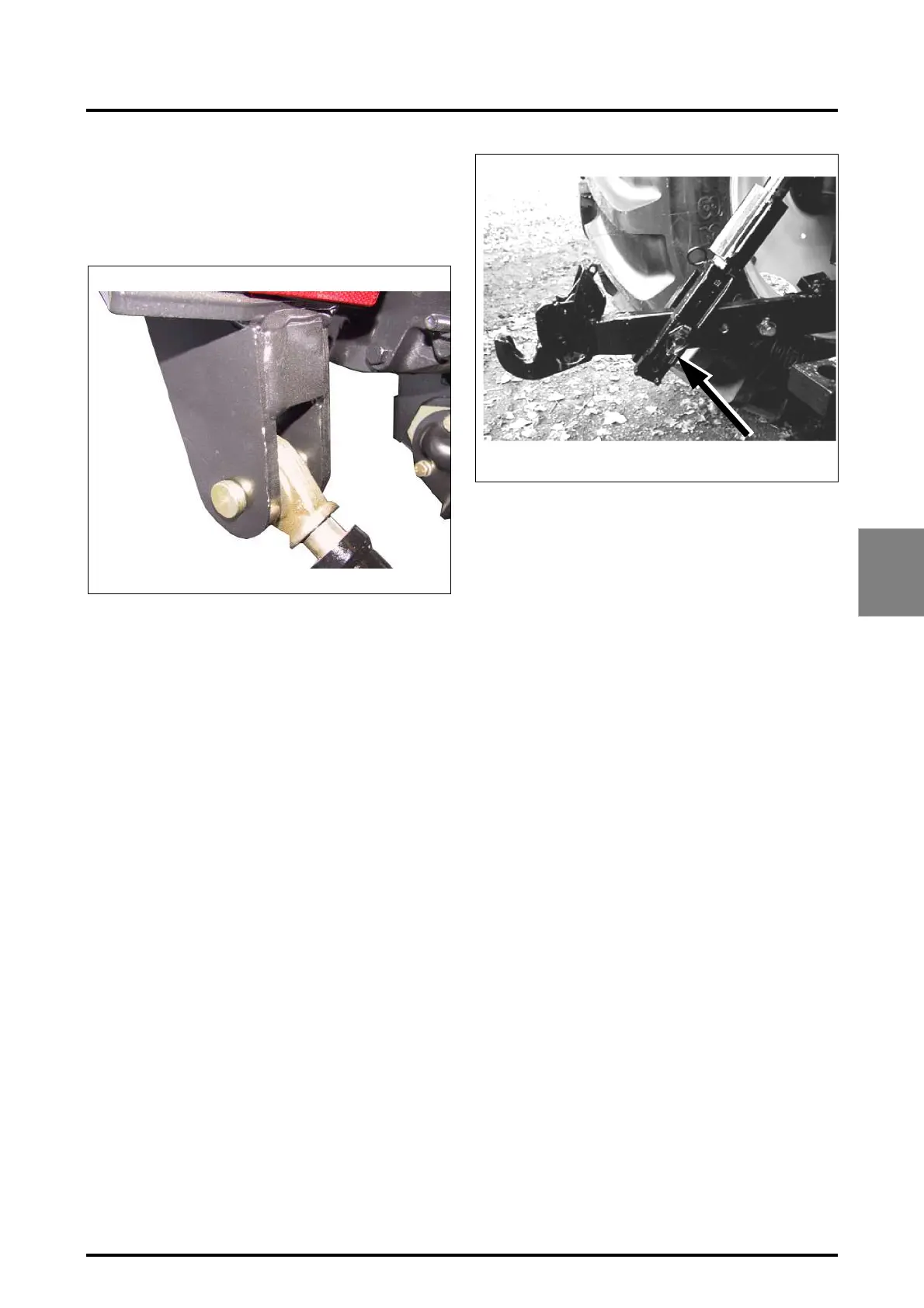

Fig. 66
Z2-619-03-04
V579
Fig. 67
