Setting reading parameters:
The time delay between each action can be increased or
decreased by a period of 0.2 to 3 seconds.
When the (Fig. 132) window is open, press the key
«
4
.
Pressing this key increases the time delay by 0.2 seconds.
7.11.4.3 - Modifying reading
In both reading modes, reading progress can be modified if
an action needs to be activated manually (Fig. 133):
- To manually move to the next action, press the
key
«
4
,
- To manually move to the previous action, press the
key «
5
,
- To move back to the start of a sequence, press the
key
«
6
.
7.11.4.4 - Displaying reading in the WORK application
When the window (Fig. 132) is open, press the key
«
3
. The
window (Fig. 134) is displayed.
NOTE: For the description of the window (Fig. 134), see
paragraph 7.4.6 (HEADLAND menu).
NOTE: If a sequence reading operation is active when
the window (Fig. 135) is open, the word HEADLAND
flashes red to alert the driver (25).
7.12 - EHS VALVES APPLICATION
7.12.1 - General
This application is used to set the hydraulic spool valve pa-
rameters (maximum 5). The DATATRONIC 3 allows the fol-
lowing to be performed for each spool valve:
- setting the ram rod retraction or extension flow rate,
- setting "Kick out" values (spool valve activation time),
- authorisation, or not, of spool valve floating position.

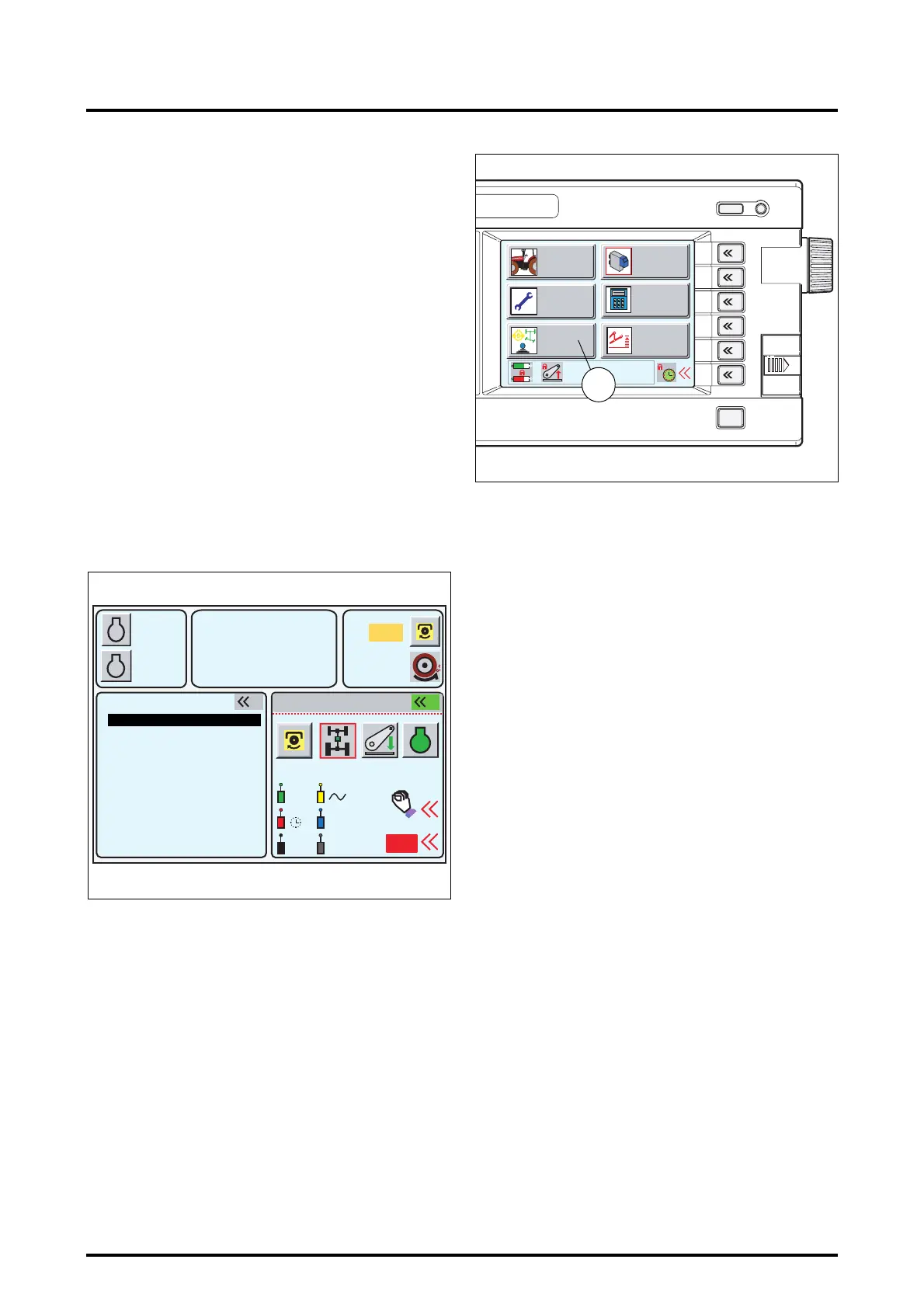

To start the EHS VALVES application (Fig. 136):
• Rotate the encoder (1) to the EHS VALVES application
and press the encoder once the active function is high-
lighted by red text and a red rectangle around the icon.
Or press the key
«
4
(2). The window (Fig. 137) is dis-
played.
• To exit an application, press the ESC key (3).
A
B
1000
2000
790
5.3
10% M
5%
540
2000
1
0+1 +3+2
A
OFF
2
Z3A-874-08-04-B
Fig. 134
HEADLAND
RPM
KPH
GEARBOX SETTINGS
ACTIVE MEMORY
HEADLAND
REAR DUAL CTRL
FRONT DUAL CTRL
TIC
EHS VALVES 1-4
Z3A-875-08-04
1
2
3
4
5
6
ESC
Fig. 135
WORK
SETTINGS
HEADLAND DUAL CTRL
MEMORIES
EHS VALVES
25
To Next Page
