Cisco Catalyst 6500 Series User Manual

9-29
Catalyst 6500 Series Switch and Cisco 7600 Series Router Firewall Services Module Configuration Guide
OL-6392-01
Chapter 9 Configuring Network Address Translation
Bypassing NAT
match, more exclusive nat statements are matched before general statements. The following example
shows the Telnet static statement, the more exclusive nat statement for initiated traffic from the Telnet
server, and the statement for other inside hosts, which uses a different global address.
FWSM/contexta(config)# static (inside,outside) tcp 10.1.2.14 telnet 10.1.1.15 telnet
netmask 255.255.255.255
FWSM/contexta(config)# nat (inside) 1 10.1.1.15 255.255.255.255
FWSM/contexta(config)# global (outside) 1 10.1.2.14
FWSM/contexta(config)# nat (inside) 2 10.1.1.0 255.255.255.0
FWSM/contexta(config)# global (outside) 2 10.1.2.78
To translate a well-known port (80) to another port (8080), enter the following command:
FWSM/contexta(config)# static (inside,outside) tcp 10.1.2.45 80 10.1.1.16 8080 netmask
255.255.255.255
Bypassing NAT
You can bypass NAT using identity NAT, static identity NAT, or NAT exemption. See the “Bypassing
NAT” section on page 9-7 for more information about these methods. This section includes the following
topics:
• Configuring Identity NAT, page 9-29
• Configuring Static Identity NAT, page 9-30
• Configuring NAT Exemption, page 9-31
Configuring Identity NAT
Identity NAT translates the local IP address to the same IP address, and only local traffic can originate
connections. (For same security level interfaces, hosts connected to any interface on the same security
level can initiate traffic.)

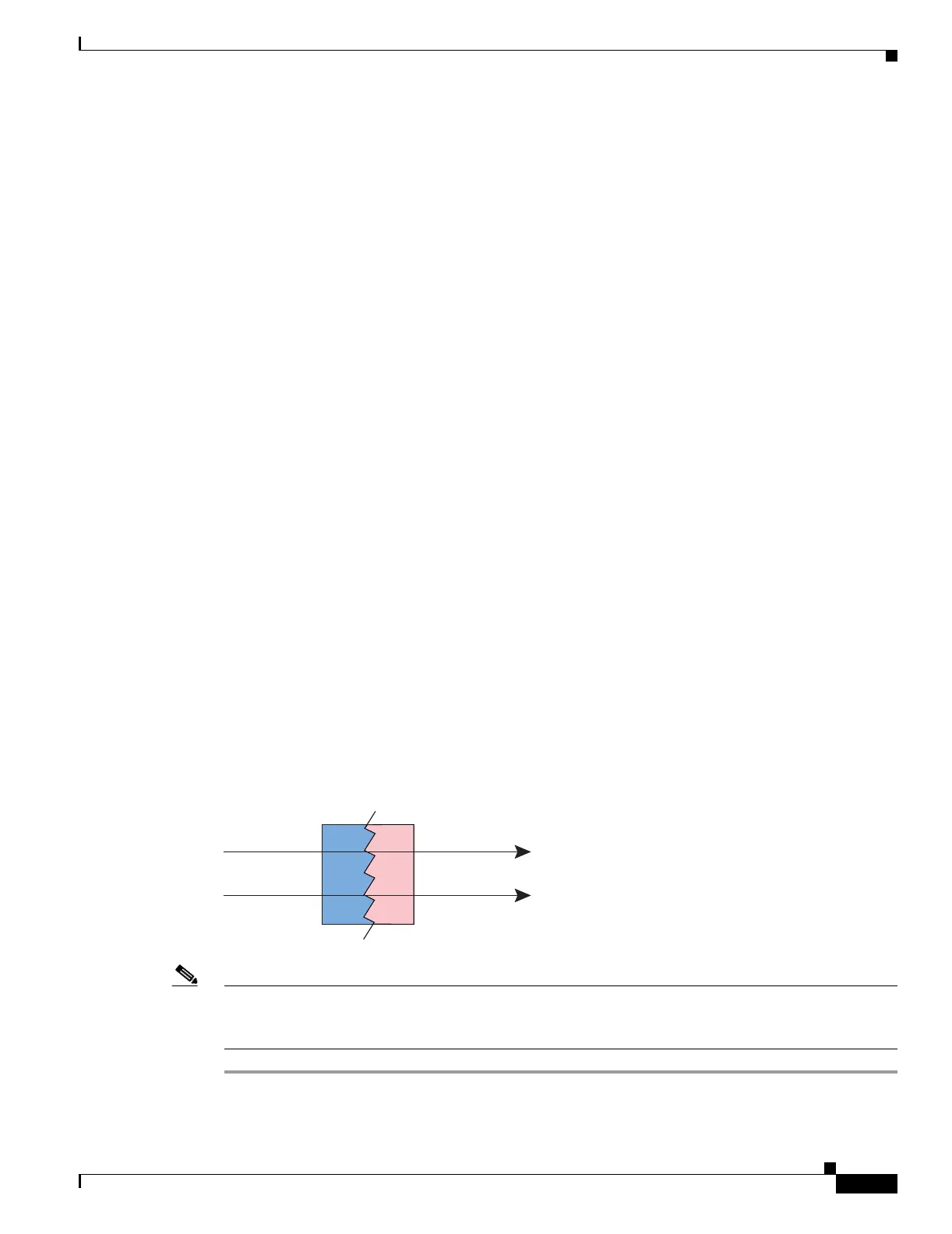

Figure 9-18 shows a typical identity NAT scenario.
Figure 9-18 Identity NAT
Note If you change the NAT configuration, and you do not want to wait for existing translations to time out
before the new NAT information is used, you can clear the translation table using the clear xlate
command. However, clearing the translation table disconnects all current connections.
To configure identity NAT, enter the following command:
FWSM/contexta(config)# nat ( local_interface ) 0 local_ip [ mask [dns] [outside |
[norandomseq] [[tcp]
tcp_max_conns [ emb_limit ]] [udp udp_max_conns ]]]
209.165.201.1 209.165.201.1
Inside
FWSM
Outside
209.165.201.2 209.165.201.2
114404
