Chapter 17 Monitoring and Troubleshooting the Firewall Services Module
Troubleshooting the Firewall Services Module
The following example shows a successful ping from an external host (209.165.201.2) to the FWSM
outside interface (209.165.201.1):
FWSM/contexta(config)# debug icmp trace
Inbound ICMP echo reply (len 32 id 1 seq 256) 209.165.201.1 > 209.165.201.2
Outbound ICMP echo request (len 32 id 1 seq 512) 209.165.201.2 > 209.165.201.1
Inbound ICMP echo reply (len 32 id 1 seq 512) 209.165.201.1 > 209.165.201.2
Outbound ICMP echo request (len 32 id 1 seq 768) 209.165.201.2 > 209.165.201.1
Inbound ICMP echo reply (len 32 id 1 seq 768) 209.165.201.1 > 209.165.201.2
Outbound ICMP echo request (len 32 id 1 seq 1024) 209.165.201.2 > 209.165.201.1
Inbound ICMP echo reply (len 32 id 1 seq 1024) 209.165.201.1 > 209.165.201.2
The above example shows the ICMP packet length (32 bytes), the ICMP packet identifier (1), and the
ICMP sequence number (the ICMP sequence number starts at 0 and is incremented each time a request
is sent).
Pinging FWSM Interfaces
To test that the FWSM interfaces are up and running and that the FWSM and connected routers are
routing correctly, you can ping the FWSM interfaces. To ping the FWSM interfaces, follow these steps:
Step 1 Create a sketch of your single mode FWSM or security context showing the interface names, security
levels, and IP addresses. The sketch should also include any directly connected routers, and a host on the
other side of the router from which you will ping the FWSM. You will use this information for this
procedure as well as the procedure in the “Pinging Through the FWSM” section on page 17-7. (See
Figure 17-1.)

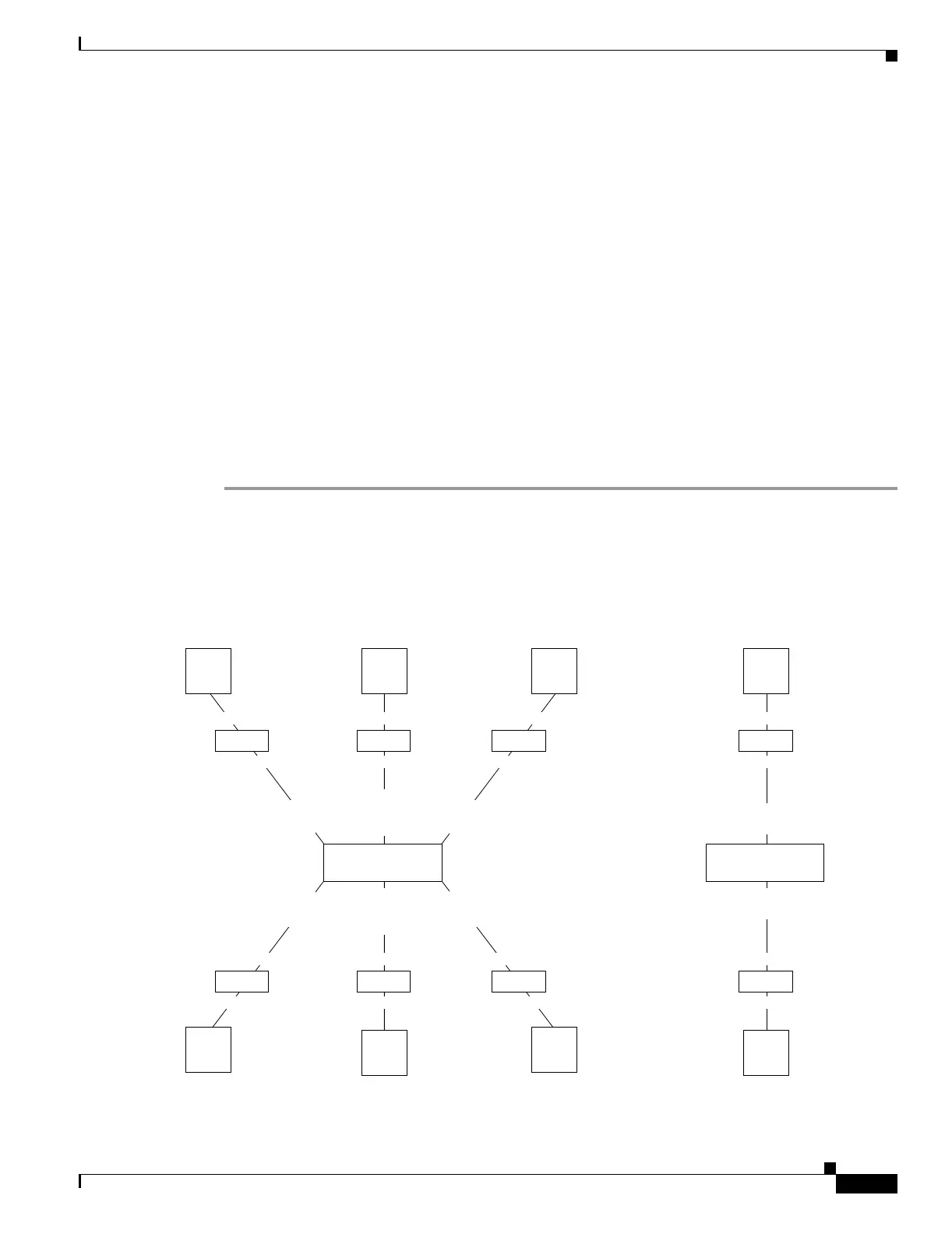

Figure 17-1 Network Sketch with Interfaces, Routers, and Hosts
Routed FWSM
Router
Host
10.1.1.56 10.1.3.6209.265.200.230
10.1.2.90 10.1.4.6710.1.0.34
209.165.201.24
10.1.1.5
Host
Host
Host
Host
Host
Transp. FWSM
10.1.0.3
Host
Host
10.1.1.2
192.168.1.2
Router
209.265.200.226
209.165.201.2
Router
10.1.3.2
192.168.3.2
Router
192.168.2.2
10.1.2.2
Router
192.168.0.2
10.1.0.2
Router
192.168.4.2
10.1.4.2
dmz1
192.168.1.1
security20
outside
209.165.201.1
security
inside
192.168.0.1
security100
Router
209.165.201.1
10.1.0.1
Router
10.1.0.2
10.1.1.1
outside
security
inside
security100
dmz2
192.168.2.1
security40
dmz3
192.168.3.1
security60
dmz4
192.168.4.1
security80
104680
