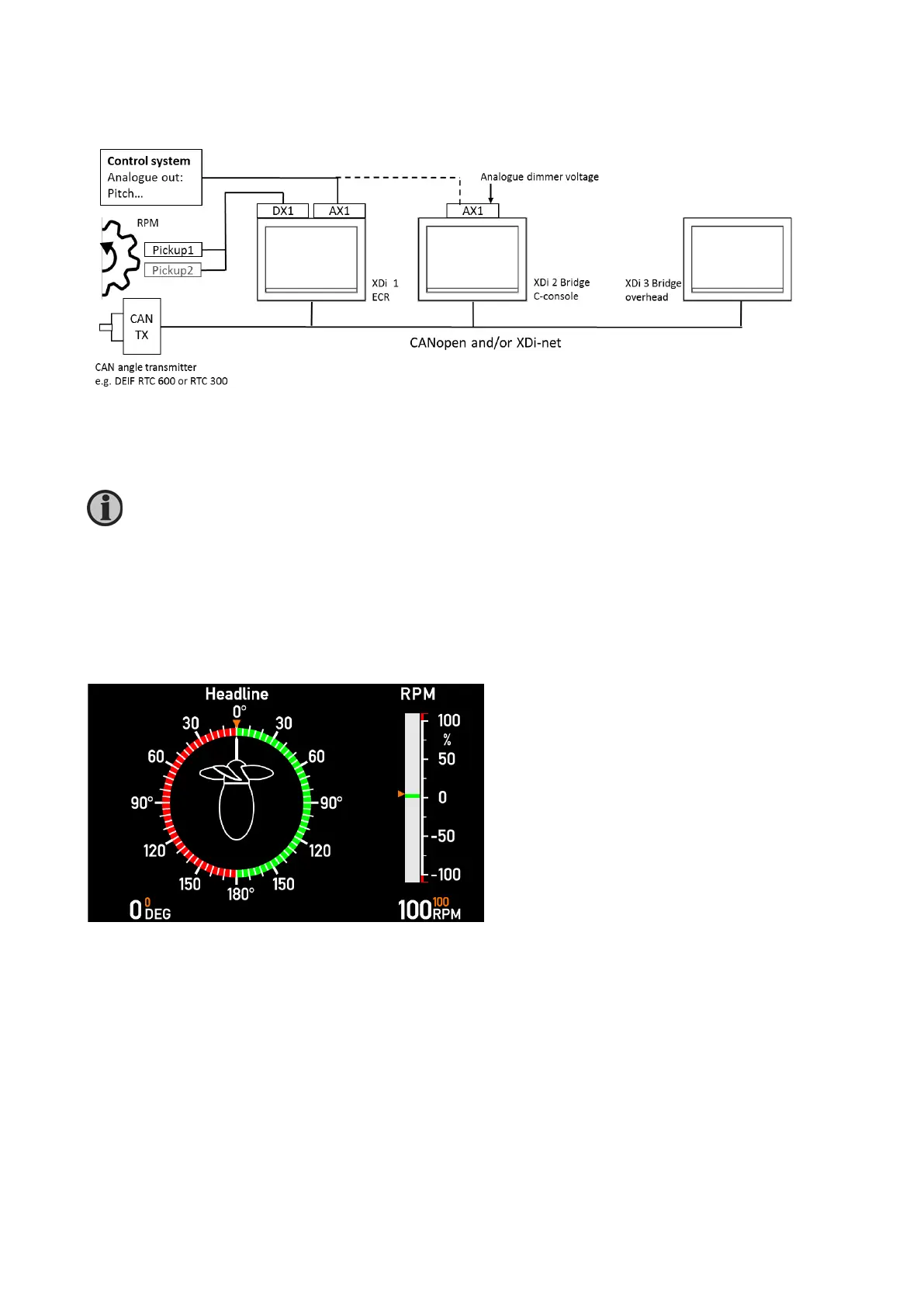

13.4 Application 4 – azimuth, RPM pickup analogue system using XDi-net
Select a different NodeID for each of the 3 XDi indicators, and make sure that it is not already used by another
CAN device on the bus.
13.4.1 Azimuth and RPM indicator system with set point
This is the system above configured for azimuth angle and RPM/RPN% and with all set point data presented.
In this example, it is VI007 Pushing azimuth type with dynamic azimuth pointer and indicating +/- RPM/RPM%.
(Orange set points can be disabled from menu).
XDi units in this system are all multi-versions, but if there is no need for set point (orange), the Dual version can be
used instead.
If you do not want set point (commanded value) data to be presented on the selected virtual indicator,
you must select “Visible: OFF” in the installation menu “Edit virtual indicator/indicators”.
