3.6 Menu structure
The XDi wizard and menu system are operated by 4 push-buttons placed beneath the display. The buttons are
used to set up the product during installation. After the XDi-D or -M is set up, the buttons are normally hidden away
behind the front frame, and they are not used during daily operation. (See also front button option/accessory
below).

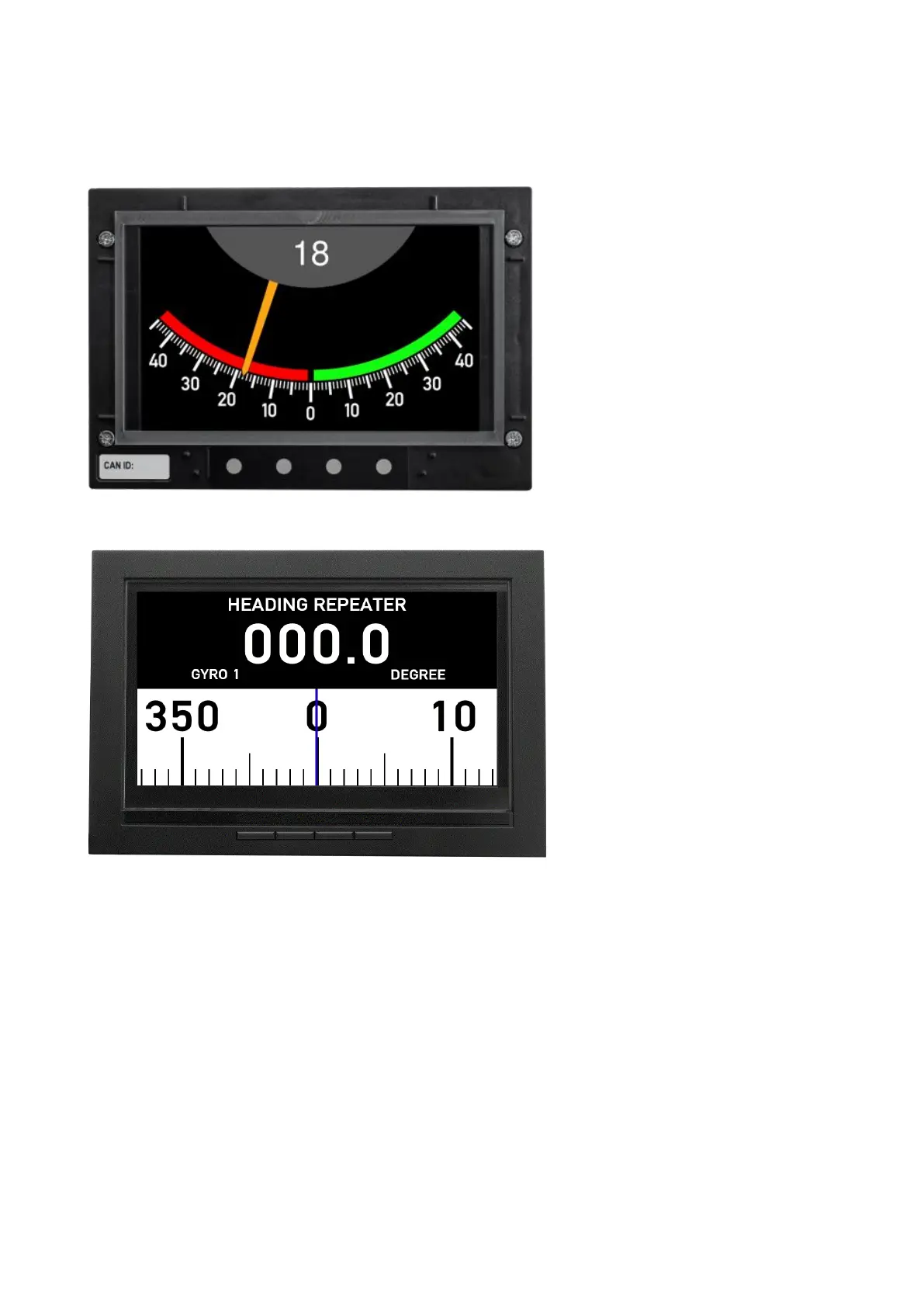

Fig. 4.1 XDi 144 D or M when the front frame is removed – the 4 push-buttons are available
Fig. 4.2 XDi 192 N with the 4 push-buttons available on front
The 4 push-buttons on XDi-N are available on the front frame and are also used for daily operation such as:
toggling between screens, dimming up/down and quick access to user menu.
A front frame with 4 push-buttons is also available for XDi-D and XDi-M. It can be ordered preinstalled as an option
or ordered as an accessory kit to replace the standard front frame on XDi-D or XDi-M. This option will make
dimming up/down available from the front buttons.
Note: This function is only available on XDi with platform 2 software and in some cases, it may require a new or
modified product profile in your custom library, to get support for dimming from front buttons.
