The digital dimmer uses both inputs as an input pair, making it possible to change the dimmer level up or down by
activating the input by a connected push-button contact.
The function has 2 modes:
A. Dimmer up/down, input 1 up and input 2 down.
B. Dimmer up/down, but with colour shift when input 1 and 2 are activated simultaneously.

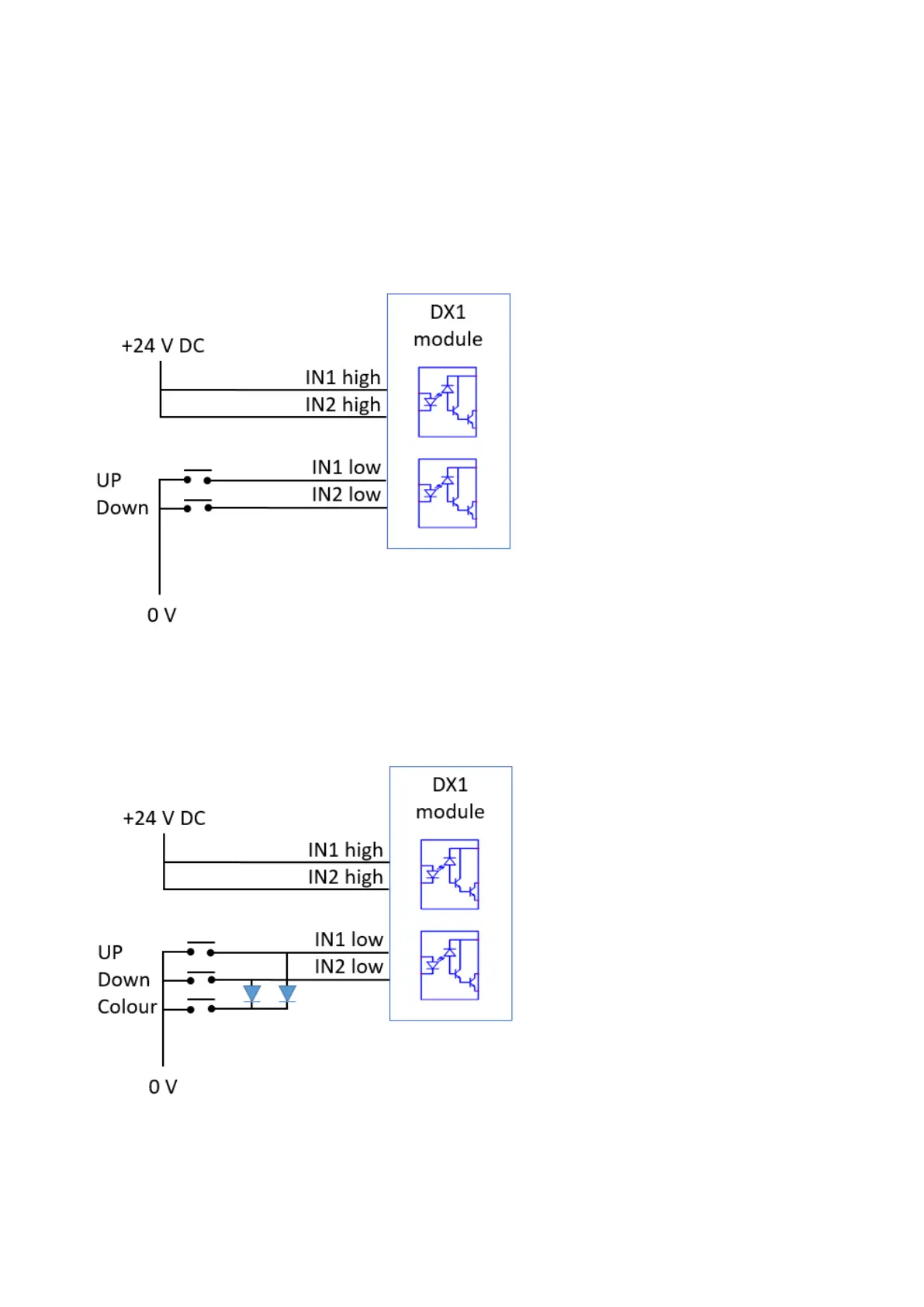

5.7.4.1 Connection of 2 push-button dimmer controls (Mode A or B):
This connection can be used in both dimmer modes.
Mode A: Dim up/down. Day/night colour shift can be automatic at a defined dimmer level.
Mode B: Dim up/down and make a colour shift by a simultaneous push on both push-buttons.
5.7.4.2 Connection of 3 push-button dimmer/colour controls (Mode B):
This configuration is used for digital dimmer mode B, where there are 3 push-buttons for: Up, Down and Colour
shift.
5.7.5 Relay outputs
The relay function makes it possible to design customised virtual indicators with a warning or control function.
The two relay outputs can be individually configured to serve the functions described in this chapter.
