Hard drive indicator codes
Each hard drive carrier has an activity LED indicator and a status LED indicator. The indicators provide information about the current
status of the hard drive. The activity LED indicator indicates whether the hard drive is currently in use or not. The status LED indicator
indicates the power condition of the drive.
Hard drive indicators
NOTE: LED status or activity indicators will only work with a backplane with each carriers shown below.

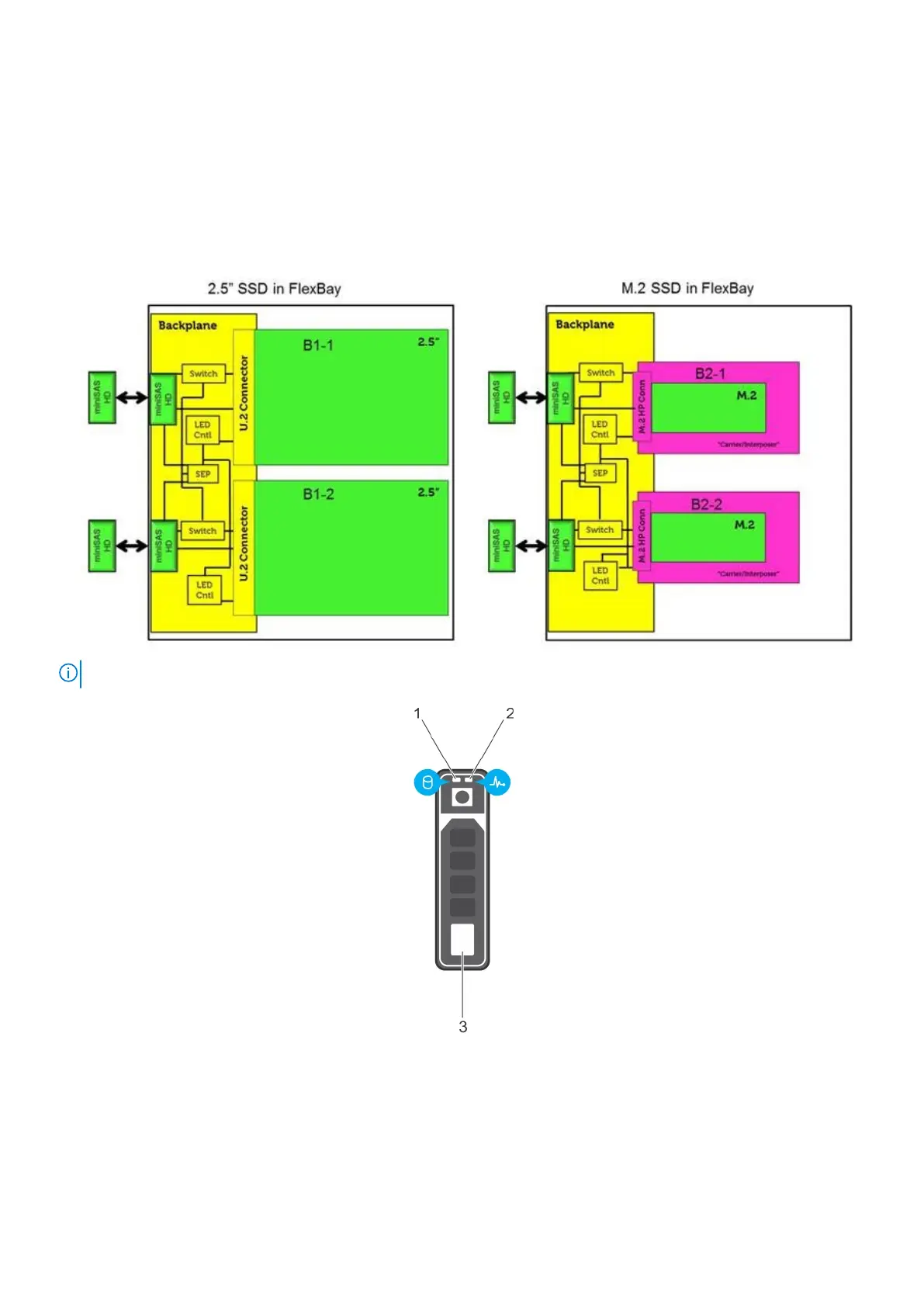

Figure 2. Hard drive indicators
1. hard drive activity LED indicator
2. hard drive status LED indicator
3. hard drive
