4. Install the side cover
5. Follow the procedure in After working inside your computer
System board
Removing system board
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. side cover
b. air shroud
c. GPU
d. memory module
e. system fan
f. rear system fan
g. PHM
h. PCIe card holder
3. To remove the system board:

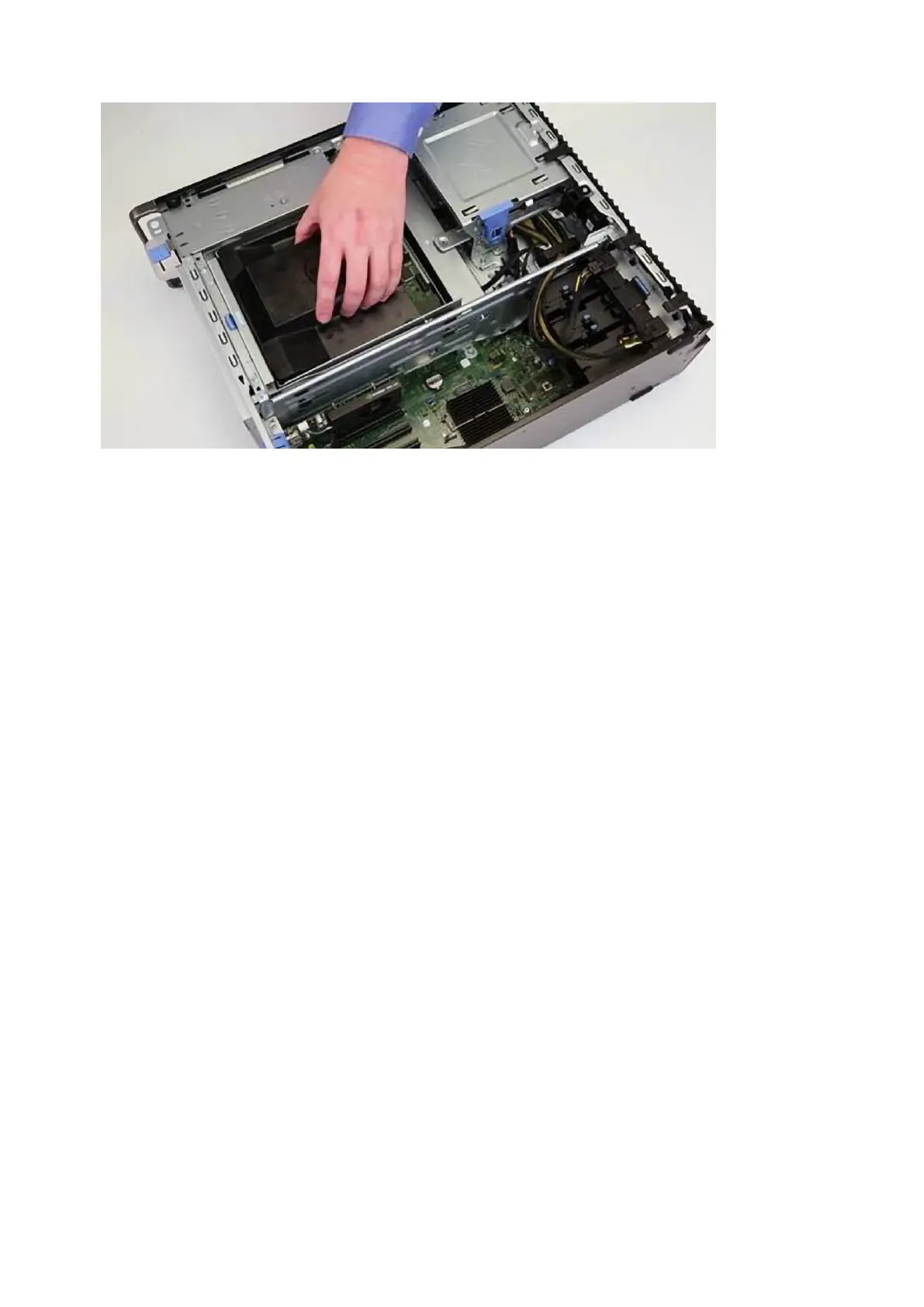

a. Pull and remove the bracket [1] from the system board.
b. To remove the system fan fixed bracket, remove the screw [2] that secure the fixed bracket to the system board.
c. Lift the system fan fixed bracket from the system board [3].
82
Removing and installing components
To Next Page
