PCIe holder
Removing PCIe holder
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. side cover
b. graphical processing unit(GPU)

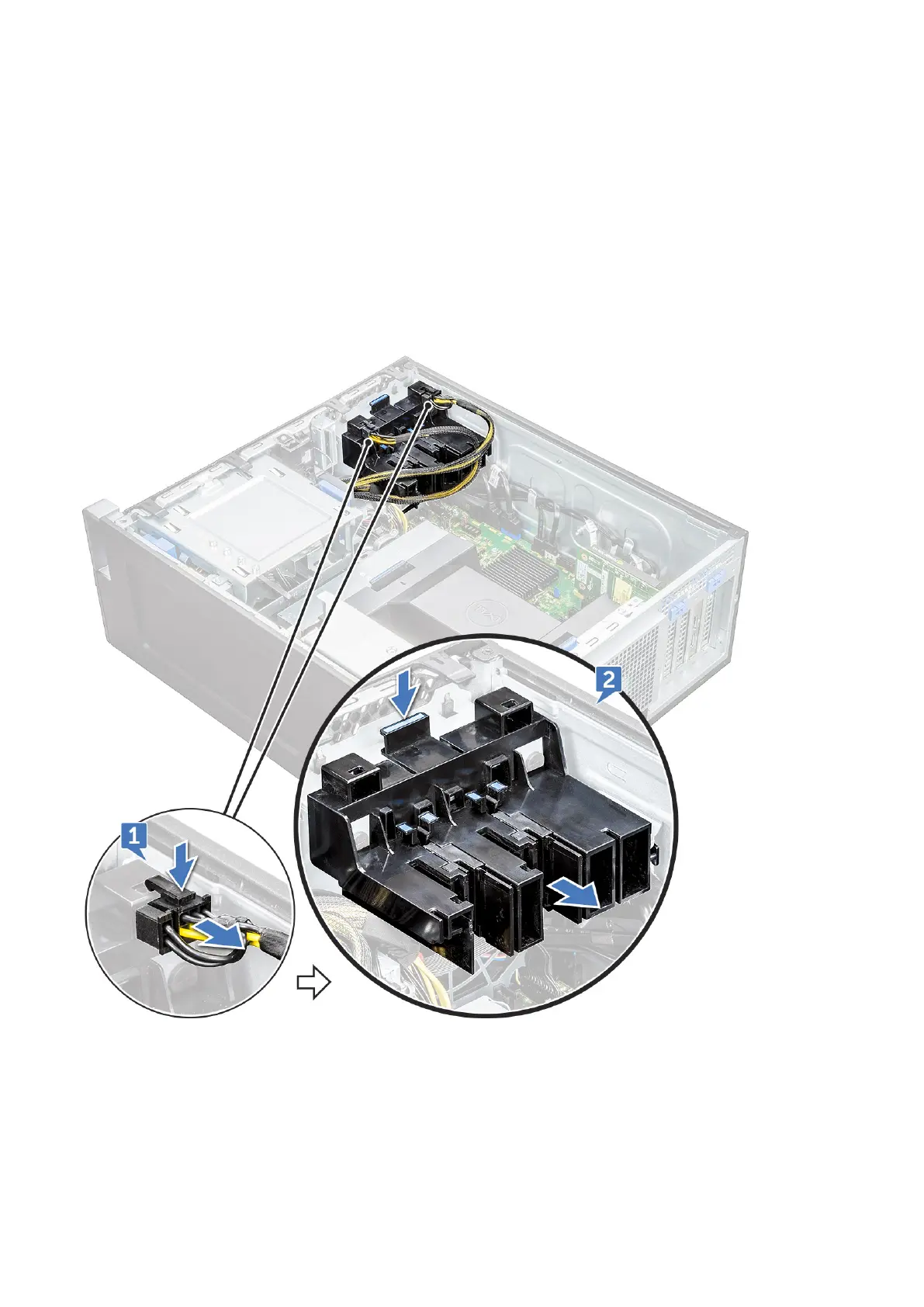

3. To remove the PCIe holder:
a. Disconnect the two power cables from the cable slot in the PCIe holder [1].
b. Press the PCIe holder securing clip and slide the holder [2] out of the chassis.
Installing the PCIe holder
1. Align and place the PCIe holder to the system chassis.
2. Press the holder back until it clicks to the system.
3. Connect the two power cables to the cable slots in the holder.
4. Install the:
Removing and installing components
57
