Air shroud
Removing the air shroud
1. Follow the procedure in Before working inside your computer.
2. Remove the side cover
3. To remove the air shroud:

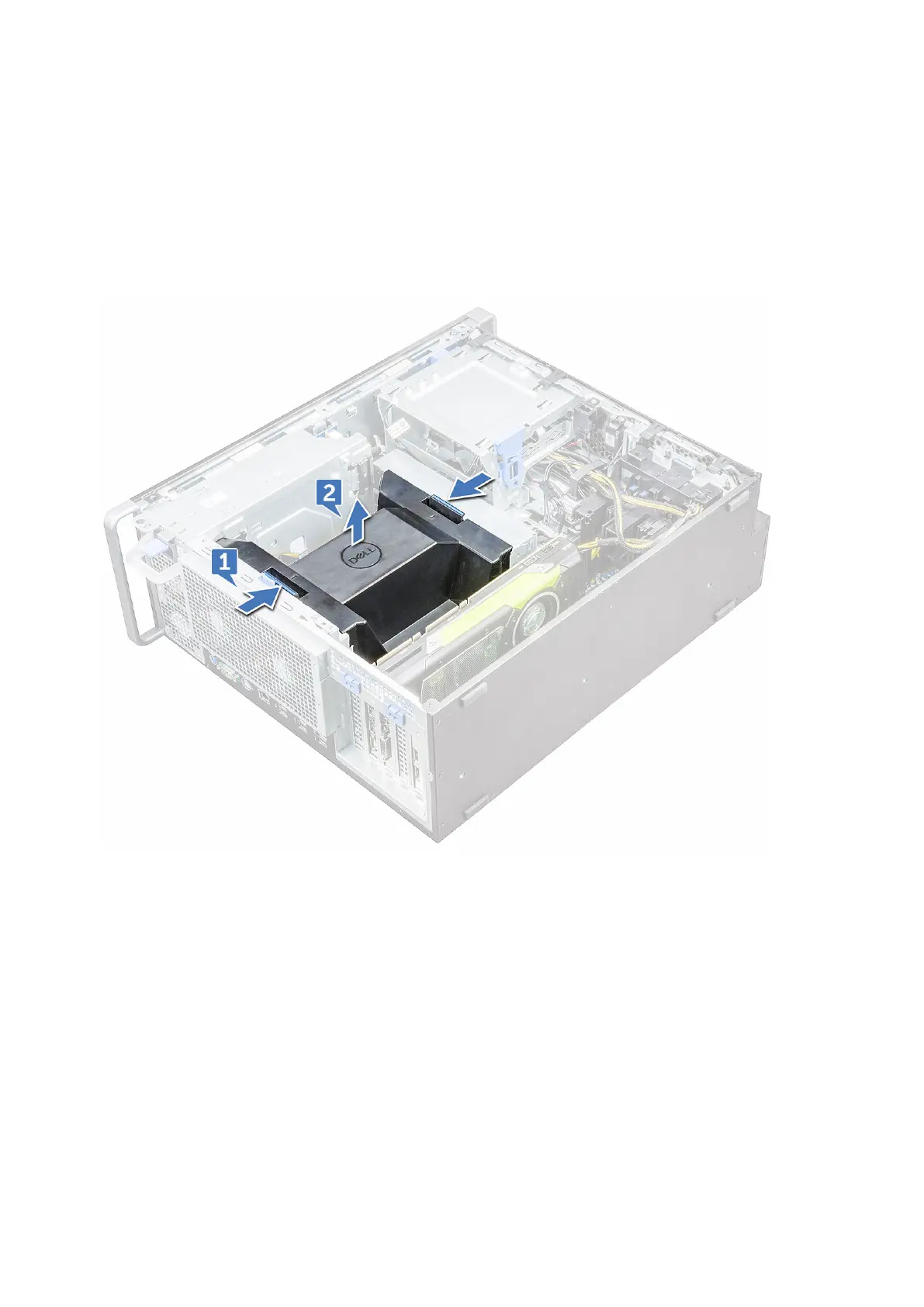

a. Holding the shroud at both the ends, press the tabs[1] and then lift the shroud[2] from the system.
Installing the air shroud
1. Place the shroud into its position and make sure that the tab fits into the system.
2. Align the shroud to its locking tab.
3. Press down the shroud until it clicks into place.
4. Install the side cover.
5. Follow the procedure in After working inside your computer.
Memory
Removing the memory module
1. Follow the procedure in Before working inside your computer.
2. Remove the following:
Removing and installing components
49
