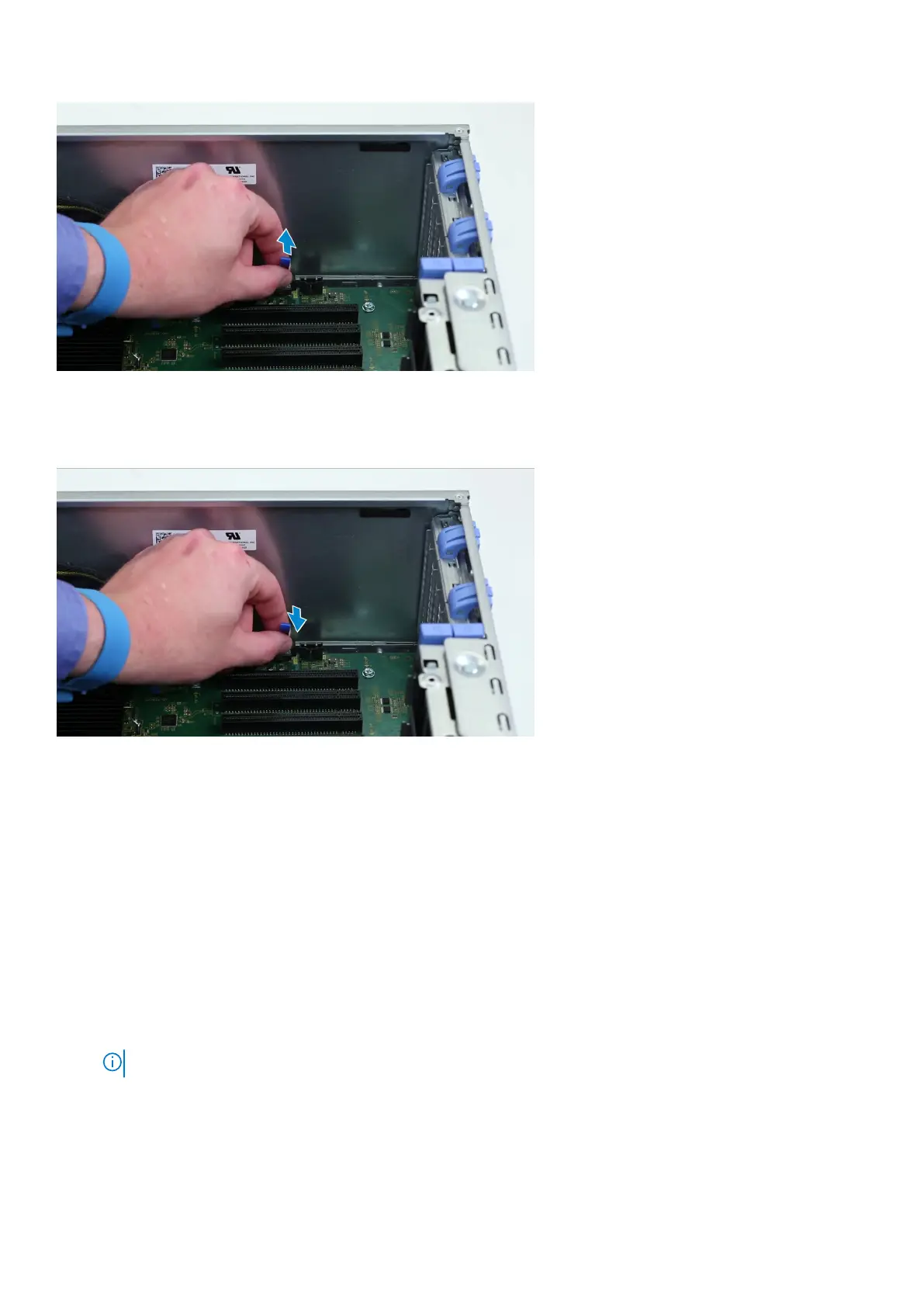

Installing the VROC module
Plug-in the VROC module to the system board.
Intrusion switch
Removing the Intrusion switch
1. Follow the procedure in Before working inside your computer.
2. Remove the:
a. side cover
b. front bezel
c. 5.25 inch ODD bracket
3. To remove the intrusion switch:
a. Disconnect the intrusion cable [1] from the I/O module.
b. Remove the screw [2] that secures the intrusion switch to the chassis.
c. Lift the intrusion switch and remove it from the chassis.
NOTE: The system will not power on without the intrusion switch installed.
46 Removing and installing components
